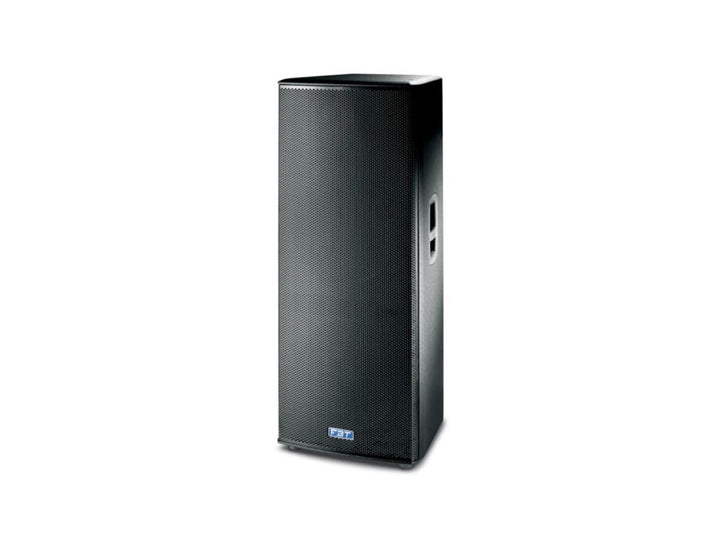

MITUS 215A Processed Active Speaker - Dual 15"

The FBT MITUS 215A two-way bi-amplified speaker system shall incorporate 2 x 15” B&C neodymium woofer with 3” voice coil and 2” exit B&C neodymium driver with 2.5” voice coil coupled to a rotatable 60° x 40° horn; thanks to the rotatable HF horn it is possible to create horizontal arrays of 2 enclosures for a total coverage of 100°.

The FBT MITUS 215A shall meet the following performance criteria: Frequency response of 42Hz to 20kHz, Maximum SPL of 136dB, 1100W RMS + 250W RMS class D amplifiers.

The FBT MITUS 215A provides a DSP with 6 EQ presets. The FBT MITUS 215A feature 0.59" baltic birch plywood construction covered in a scratch & scuff resistant black finish; the front shall be protected by a heavy duty metal grille with anti-resonance spacers and exclusive synthetic cloth to protect the drivers.

The control panel provides XLR input & link, level, preset, delay, HP filter.

The 12 M10 anchoring points built into the cabinet allow the FBT MITUS 215Aspeaker to be surface mounted on ceilings.

• 2-way, bi-amplified, bass-reflex design
• 2 x 380mm (15”) B&C neodymium magnet woofer with 75mm (3”) voice coil
• 50mm (2”) exit B&C HF driver with 64mm (2.5’’) voice coil
• Frequency response from 42Hz to 20kHz
• Class D built-in amplifiers, 1100Wrms to the LF and 250Wrms Class G to the HF
• Switch mode power supply
• DSP with 6 EQ presets
• 60°H x 40°V rotatable HF horn
• Birch plywood enclosure, scratch resistant black paint finish
• Control panel with XLR input and link, volume, presets, HP filter, ground-lift
• 12 x M10 fly points and two FBT design aluminum handles
• Ideal for live sound reinforcement applications and permanent installations

• Configuration: 2 Way
• Frequency response: 42Hz - 20kHz
• Low frequency woofer: 2x 15" (3" VC)
• High frequency driver: 1x 2" (2.5" VC)
• Maximum SPL cont/peak: 133dB / 136dB
• Dispersion: 60¬? H x 40¬? V
• Input impedance: 22kOhm
• Crossover frequency: 1.2kHz
• Input connector: XLR with Link Out
• Net Dimension (WxHxD): 493 x 1245 x 471mm
• Net Weight: 52.5kg
• Transport Dimension (WxHxD): 618 x 1355 x 610mm
• Transport Weight: 58kg
• AC Power requirements: 800 VA
• Built-in amplifier LF/HF: 1350w RMS
• Built-in amplifier peak LF/HF: 2700w
• Power cord: 5m PowerCon True1
