MITUS 210MA Processed Active Stage Monitor - Dual 10"

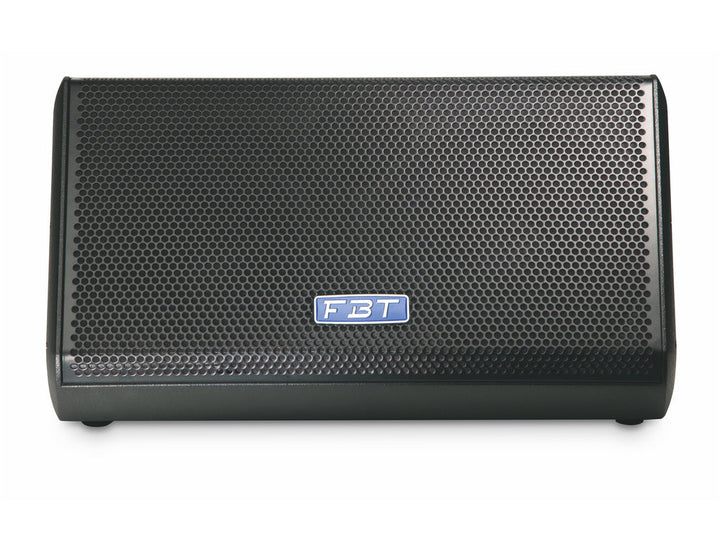

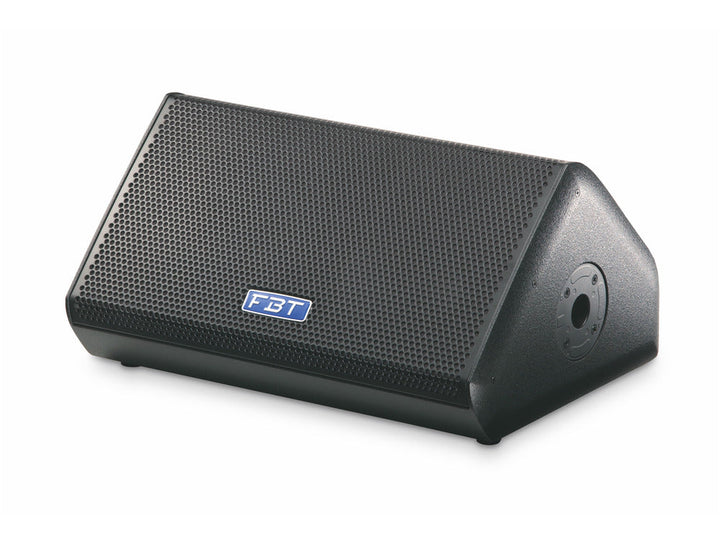

The FBT MITUS 210MA bi-amplified speaker feature 0.59" birch plywood construction; the front shall be protected by a heavy duty metal grille with anti-resonance spacers and exclusive synthetic cloth to protect the drivers and a rugged touring grade scratch resistant black paint finish protects the cabinet exterior.

The FBT MITUS 210MA is a two way coaxial design incorporating 2x 10" B&C custom neodymium magnet coaxial speaker with 2.5" voice coil and 1.4" exit titanium compression driver with 2.5" voice coil, a class D built-in amplifiers 600W RMS to the LF and 300W RMS to the HF with switch mode power supply.

The FBT MITUS 210MA provides a DSP with A/D-D/A low noise converters with 8 selectable presets.

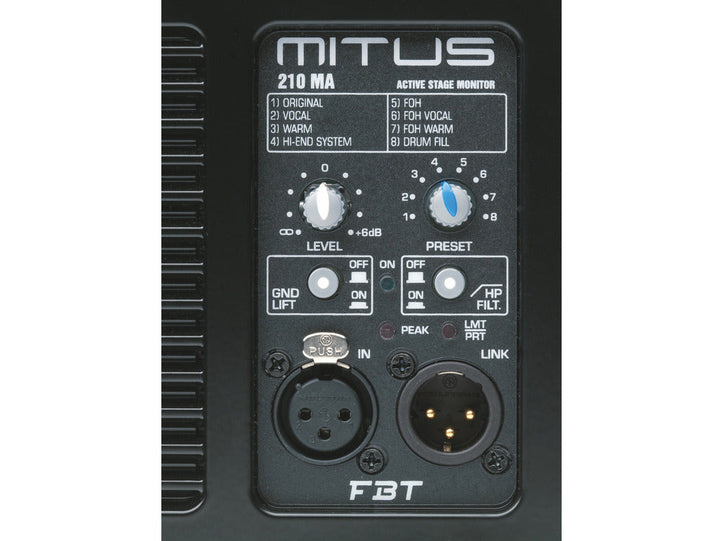

The FBT MITUS 210MA shall meet the following performance criteria: Frequency response of 60Hz to 20kHz, Maximum SPL of 132dB, Nominal impedance 8 Ohm LF / 8 Ohm HF. The control panel provides XLR «in&link», volume, preset, HP filter, GND lift switch.

A standard 1.38" speaker stand socket allows the FBT MITUS 210MAto be mounted on speaker stand.

• 2-way bi-amplified, bass-reflex design with coaxial driver
• 2 x 250 mm (2 x 10’’) B&C custom neodymium magnet speakers with 64 mm (2.5’’) voice coil, one of them is coaxial with 36 mm (1.4’’) exit titanium compression driver  and  64 mm (2.5’’) voice coil
• Frequency response from 60Hz to 20KHz
• Class D built-in amplifiers, 600WRMS to the LF and 300WRMS to the HF with switch mode power supply
• DSP with 8 eq presets
• Control panel with XLR input and link, volume, presets, HP-filter, ground-lift
• 70° conical dispersion
• 15 mm (5/8”) birch plywood enclosure, scratch resistant black paint finish
• 35 mm (1.38’’) stand socket and back side carrying handle
• Ideal for live sound stage monitoring applications, as well as a front of house main PA speaker
• Very lightweight, only 19Kg

• Configuration: 2 Way
• Frequency response: 60Hz - 20kHz
• Low frequency woofer: 2x 10" with 2.5" VC
• High frequency driver: 1x 1.4" with 2.5" VC
• Maximum SPL cont/peak: 127 / 134dB
• Dispersion: 70 x 70 conical (HxV)
• Input impedance: 22kohm
• Crossover frequency: 1.2 kHz
• Input connector: XLR with link out
• Net Dimension (WxHxD): 547 x 290 x 402mm
• Net Weight: 19kg
• Transport Dimension (WxHxD): 890 x 390 x 510m
• Transport Weight: 21.2kg
• AC Power requirements: 640VA
• Built-in amplifier LF/HF: 600/300w RMS
• Built-in amplifier peak LF/HF: 1200/600w
• Power cord: 5m PowerCon
