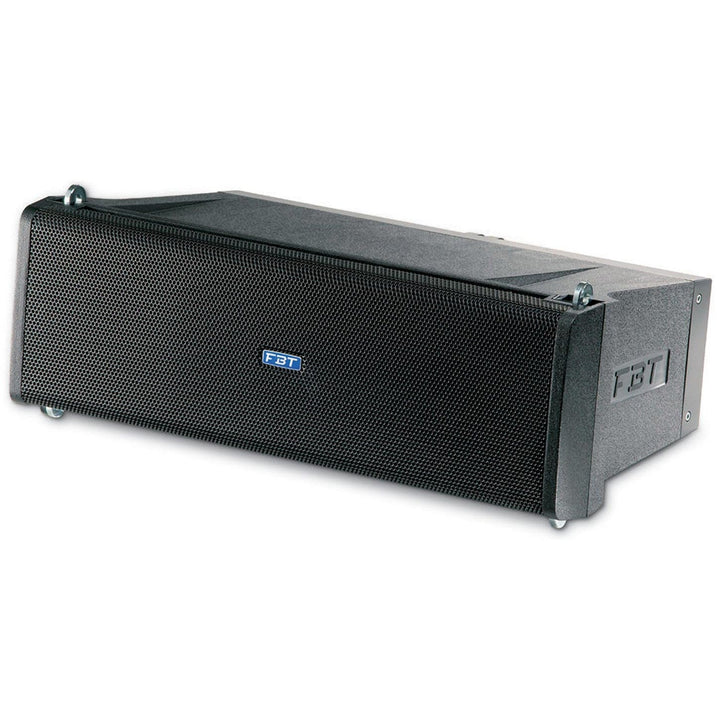

FB MITUS 206LA 2-Way Compact Active Line Array Speaker System

he FBT MITUS 206LA speaker features lightweight, yet rugged gas injected molded polypropilene cabinet construction.

The FBT MITUS 206LA is a two-way design incorporating 2 x 6.5” B&C neodymium woofers with1.7” voice coil and 1.4” exit B&C neodymium driver with 2.5” voice coil.

The modularity of the FBT MITUS 206LA makes it extremely flexible for a wide range of applications, from a small 2 cabinet P.A. system to an elaborate line array system consisting of up to 12 MITUS 206LAcabinets along with multiple FBT MITUS 212FSA subs for large concert events.

The FBT MITUS 206LA shall meet the following performance criteria: Frequency response of 68Hz to 20kHz, Maximum SPLof 134dB, class D amplifier module that provides 600W RMS to the LF and 300W RMS to the HF.

The waveguide, optimized by BEM finite element simulation, offers 100° horizontal dispersion; engineered to be perfectly integrated with the HF compression driver it allows the dispersion of a flat acoustic wave to over 18kHz.

The MITUS 206LA cabinets coupling hardware is internally integrated and allows the suspension of 12 arrays with a 10:1 safety factor.

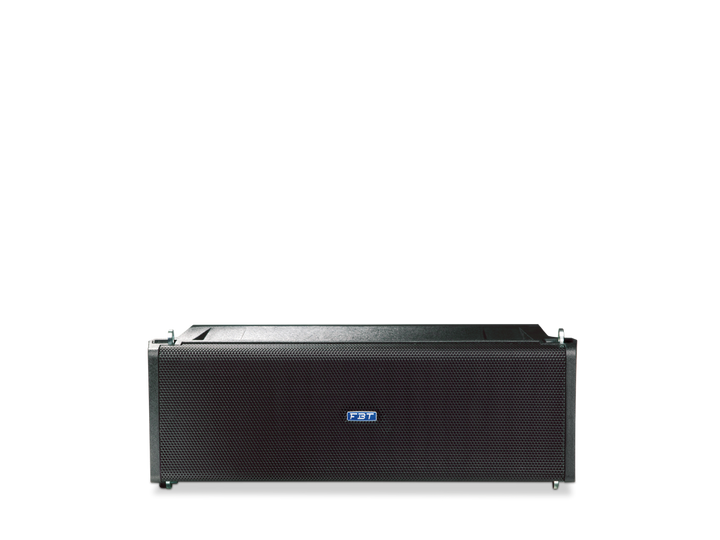

The front shall be protected by a heavy duty metal grille with anti-resonance spacers and exclusive synthetic cloth to protect the drivers.

The FBT MITUS 206LA provides a wide range of hardware accessories for flying and ground stacked configurations.

Features

• Compact 2-way, bi-amplified bass-reflex design
• 2 x 6.5’’ (165 mm) B&C neodymium woofers with 1.7’’ (44 mm) coil
• 1.4’’ (36 mm) exit B&C neodymium driver with 2.5’’ (64 mm) coil
• Frequency response from 68Hz to 20KHz
• Latest class D built-in amplifiers, 600Wrms to the LF and 300Wrms to the HF with switch mode power supply
• DSP on-board with 8 presets, +/- 5db HF level control for accurate amplitude shading

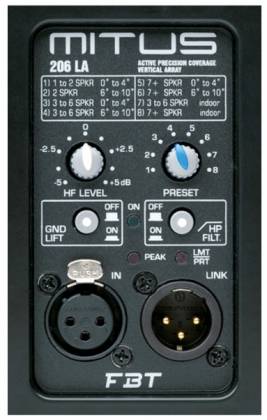

• Control panel with XLR input and link, volume, presets, HF level, HP-filter, ground-lift
• 100° horizontal waveguide with very low distortion and near flat wavefront up to 18Khz
• High impact polypropylene  gas-injected enclosure with integrated rigging hardware adjustable with 0° to 10° angle between cabinets at 2° step
• Ideal for small to medium sized application, from single pole mounted loudspeakers with 100°H x 10°V coverage to multiple cabinet full sized line array, the MITUS 206LA maybe used also in  outdoor applications where the system is not directly exposed to the elements
• Wide range of hardware accessories for flying and ground stacked configurations
• Very lightweight, only 14Kg

Specifications

• Configuration: 600/300w RMS
• Low frequency woofer: 2x 6.5" with 1.7" VC
• High frequency driver: 1x 1.4" with 2.5" VC
• Maximum SPL cont/peak: 125 / 134dB
• Dispersion: 100 x 10 max (Dependant upon no of elements - HxV)
• Input impedance: 22kohm
• Crossover frequency: 1.2kHz
• Input connector: XLR with Link out
• Net Dimension (WxHxD): 574 x 220 x 383mm
• Net Weight: 14kg
• Transport Dimension (WxHxD): 655 x 455 x 280mm
• Transport Weight: 15.7kg
• AC Power requirements: 640VA
• Built-in amplifier LF/HF: 1200/600w
• Built-in amplifier peak LF/HF: 68hz - 20kHz
• Power cord: 5M PowerCon
