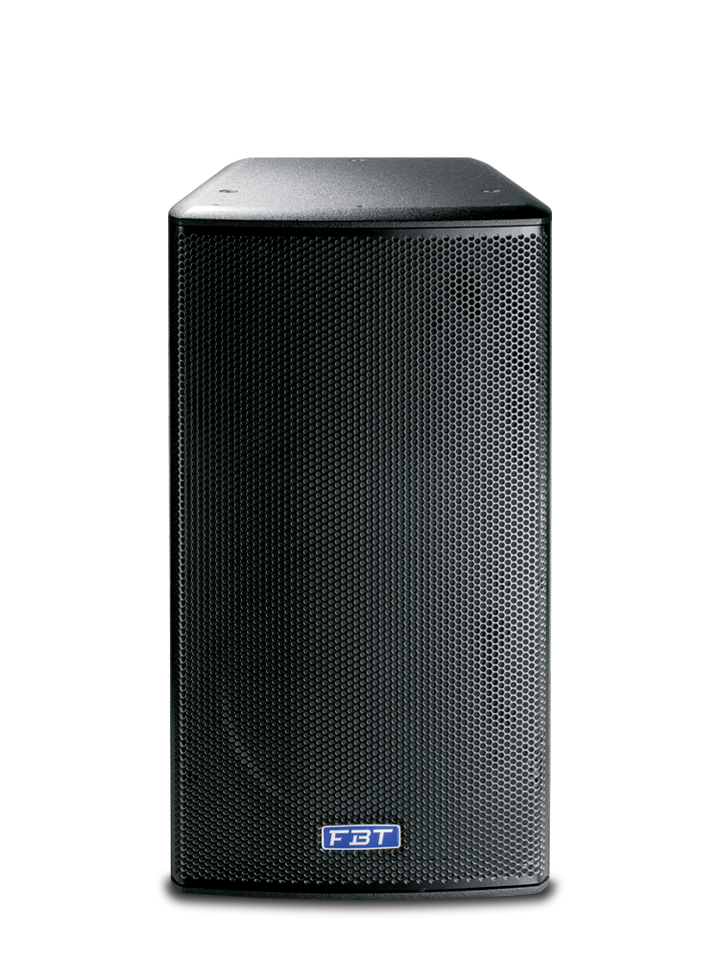

MITUS 152A 2-Way Procesed Active Speaker - 15"+2"

The FBT MITUS 152Atwo-way bi-amplified speaker system shall incorporate 1 x 15” B&C neodymium woofer with 3” voice coil and 2” exit B&C neodymium driver with 2.5” voice coil coupled to a rotatable 60° x 40° horn; thanks to the rotatable HF horn it is possible to create horizontal arrays of 2 enclosures for a total coverage of 100°.

The FBT MITUS 152A shall meet the following performance criteria: Frequency response of 45Hz to 20kHz, Maximum SPL of 136dB, 1100W RMS + 250W RMS class D amplifiers. The FBT MITUS 152Aprovides a DSP with 6 EQ presets.

The FBT MITUS 152A feature 0.59" baltic birch plywood construction covered in a scratch & scuff resistant black finish; the front shall be protected by a heavy duty metal grille with anti-resonance spacers and exclusive synthetic cloth to protect the drivers.The control panel provides XLR input & link, level, preset, delay, HP filter.

The 12 M10 anchoring points built into the cabinet allow the FBT MITUS 152A speaker to be surface mounted on ceilings and a standard 1.38" speaker stand socket allows the FBT MITUS 152Ato be mounted on speaker stands.

Features

• 2-way, bi-amplified, bass-reflex design
• 380mm (15”) B&C neodymium magnet woofer with 75mm (3”) voice coil
• 50mm (2”) exit B&C HF driver with 64mm (2.5’’) voice coil
• Frequency response from 45Hz to 20kHz
• Class D built-in amplifiers, 1100Wrms to the LF and 250Wrms Class G to the HF
• 60°H x 40°V rotatable HF horn
• 35mm (1.38’’) speaker stand socket
• Switch mode power supply
• DSP with 6 EQ presets
• Birch plywood enclosure, scratch resistant black paint finish

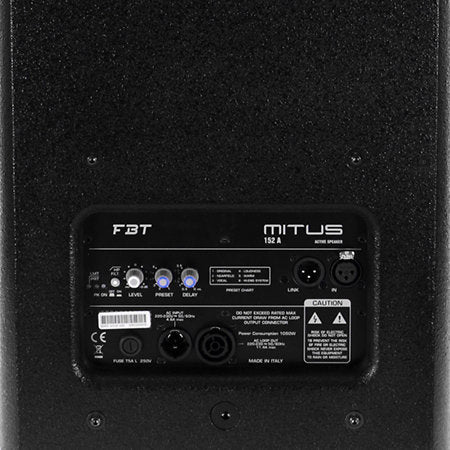

• Control panel with XLR input and link, volume, presets, HP filter, ground-lift
• 12 x M10 fly points and two FBT design aluminum handles
• Ideal for live sound reinforcement applications and permanent installations
• Very lightweight

Specifications

• Net Dimension (WxHxD): 425 x 805 x 421mm
• Net Weight: 36.5kg
• Transport Dimension (WxHxD): 550 x 915 x 560mm
• Transport Weight: 58kg
• Power cord: 5m PowerCon True1
