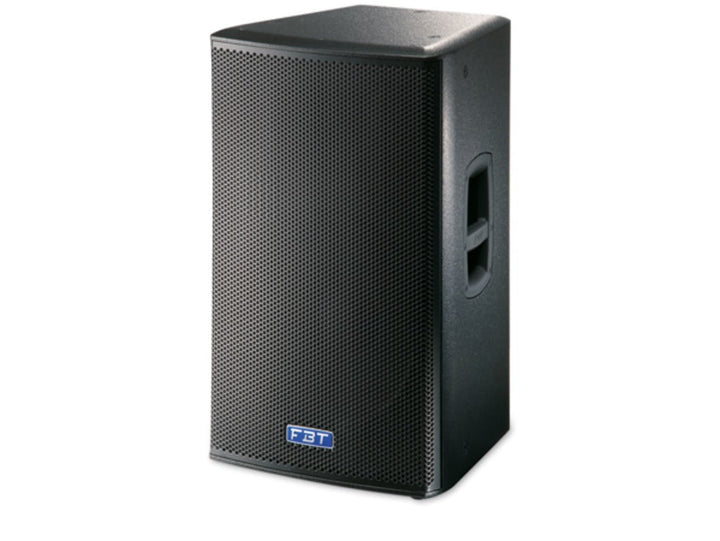

MITUS 115 Passive Reinforcement Speaker - 15"

The MITUS sound reinforcement series is the result of FBT's experience and passion for excellence. A comprehensive range of 2-way speakers for FOH applications, subwoofers, stage monitor and line arrays in passive and bi-amplified designs.

Whether in live or touring applications or in permanent installations, they will be appreciated by any musicians and professionals looking for the finest sound quality.

The whole MITUS series is equipped with:

-High quality B&C neodymium magnet woofers custom manufactured for FBT

-The latest generation of B&C compression drivers

-High efficiency class D power amp modules with switch mode power supplies fixed to a die-cast aluminum chassis

-DSP with A/D - D/A low noise converters

-Neutrik Powercon IN & LINK out power receptacles

-Awide range of accessories makes the MITUS range extremely flexible for live or permanent installations

-New aluminum die-cast carrying handles

-Heavy duty metal grille with anti-resonance spacers and exclusive synthetic cloth

• 2-way bass-reflex design
• Passive version, recommended amplifier of 800Wrms / 8ohm
• 380 mm (15”) B&C neodymium magnet woofer with 75 mm (3”) voice coil
• 25 mm (1”) exit B&C neodymium magnet HF driver with 44 mm (1.7’’) voice coil with 80°H x 50°V rotatable horn
• Frequency response from 50Hz to 18KHz
• Hi-grade passive internal crossover featuring “soft-trip” circuitry protection of LF and HF
• Speakon NL - 4MDV connectors IN & LINK OUT
• 15 mm (5/8”) birch plywood enclosure, scratch resistant black paint finish
• Eight M10 fly points, 35 mm (1.38’’) speaker stand socket and two FBT design aluminium handles
• Ideal for live sound reinforcement applications as front of house main PA. Also suited for permanent installations
• Very lightweight, only 26Kg

• Configuration: 2 Way
• Frequency response: 50hz - 18kHz
• Low frequency woofer: 15" with 3" VC
• High frequency driver: 1" with 1.7" VC
• Maximum SPL cont/peak: 128 / 132dB
• Dispersion: 80 x 50 (HxV)
• Input impedance: 8 ohm
• Crossover frequency: 1.6khz
• Input connector: 2x Speakon NL4-MD-V In & Thru
• Net Dimension (WxHxD): 425 x 750 x 421mm
• Net Weight: 26kg
• Transport Dimension (WxHxD): 550 x 560 x 860mm
• Transport Weight: 28.5kg
