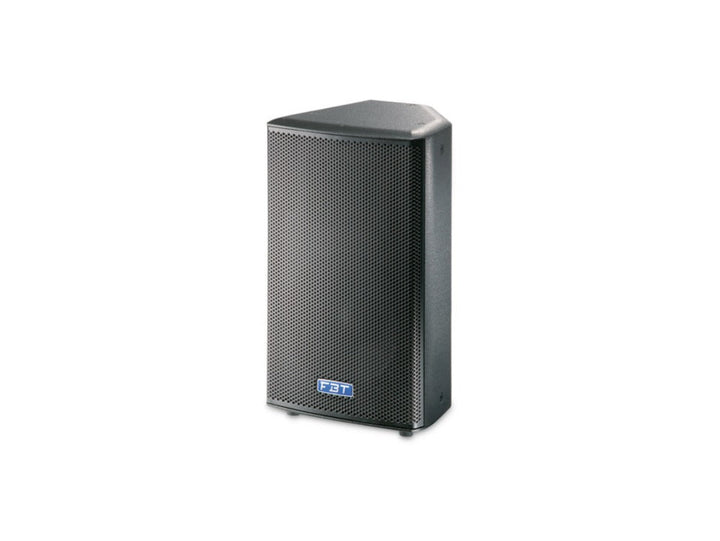

MITUS 112A Processed Active Speaker - 12"

The FBT MITUS 112A is a two-way bi-amplified speaker system shall incorporate 1 x 12” B&C neodymium woofer with 3” voice coil and 1” exit B&C neodymium driver with 1.7” voice coil coupled to a rotatable 80° x 50° horn; thanks to the rotatable HF horn it is possible to create horizontal arrays of 2 enclosures for a total coverage of 130°.

The FBT MITUS 112A shall meet the following performance criteria: Frequency response of 50Hz to 20kHz, Maximum SPL of 133dB, 600W RMS + 300W RMS class D amplifiers. The FBT MITUS 112Aprovides a DSP with 8 EQ presets.

The FBT MITUS 112A features 0.59" baltic birch plywood construction covered in a scratch & scuff resistant black finish; the front shall be protected by a heavy duty metal grille with anti-resonance spacers and exclusive synthetic cloth to protect the drivers.The control panel provides XLR input & link, level, preset, HPfilter and GND lift.

The 12 M10 anchoring points built into the cabinet allow the FBT MITUS 112A speaker to be surface mounted on ceilings and a standard 1.38" speaker stand socket allows the FBT MITUS 112Ato be mounted on speaker stands.

• 2-way, bi-amplified, bass-reflex design
• 320 mm (12’’) B&C neodymium magnet woofer with 75 mm (3’’) voice coil
• 25 mm (1’’) exit B&C neodymium magnet HF driver with 44 mm (1.7’’) voice coil with 80°H x 50°V rotatable horn
• Class D amplifiers, 600WRMS to the LF and 300WRMS to the HF, switch mode power supply
• Frequency response from 50Hz to 20KHz
• DSP with 8 eq presets
• Control panel with XLR input and link, volume, presets, HPfilter, ground-lift
• 15 mm (5/8”) birch plywood enclosure, scratch resistant black paint finish
• Eight M10 fly points, 35 mm (1.38’’) speaker stand socket and two FBT design aluminium handles
• Ideal for live sound reinforcement applications as both front of house main PA, and as a stage monitor. Also suited for permanent installations
• Very lightweight, only 20Kg

• Configuration: 2 Way
• Frequency response: 50Hz-20kHz
• Low frequency woofer: 12" with 3" VC
• High frequency driver: 1" with 1.7" VC
• Maximum SPL cont/peak: 126/133dB
• Dispersion: 80 x 50 (HxV)
• Input impedance: 22kohm
• Crossover frequency: 1.5kHz
• Input connector: XLR with link out
• Net Dimension (WxHxD): 300 x 660 x 380mm
• Net Weight: 20kg
• Transport Dimension (WxHxD): 485 x 495 x 750mm
• Transport Weight: 22kg
• AC Power requirements: 640VA
• Built-in amplifier LF/HF: 600/300w RMS
• Built-in amplifier peak LF/HF: 1200/600W
• Power cord: 5m PowerCon
