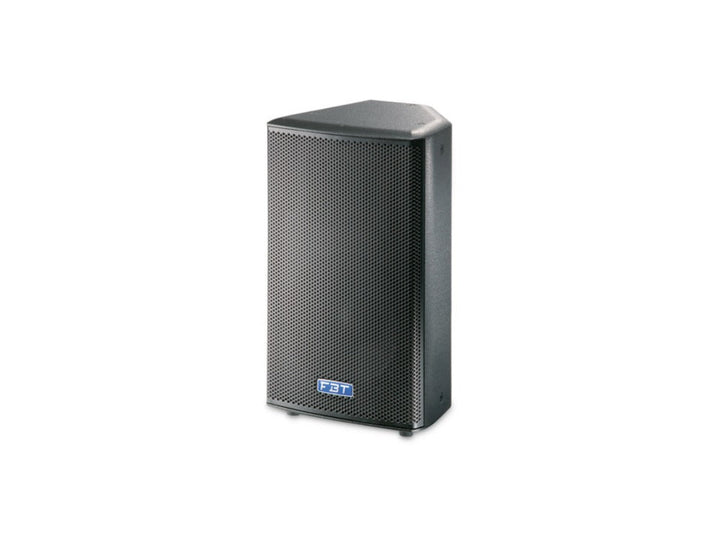

MITUS 112 Passive Reinforcement Speaker - 12"

The MITUS 112 is a passive cabinet featuring a B&C 12" Low Frequency with a 1" exit 1.7"VC High frequency driver capable of up to 131dB SPL. Housed in Birch Ply wood and covered in our tour grade black finish

• Hi-grade passive internal crossover featuring “soft-trip” circuitry protection of LF and HF transducers.
• Speakon NL4MD-V connectors IN & LINK OUT.

The MITUS 112 is a passive cabinet featuring a 12" Low Frequency with a 1" High frequency driver capable of up to 131dB SPL.

• Long Term Power - 350w
• Short Term Power - 1200w
• Recommended amplification - 700w RMS
• Nominal Impedance - 8 ohm
• Sensitivity (@1W/1m) - 99dB
• Recommended HP Filter - 40hz - 24dB Octave

• 2-way bass-reflex design
• Passive version, recommended amplifier of 700Wrms / 8ohm
• Hi-grade passive internal crossover featuring “soft-trip” circuitry protection of LF and HF transducers
• Speakon NL - 4MDV connectors IN & LINK OUT
• 320 mm (12’’) B&C neodymium magnet woofer with 75 mm (3’’) voice coil
• 25 mm (1’’) exit B&C neodymium magnet HF driver with 44 mm (1.7’’) voice coil with 80°H x 50°V rotatable horn
• Frequency response from 55Hz to 18KHz
• 15 mm (5/8”) birch plywood enclosure, scratch resistant black paint finish
• Eight M10 fly points, 35 mm (1.38’’) speaker stand socket and two FBT design aluminium handles
• Ideal for live sound reinforcement applications as both front of house main PA, and as a stage monitor. Also suited for permanent installations
• Very lightweight, only 18Kg

• Configuration: 2 Way
• Frequency response: 55Hz - 18KHz @ 6dB
• Low frequency woofer: 1x 12
• High frequency driver: 1x 1
• Maximum SPL cont/peak: 127dB / 131 dB
• Dispersion: 80 x 50 (H x V)
• Crossover frequency: 1.6khz
• Input connector: 2x Speakon NL4 - In & Thru
• Net Dimension (WxHxD): 380 x 660 x 280mm / 15 x 26 x 15in
• Net Weight: 18kg / 39.7lb
• Transport Dimension (WxHxD): 485 x 495 x 750mm / 19.1 x 19.5 x 29.5in
• Transport Weight: 20kg / 44.1lb
