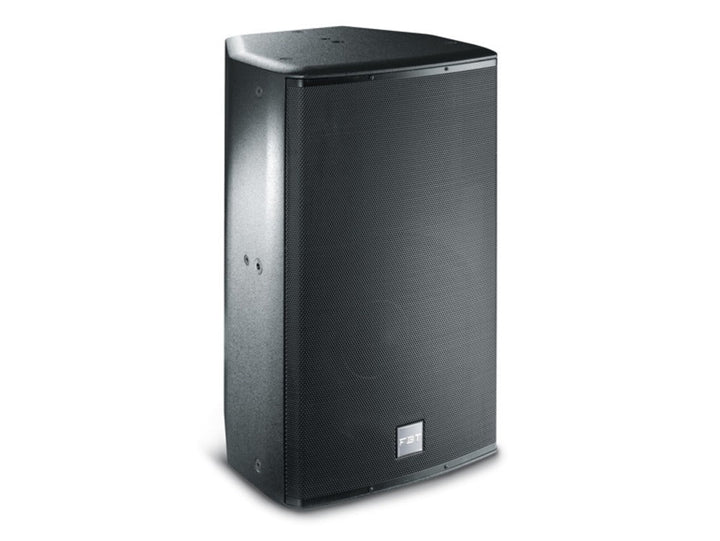

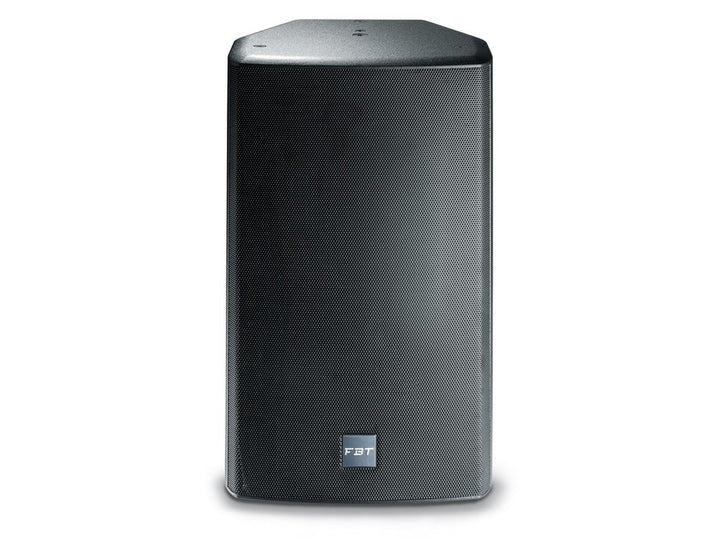

ARCHON 115 1000w Passive Sound Reinforcement Loudspeaker - 15"

The Archon 115 is a 15" full-range passive speaker with a 2" compression driver, bi-amp capable and designed to deliver high SPL, wide bandwidth, and accurate sound reproduction for modern indoor installations.

The Archon series combines full-range and bi-amped speaker systems, engineered to meet today’s expectations of the installed sound market with high-quality sound and elegant architectural design.

Applications include bars, restaurants, retail shops, clubs, entertainment venues, fitness centers, conference rooms, theatres, educational institutions, houses of worship, museums, exhibition centers, cruise ships, and corporate A/V.

• Stylish architectural cabinet design
• Acoustically transparent steel grille with protection cloth
• High SPL, fast dynamics, excellent intelligibility, wide frequency response, low distortion
• Baltic birch plywood cabinets available in black or white textured paint; custom RAL colors and finishes on request
• Custom designed LF woofers and HF compression drivers, made in Italy
• Rotatable horns for flexible horizontal/vertical dispersion
• Selectable bi-amp/full range crossover network
• Suspension options with multiple M10/M5 rigging points
• Optional line transformers for 100V/70V applications
• Optional weatherproof versions for outdoor use
• Dedicated subwoofers (Archon 208S, 215S) for extended low frequency performance

• Configuration: 2-way
• Frequency response: 48 Hz – 18 kHz
• LF woofer: 15" with 3" VC
• HF driver: 2" with 2.5" VC
• Maximum SPL (cont/peak): 130 / 134 dB
• Dispersion: 60° × 60° (H × V)
• Input impedance: 8 Ohm
• Crossover frequency: 1.3 kHz passive or active bi-amp
• Input connectors: 2 × Speakon NL4 (in & thru)
• Net dimensions (W × H × D): 435 × 740 × 421 mm / 17.12 × 29.13 × 16.57 in
• Net weight: 29 kg / 63.9 lb
• Transport dimensions (W × H × D): 530 × 860 × 530 mm / 20.86 × 33.85 × 20.85 in
• Transport weight: 31 kg / 68.3 lb
