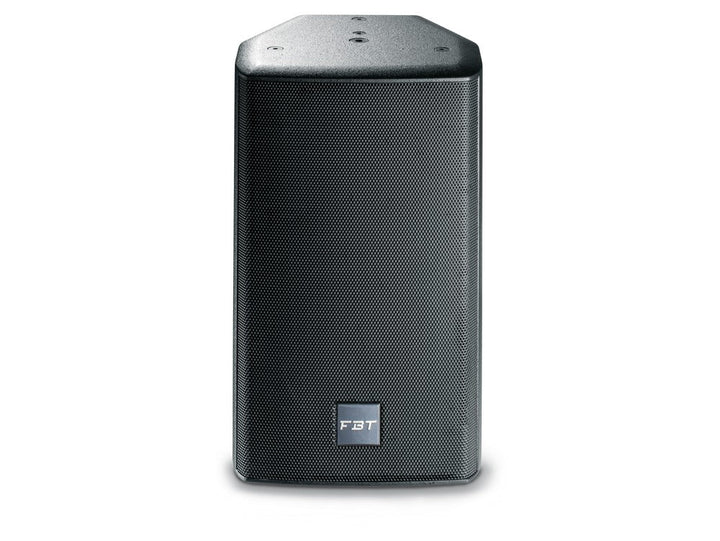

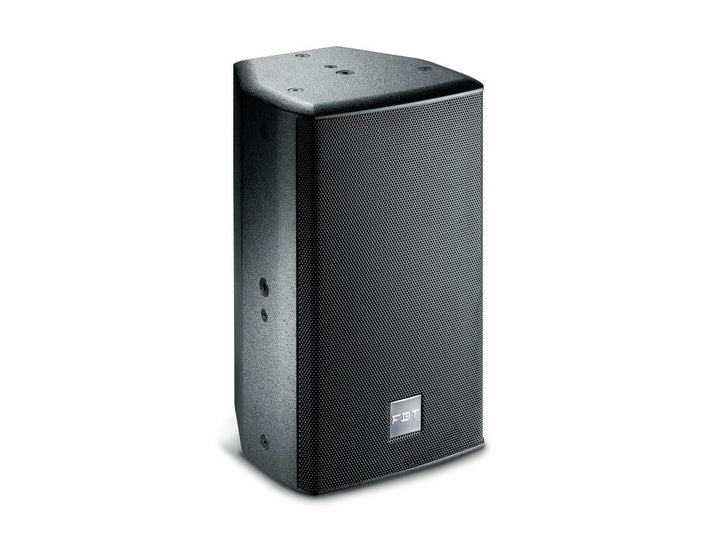

ARCHON 110 High Power Passive Installation Speaker - 10"+1"

The Archon 110 is a B&C-loaded 10" full-range passive speaker with a 1" compression driver, bi-amp capable and designed for ample bandwidth, high SPL, and accurate sound reproduction in modern indoor installations.

The Archon series combines full-range and bi-amped speaker systems, offering high-quality sound and elegant design to meet the demands of today’s installed sound market.

Applications include bars, restaurants, retail shops, clubs, entertainment venues, fitness centers, conference rooms, theatres, educational institutions, houses of worship, museums, exhibition centers, cruise ships, and corporate A/V.

• 1 × 10” (2.5” VC) B&C high-excursion LF woofer
• 1 × 1” (1.7” VC) B&C HF compression driver
• 1 × 1” rotatable constant directivity horn (80° × 50°)
• 2-way passive system, bi-ampable
• 15 mm (0.6”) Baltic birch plywood cabinet
• Full range / bi-amp crossover network with protection
• 2 × Neutrik NL-4 Speakon connectors
• 1 × 4-pole Euroblock terminal connector
• 12 × M10 threaded rigging points
• 2 × metal flange threads for U-bracket wall mount
• Acoustically transparent steel grille with dust protection cloth
• Rear pocket handle for easier installation
• 35 mm (1 3/8”) top hat for speaker stand
• Rotatable logo badge for vertical/horizontal installation
• Optional mounting hardware
• Optional 200W line transformer
