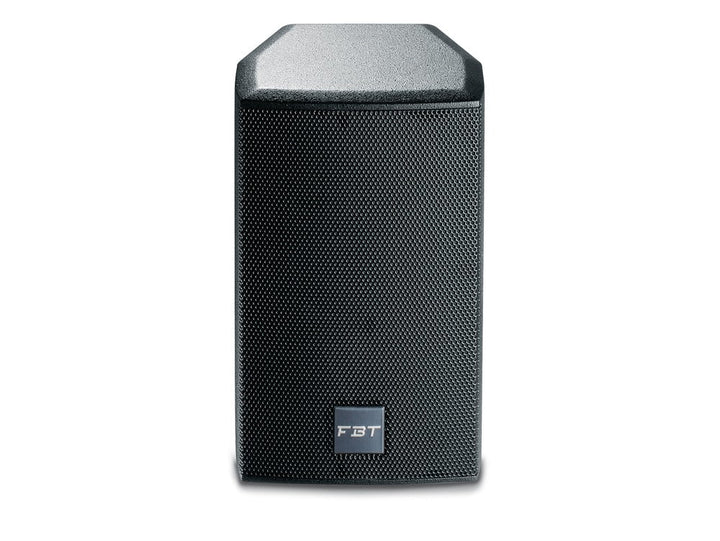

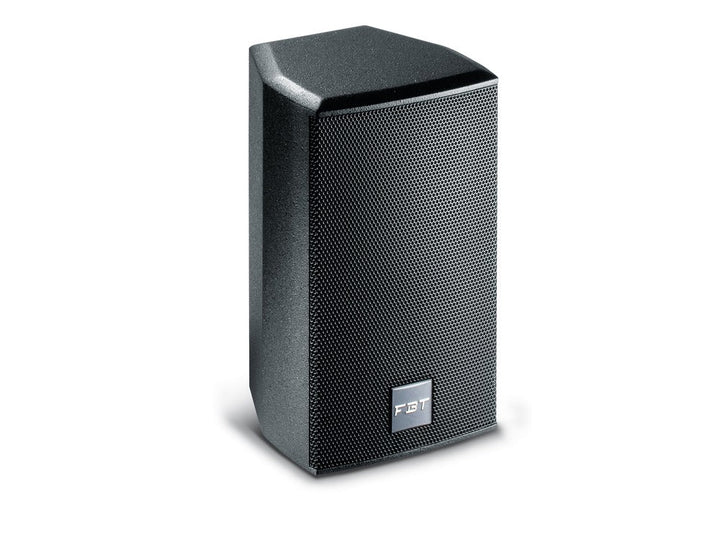

ARCHON 105 200w Passive Sound Reinforcement Loudspeaker - 5"

The Archon 105 is a 5" soft-domed full-range passive speaker designed to deliver ample bandwidth, high SPL, and accurate sound reproduction for modern indoor installations.

The Archon series offers full-range and bi-amped speaker systems engineered to meet today’s expectations of the installed sound market, combining high quality audio with elegant design.

Applications include bars, pubs, restaurants, retail shops, clubs, entertainment venues, fitness centers, conference rooms, theatres, educational institutions, houses of worship, museums, exhibition centers, cruise ships, and corporate A/V.

• Stylish architectural cabinet design
• Acoustically transparent steel grille with protection cloth
• High SPL, fast dynamics, excellent intelligibility, wide frequency response, low distortion
• Baltic birch plywood cabinets available in black or white; custom RAL colors and finishes available on request
• Custom designed LF woofers and HF dome tweeters, made in Italy
• Rotatable horns for optimal horizontal/vertical dispersion
• Selectable bi-amp/full range crossover network
• Full suspension options with multiple M10/M5 rigging points and mounting hardware
• Optional line transformer for 100V/70V applications
• Optional weatherproof versions for outdoor use
• Low-frequency extension available with dedicated Archon subwoofers (208S, 215S)

• 1 × 5” (1.25” VC) LF woofer with rubber surround
• 1 × 1” HF dome tweeter
• 2-way passive system
• 12 mm (0.47”) Baltic birch plywood cabinet
• Crossover with 4 × Euroblock speaker terminals; factory preset for transformer installation
• Multiple M5 threaded rigging points
• Rotatable logo badge for vertical/horizontal installation
• Optional mounting hardware
• Optional 50W line transformer

Configuration: 2-way

Frequency response: 70 Hz – 22 kHz

Low frequency woofer: 5"

High frequency driver: 1"

Maximum SPL (cont/peak): 112/115 dB

Dispersion: 110° × 110° (H × V)

Crossover frequency: 3 kHz

Input connector: 4 × Euroblock

Net dimensions (W × H × D): 180 × 300 × 180 mm / 7.08 × 11.81 × 7.08 in

Net weight: 4 kg / 8.8 lb

Transport dimensions (W × H × D): 260 × 380 × 260 mm / 10.23 × 14.96 × 10.23 in

Transport weight: 6 kg / 13.2 lb
