Description

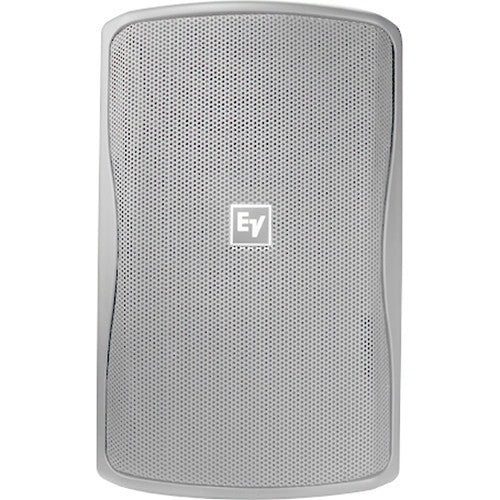

The white Electro-Voice ZX1i-100 is an 8" 2-way 200W weather-resistant passive loudspeaker offering high-performance, full-range sound reinforcement for indoor and outdoor installed applications in arenas, stages, and patios. The ZX1i-100's 8" woofer and titanium high-frequency compression driver yield a 60 Hz to 20 kHz frequency response and boast a 200W continuous power handling rating (800W peak). The high-frequency driver is mounted in a rotatable 100 x 100° horn for broad, even dispersion.
The input to the loudspeaker, provided by a removable 4-pin Euroblock connector, is fed to an internal crossover that properly distributes frequencies to the drivers. The lightweight ABS resin cabinet is outfitted with a heavy-duty QuickSAM mounting system, which enables fast and secure installation. With its molded enclosure design, two-layer grille, and IEC 529 and MIL-SPEC-810 ratings, the ZX1i-100 loudspeaker is built to withstand the stress of outdoor use
Features
- Patented ASC (Automatic Saturation Compensation)
- Also available in 70/100 volt transformer version
- Integrated QuickSAM heavy-duty Strong-Arm Mounting bracket
- EN54-24 type B certification 1438/CPD/0323 with TC-ZX1i cover (Sold separately) installed (only available in select regions)
Specifications
| Frequency Response (-3 dB) | 60 Hz - 20 kHz¹ |
| Frequency Range (-10 dB) | 48 Hz - 20 kHz¹ |
| Rec. Hi-pass Frequency | 40 Hz |
| Axial Sensitivity | 94 dB (1W/1m)¹ |
| Max Calculated SPL | 123 dB |
| Coverage (H x V) | 90 x 50 |
| Rated System Power | 200 W Cont.², 400 W Prog., 800 W Peak |
| LF Transducer | EV8L, 203 mm (8 in) Driver |
| HF Transducer | DH2005, 25 mm (1 in) Exit Compression Driver |
| Crossover Frequency | 1.7 kHz |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 6 Ω |
| "T" Version Wattage Taps | 70V - 6, 12.5, 25, 50, 100, 8 Ω by p0V - 12.5, 25, 50, 100, 8 Ω bypass |
| Connectors | 4-Pin Phoenix Connector |
| Enclosure Material | ABS resin |
| Suspension | Integrated QuickSAM Heavy-Duty Strong-Arm Mounting Bracket |
| Grille | Polyester Powder Coated, 18GA Galvanized Steel |
| Dimensions (H x W x D) | 451 mm x 282 mm x 263 mm (18 in x 11 in x 10 in) |
| Net Weight | 8.4 kg (18.5 lb) without Transformer 10.4 kg (23.0 lb) with Transformer |
| Shipping Weight | 10.2 kg (22.5 lb) without Transformer 12.3 kg (27.0 lb) with Transformer |
