Description
This is the column array and pole only. A complete EVOLVE 50 column PA also requires the powered subwoofer base (EVOLVE50-SB-US black / EVOLVE50-SW white), sold separately.

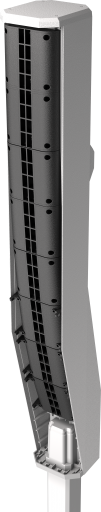

12in Column Speaker Array with Pole & Bag - 1000W - White
Electrovoice has finally done it, the much anticipated EVOLVE50 column line array speaker is here!

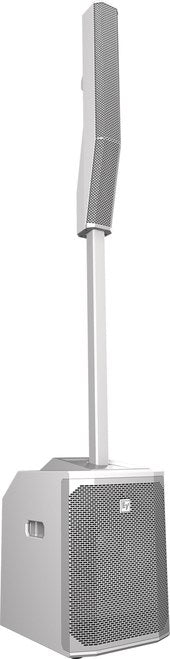

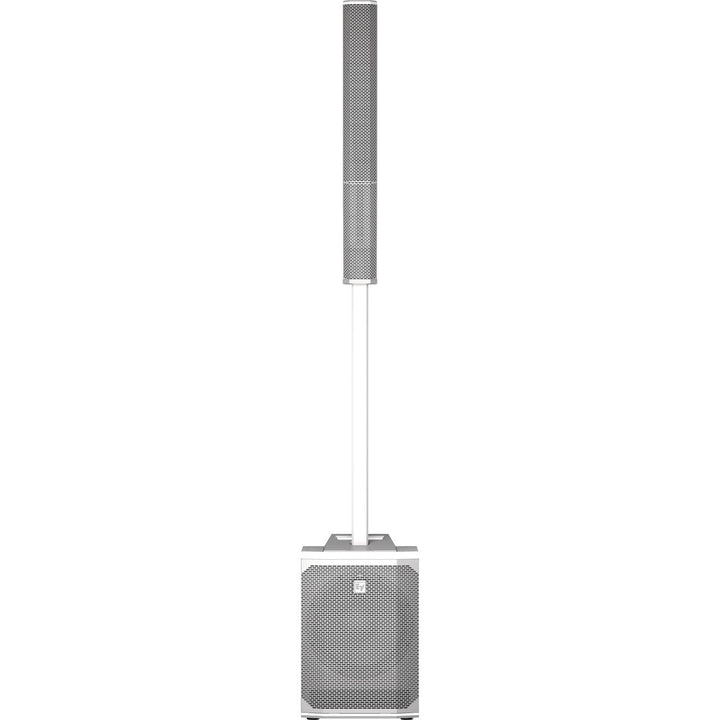

The EVOLVE 50 White Portable Column System is a three component loudspeaker system powered by a 1000 W Class-D amplifier and driven by Electro-Voice's QuickSmartDSP.
The system consists of a 15 mm wooden, ported, powered subwoofer enclosure that houses a 12” subwoofer capable of a functional frequency output down to 37 Hz.

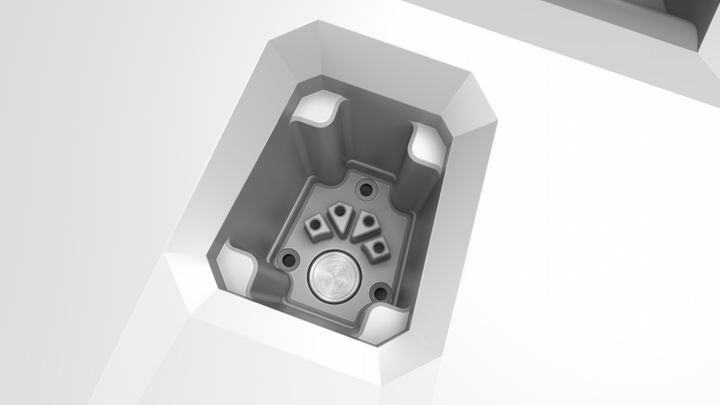

The bi-directional aluminum pole’s connection to the subwoofer is secured using a magnet, and the column array is gravity-held to the sub pole. The signal is internally routed to the components.
Eight 3.5" neodymium drivers in the column array coupled with the 12" subwoofer delivers up to 127 dB SPL. The eight composite waveguides control high frequencies with 120° of horizontal coverage, and 40° of asymmetrical (down-facing) vertical coverage to ensure suitable output for sitting and standing audiences. The sub pole and column array come prepackaged in a carrying bag.
The processing engine allows for easy setup via four presets (Music, Live, Speech, and Club), three-band EQ, five user-programmable presets (Store and Recall settings), output delay, phantom power (+15V), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure.
The new Electro-Voice QuickSmart Mobile application utilizes Bluetooth® Low Energy (BTLE) technology for the wireless configuration, control, and monitoring of up to six EVOLVE 50 systems simultaneously. High resolution Bluetooth® audio streaming adds convenience for wireless music playback in breakout rooms, intermission, and musical accompaniment.
Specifications:

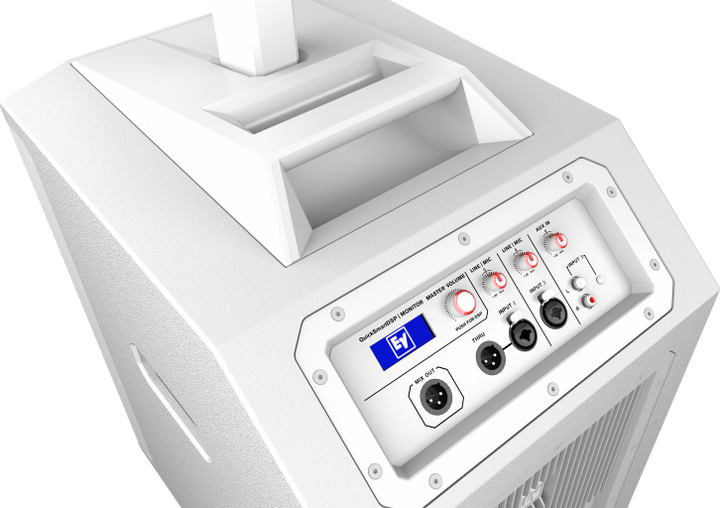

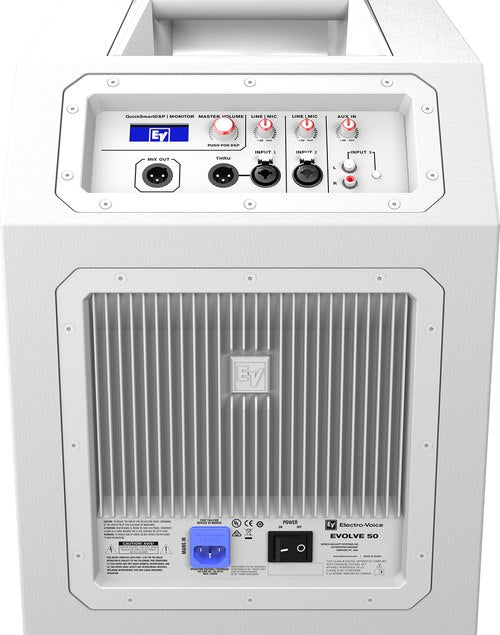

- Connector Type:
- 2x XLR/TRS combo jack input
- .5 mm Input
- 1x Stereo RCA input
- 1x Wireless Bluetooth® audio input
- 1x XLR THRU output
- 1x XLR MIX OUT output
- Coverage (Nominal -6 dB) H: 120 °
- Coverage (Nominal -6 dB) V: 40 °
- Crossover Frequency: 200 Hz
- Depth
- Sub: 471mm (18.5 in)
- Column: 172mm (6.9 in)
- Pole: 55mm (2.2 in) mm
- Enclosure Material: Wood
- Frequency Range (-10 dB): 37 Hz, 20
- Frequency Response (-3 dB): 43 Hz, 20 Hz
- Grill: Steel with black powder coat
- HF Power Handling: 500 Watts
- LF Power Handling: 500 Watts
- Max. SPL/1m (calc): 127 dB
- Maximum SPL (1% THD)
- Sub: 230mm (20.9 in)
- Column: 825mm (32.5 in)
- Pole: 929mm (36.6 in) dB
- Power Consumption: 100 - 240 V AC, 50 - 60 Hz, 1.5 - 0.6A
- Power Rating: 1000 W
- Shipping Weight: 31.3 kg
- Weight Net: 26.25 kg
- Width
- Sub: 345mm (13.6 in)
- Column: 102mm (4.0 in)
- Pole: 48.5mm (1.9 in) mm
- Woofer Size: 12 inch
