Description

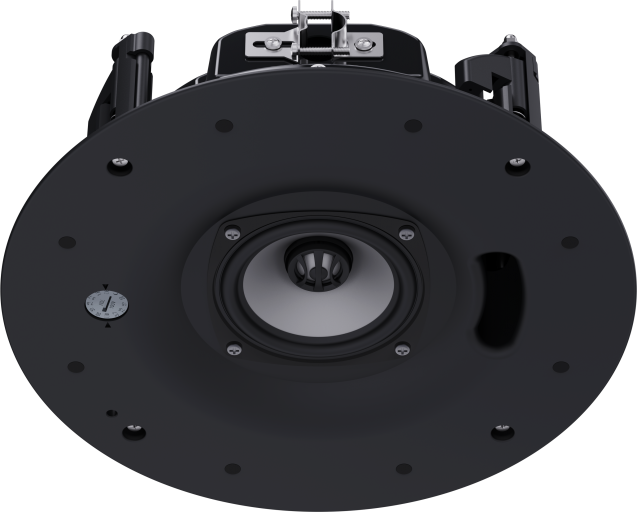

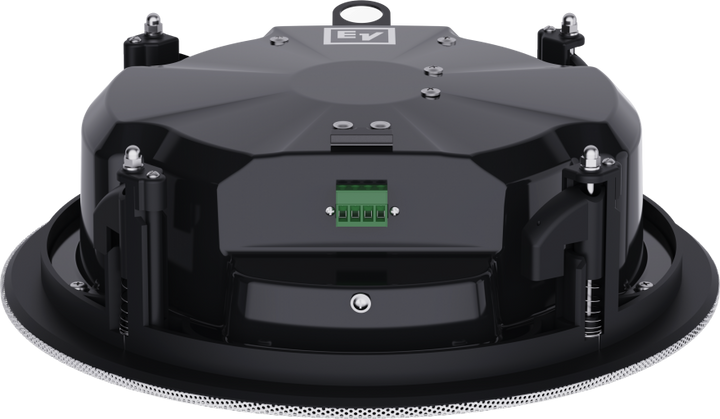

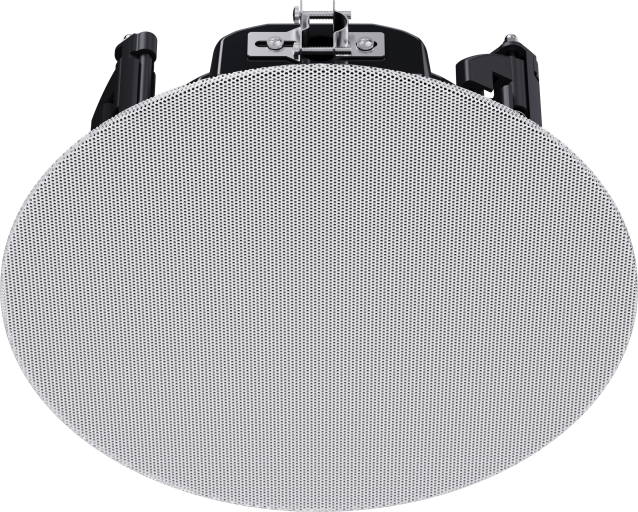

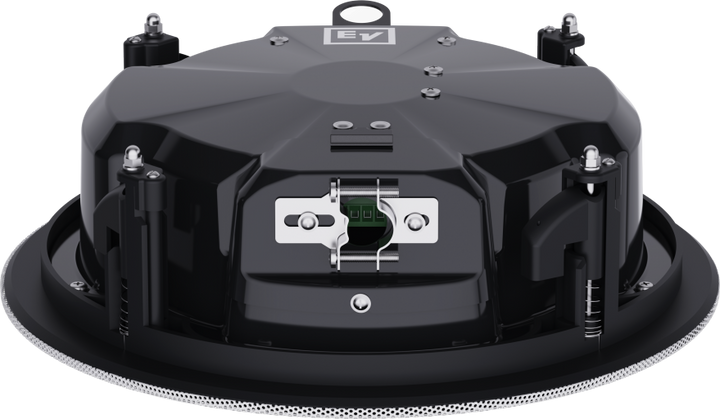

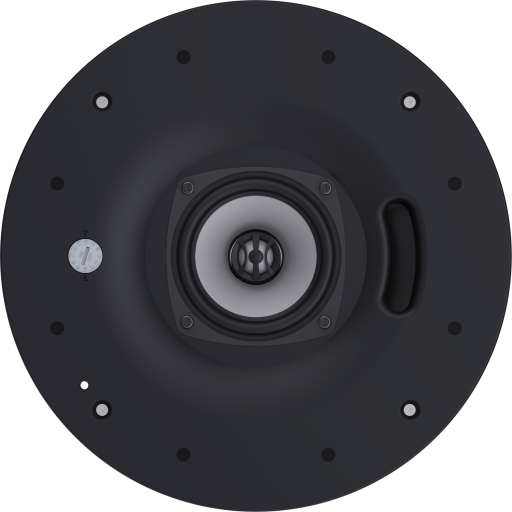

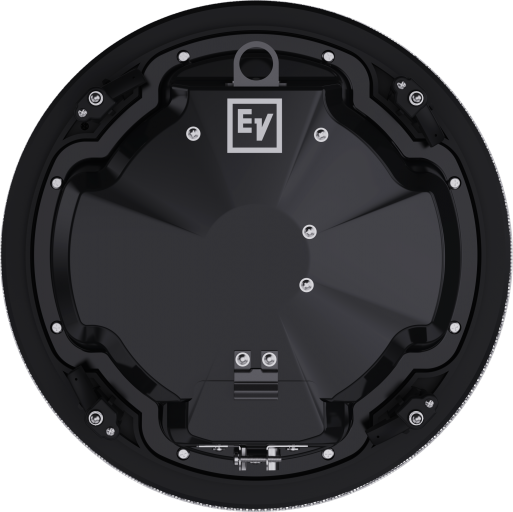

The Electro-Voice EVID-C4.2LP-G2 is a complete 4-inch coaxial two-way loudspeaker that offers excellent sound quality and outstanding reliability with firstclass aesthetics. It includes the EZ-Install system for quick and easy installations that are fast and reliable without compromising on safety. The loudspeaker features a point-source design to improve off-axis response and overall uniform coverage. The EVID-C4.2LP-G2 utilizes a transformer that offers a selection of 1.9 (70-V only), 3.8, 7.5, 15 or 30 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8-ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle is constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from heavy gauge coated steel. The low-profile enclosure makes it easy to mount in very tight spaces. A side terminalcover provides access to a 4-pin terminal block that allows direct connection to the speaker with 12-gauge and 3.3 mm2-wire and provides pass through to additional speakers. A mounting ring and a tile bridge are included for safe suspension of the EVID-C4.2LP-G2 ceiling systems in a drop ceiling that uses mineral wool, or other fiberbased ceiling tiles. The wide range of EVID ceiling speakers has been designed to work together as a complete system in a variety of different ceiling constructions, and to be used in combination with other EVID surface-mount and in-wall speakers.
Specifications
- Frequency range (-10 dB) (Hz) 1: 65 Hz, 20,000 Hz
- Maximum SPL (continuous) (dB) 2: 105 dB
- Maximum SPL (peak) (dB) 3: 111 dB
- Sensitivity (1 W, 1 m) 4: 87 dB SPL 1 W, 1 m
- Coverage angle conical (°): 130°
- Power handling (continuous) (W) 5: 50 W
- Power handling (peak) (W) 5: 200 W
- Nominal impedance (Ω) (Low Z): 8 Ω
- Recommended high pass (Hz) 6: 60 Hz
- Transformer taps 70 V line (W): 15 W; 3.75 W; 7.5 W; 30 W; 1.9 W
- Transformer taps 100 V line (W): 15 W; 3.75 W; 7.5 W; 30 W
- LF transducer size (in): 4 in
- HF transducer size (in): 0.75 in
- Material: Steel
- Grille material: Powder coated steel
- Connector type: 4-pin Euroblock Input + Pass through
- Wire size (AWG): 12AWG (maximum)
- Wire diameter (mm2): 3.3 mm2 (maximum)
- Color: White; Customized colors
- Color (RAL): RAL 9003 Signal white
- Mounting cutout (in): 10.7 in
- Mounting cutout (mm): 272 mm
- Dimensions (Ø x D) (in): 11.8 in x 3.7 in
- Dimensions (Ø x D) (mm): 300 mm x 94 mm
- Mounting depth (in): 3,3 in
- Mounting depth (mm): 84 mm
- Ceiling thickness (in): 0,5 in - 1,5 in
- Ceiling thickness (mm): 12,5 mm - 38 mm
- Weight (kg): 3.3 kg
- Weight (lb): 7.35 lb
- Shipping weight (kg): 7 kg
- Shipping weight (lb): 15.4 lb
- IP rating 7: IP34
- Weatherization: Indoor
- Operating temperature (°F): 32 °F, 104 °F
- Operating temperature (°C): 0 °C, 40 °C
- Safety agency ratings: UL 1480A, safe for use in airhandling spaces per UL 2043, CSA 22.2 205 certified, IEC 62638
