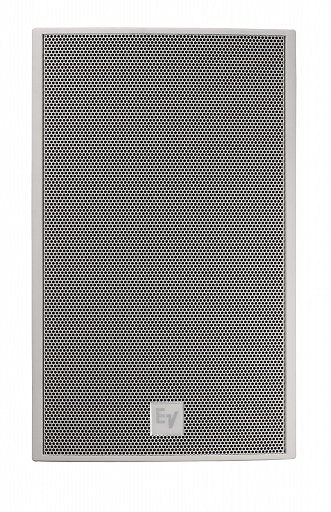

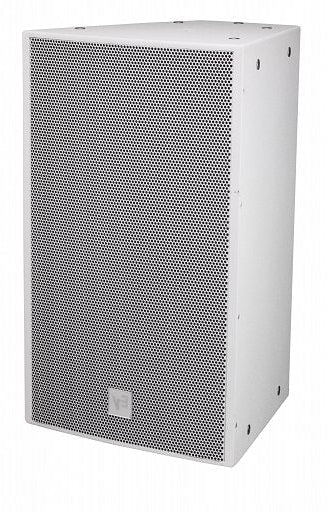

Electro-Voice EVF-15/64-W 15in 2Way Front-Loaded Speaker- Indoor - White
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm financing is available for most products. To access flexible payment options, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Description
Every EVF trapezoidal enclosure is constructed out of weather-resistant plywood, and coated with EVCoat for maximum protection from the elements. EVF‘s unique acoustic and rigging designs allow for vertical and horizontal clusters to be built using any combination of loudspeakers from both the entire EVF & EVH Series. With an assortment of full-range, low-frequency, and subwoofer loudspeakers, the EVF Series provides the tools to maximize the flexibility of system design, no matter what the application and budget. EVF‘s innovative input panels provide the choice of Phoenix-type connectors (included in all standard models), or allow the easy addition of a dual NL4-type connector cover plate or gland nut cover plate (for weatherizing applications). An externally accessible jumper also selects passive or active operation, and an available 70.7/100V transformer kit simply mounts to the input panel for use in distributed systems. All features provide the flexibility to manage more venues with less equipment, while quickly and precisely addressing customer requirements.
Features

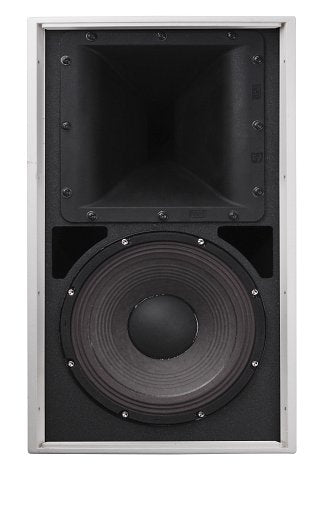

- 2-inch ND2B titanium HF compression driver
- Rotatable Constant-directivity waveguide
- Six available patterns with coverage from 40º to 90º
- 101 dB sensitivity, 134 dB maximum SPL
- Power handling: 500 W continuous, 2000 W peak
- 4th-order crossover with HF protection
- Trapezoidal 13-ply plywood enclosure in three finishes: EVCoat, PI, and fiberglass (FG)
Specifications
- Frequency Range (-10 dB): 41 Hz, 18 kHz
- Suspension: 22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)
- Weatherized: No
- Minimum Impedance: 6Ω
- Nominal Impedance (Passive): 8Ω
- HF Transducer: 2" ND2B diaphragm compression driver
- Speaker Type: Full-Range, Two-Way
- Frequency Response (-3 dB)¹: 70 Hz, 14 Hz
- Max. SPL/1m (calc)²: 134 dBdB
- Coverage (Nominal -6 dB) H: 60°
- Coverage (Nominal -6 dB) V: 40°
- LF Transducer: 15" SMX2151 driver
- System Power Handling (Continuous/Program/Peak): 500, 1000, 2000 Watts
- Crossover Frequency: 1450Hz
- Enclosure Material: 13-ply weather-resistant birch
- Grille: Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind
- Sensitivity 1 W/1 m: 101 dBdB
- Height: 30.26" (768.6mm)
- Recommended High-Pass Frequency: 45Hz
- Width: 18.5" (469.8mm)
- Depth: 18.37" (466.6mm)
- Weight Net: 70.77lbs (32.1kg)
- Available Coverage Patterns (Nominal -6 dB) HxV: °
- Environmental Specs: Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55
- Internal Passive Crossover Frequency: 1450Hz
- Passive Power Handling: 2000W peak
- Net Weight: 70.9 lb (32.1 kg)
- Dimensions (H x W x D): 30.26" x 18.5" x 18.37" (768...6 )mm
- Input Connections: Euroblock; PI and FG versions include dual-gland-nut input-panel cover
