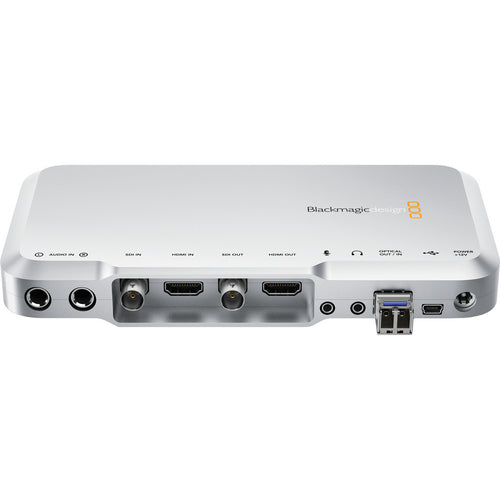

Blackmagic Design ATEM Camera Converter

ATEM Camera Converter is a portable converter that connects to any SDI or HDMI camera. The ATEM Camera Converter sends video, audio, tally and talkback signals via bi-directional optical fiber between itself and a remote unit, for example an ATEM Studio Converter, which then sends the signal to a switcher. ATEM Camera Converter supports SD, HD and 3G-SDI formats and can be powered using the internal rechargeable battery or by using mains power.

When paired with another ATEM Camera Converter, ATEM Studio Converter or ATEM Talkback Converter 4K you get a complete talkback solution for live production. Tally lights are also enabled when connected to ATEM switchers.

Specifications

• Connections
  • SDI Video Input -  1 x 10 bit SD/HD switchable.
  • SDI Video Output -  1 x 10 bit SD/HD switchable.
  • HDMI Video Input -  1 x HDMI type A connector.
  • HDMI Video Output -  1 x HDMI type A connector.
  • Talkback Audio
    • 1 x 3.5mm stereo connector for talkback microphone.
    • 1 x 3.5mm stereo connector for stereo headphones, compatible with iPhone headsets.
  • Analog Audio -  2 x balanced 1/4" TRS connectors (stereo) microphone level in.
  • When connected, replaces audio from SDI In or HDMI In.
  • Optical Fiber Video Input -  1 x single mode SD/HD switchable with LC connector.
  • Optical Fiber Video Output -  1 x single mode SD/HD switchable with LC connector.
  • Optical Fiber Audio Input -  1 x single mode camera audio inputs with LC connector.
    • Channels 1 & 2 are camera audio.
    • Channels 15 & 16 are intercom audio.
  • Optical Fiber Audio Output -  1 x single mode camera audio outputs with LC connector.
    • Channels 1 & 2 are camera audio.
    • Channels 15 & 16 are intercom audio.
  • Computer Interface -  1 x mini-B type USB 2.0 connector for initial setup, firmware updates and Converter Utility software control.
• Standards
  • SDI Format Support
    • 525i59.94 NTSC, 625i50 PAL
    • 720p50, 720p59.94, 720p60
    • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  • 2K Format Support
    • 1 2K DCI 24p, 2K DCI 25p
  • HDMI Format Support
    • 720p50, 720p59.94, 720p60
    • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
    • 1080i50, 59.94, 60
  • SDI Compliance -  SMPTE 259M, SMPTE 292M.
  • Audio Sampling -  Television standard sample rate of 48Khz,24 bit A/D conversion
  • Video Sampling -  4:2:2
  • Color Precision -  10‑bit
  • Color Space -  REC 601, REC 709
  • Multiple Rate support -  ​SDI and HDMI are switchable between standard definitlon and high definition
• Software
  • Software Included -  Converter Utility
• Operating Systems
  • Mac
    • Mac 10.11 El Capitan,
    • Mac 10.12 Sierra or later.
  • Windows
    • Windows 8.1 and 10.
• Power Requirements
  • Power Supply -  12V power supply included with international socket adaptors for all countries.
• Environmental Specifications
  • Operating Temperature -  ​0° to 40° C (32° to 104° F)
  • Storage Temperature -  -20° to 45° C (-4° to 113° F)
  • Relative Humidity -  0% to 90% non‑condensing
• Physical Specifications
  • Dimensions (LxWxH) - 4.76 x 7.99 x 1.73 inch (121 x 203 x 44 mm)
  • Weight - 1.66 lb (0.75 kg)

​ What's Included

• ATEM Camera Converter
• Welcome wallet with QR code for software download
