Description

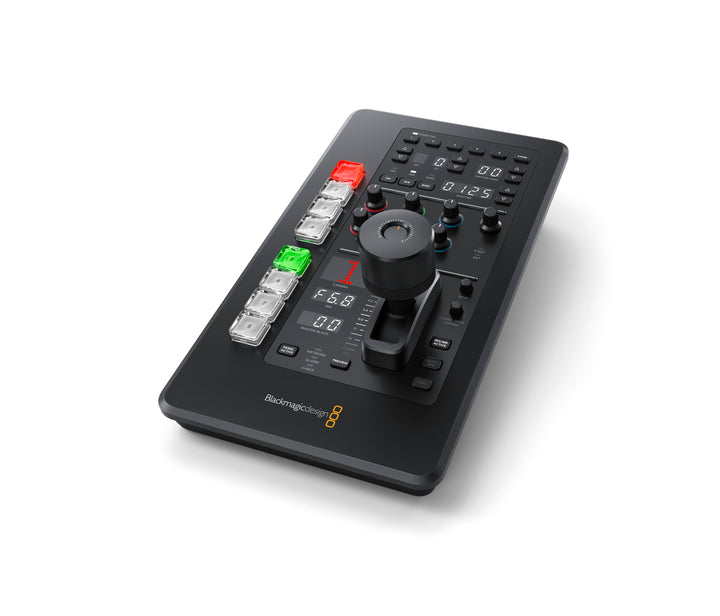

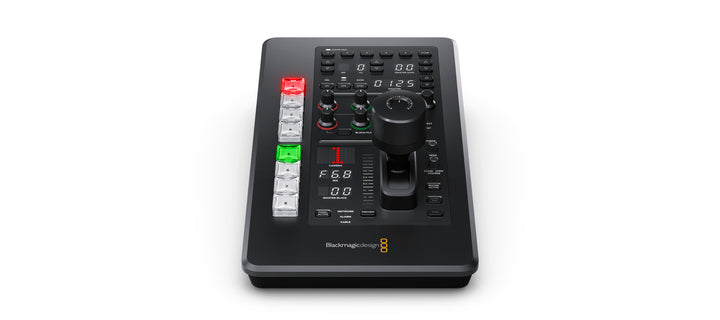

ATEM Micro Camera Panel is a portable camera panel with high end broadcast CCU controls. Control iris, pedestal, shutter, white balance, master gain, RGB balance and more for up to 8 cameras from a single panel. Connects to ATEM Software Control via Bluetooth or USB‑C.
Connections
- Computer Interface: USB Type‑C.
- Bluetooth: Bluetooth 5.1 LE
- Software Updates: 1 x USB‑C for firmware updates.
Product Specifics
- Camera Selection buttons
- 8 x NKK buttons.
- Assignable via setup utility.
- Camera Number Display: Green off air, red on air.
- Setup
- White and black balance setup.
- Flare via modifier key.
- 3 Axis Joystick: 1
- Preview Button: 1
- Iris Control: Auto Iris On, Coarse control.
- Iris Range: CLS f32 to f1.2
- Gain Range: -12dB to +32dB
- ND Filters: 0, 2, 4, 6.
- Shutter Range: 1/24 to 1/2000
- White Balance Range: 2500K to 10,000K
- Recallable Scenes: 5 per camera.
- Panel Active: Protects settings.
