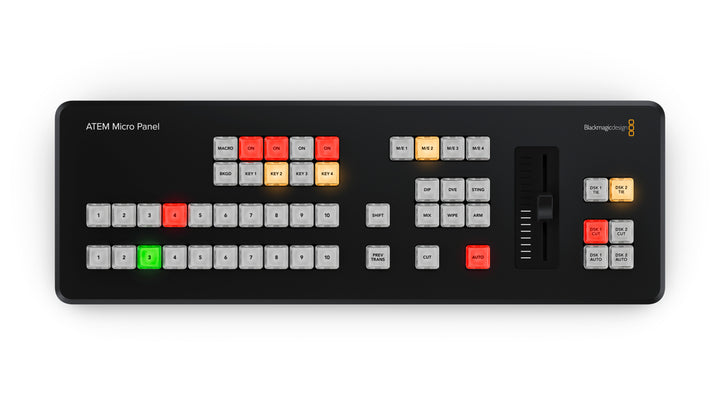

Blackmagic Design ATEM Micro Panel

The ATEM Micro Panel is a fantastic hardware panel for physical switching while using ATEM Software Control. It features the same professional panel design as ATEM Advanced Panels with high end backlit buttons and a low profile manual transition fader that keeps the ATEM Micro Panel incredibly portable. There are two rows of ten buttons for program and preview with a shift button to access up to 20 sources. Plus, buttons for upstream and downstream keyers, transitions, preview transition, macros and the four M/E buttons mean it can work with the biggest switchers. Connect ATEM Micro Panel to the ATEM Software Control computer by USB-C or the big internal battery allows wireless connection by Bluetooth for hours!

Specifications

• Connections
  • Computer Interface -  ​USB Type‑C.
  • Bluetooth -  Bluetooth 5.1 LE
• Product Specifics
  • Number of Mix Effects Rows -  1
  • Direct Cross Points -  10
  • Shifted Cross Points -  20
  • Crosspoint Button Type -  Tri-Color LED
  • Preview Transition -  1
  • Switching Type Buttons -  CUT and AUTO
  • Transition Type Buttons -  DIP, DVE, STINGER, MIX, WIPE.
  • M/E Select Buttons -  4
  • Upstream Key Buttons -  4 with ON/OFF
  • Downstream Key Buttons -  2 with ON/OFF
  • Transition Slider -  1
• Software
  • Software Applications -  ATEM Micro Panel controls ATEM Software Control Panel running on the host computer.
• Operating Systems
  • Mac 13.0 Ventura,
  • Mac 14.0 Sonoma or later.
  • Windows 10 and 11.
• Power Requirements
  • Power Supply
    • Internal battery with power switch.
    • USB-C port for external power supply and battery charging.
  • Power Usage -  3 W max.
• Environmental Specifications
  • Operating Temperature -  5° to 40° C (41° to 104° F)
  • Storage Temperature -  -20° to 45° C (-4° to 113° F)
  • Relative Humidity -  0% to 90% non‑condensing

What's Included

• ATEM Micro Panel
• Welcome wallet with QR code for software download
