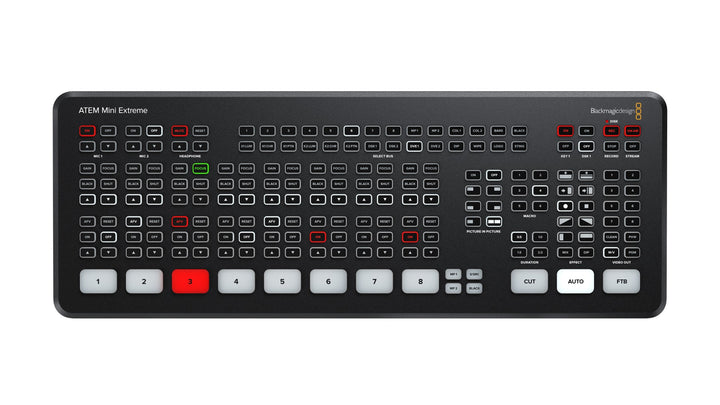

Blackmagic Design ATEM Mini Extreme 8 Input Switcher

Blackmagic Design ATEM Mini Extreme is an advanced switcher for true professionals! You get all the ATEM Mini Pro features plus 8 HDMI inputs, 2 separate HDMI outputs, 2 USB ports and a headphone connection. There are also 4 chroma keyers, 6 picture in picture DVEs, 2 media players, and a multiview with up to 16 views!

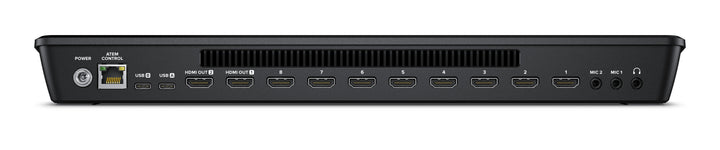

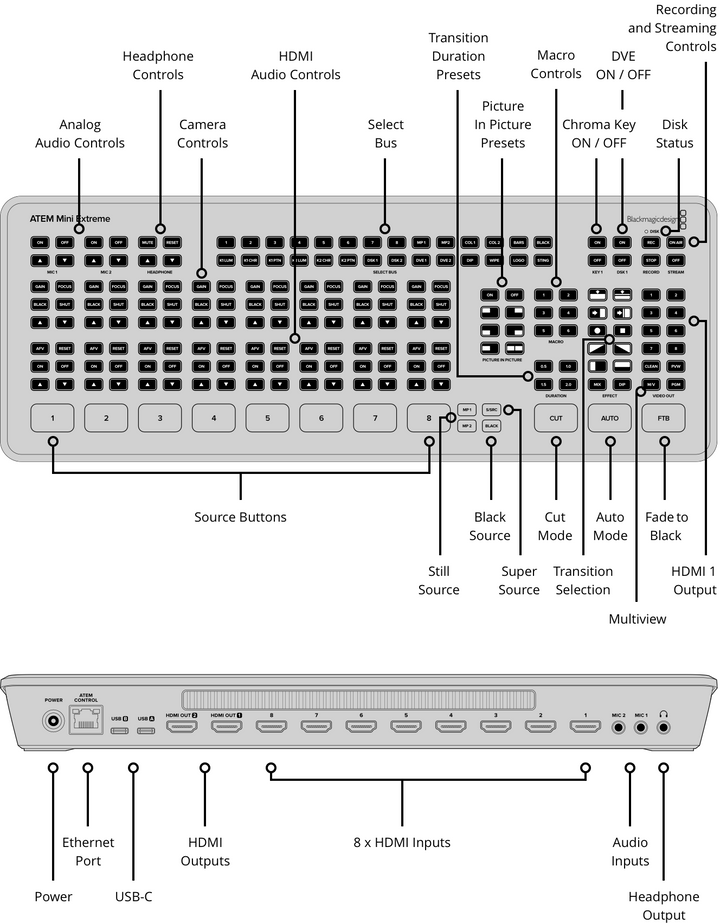

Connections

• Total Video Inputs: 8
• Total Outputs: 2
• Total Aux Outputs: 2
• Total Audio Inputs: 2 x 3.5mm stereo mini jack.
• Total Audio Outputs: 1 x 3.5mm stereo mini jack.
• Timecode Connection: None
• HDMI Video Inputs: 8 x HDMI type A, 10-bit HD switchable. 2 channel embedded audio.
• Video Input Re-Sync: On all 8 HDMI inputs.
• Frame Rate and Format Converters: On all 8 HDMI inputs.
• HDMI Program Outputs: 2
• Ethernet: Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.
• Computer Interface: 2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.

Standards

• HD Video Input Standards
  • 720p50, 720p59.94, 720p60
  • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  • 1080i50, 1080i59.94, 1080i60
• HD Video Output Standards
  • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
• Video Streaming Standards
  • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
• Ultra HD Video Standards: None
• Video Sampling: 4:2:2 YUV
• Color Precision: 10-bit
• Color Space: Rec 709
• HDMI Input Resolutions from Computers:
  • 1280 x 720p 50Hz, 59.94Hz and 60Hz
  • 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz
  • 1920 x 1080i 50, 59.94Hz and 60Hz
• Colorspace Conversion: Hardware based real time.

Product Specifics

• Upstream Keyers: 4
• Downstream Keyers: 2
• Advanced Chroma Keyers: Up to 4
• Linear/Luma Keyers: Up to 4
• Transition Keyer: DVE only.
• Total Number of Layers: 9
• Pattern Generators: 5
• Color Generators: 2
• DVE With Borders and Drop Shadow: 2
• Interface: Minimum monitor resolution of 1366 x 768.

Audio

• Audio Mixer:
  • 11 input x 2 channel mixer.
  • Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.
  • Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
• Analog Input: Unbalanced stereo
• Analog Input Delay: Up to 8 frames
• Input Impedance: 1.8k
• Max Input Level: +6dBV
• Mic Plug In Power: Available on both 3.5mm mini jack connections.

Streaming

ATEM Mini Extreme supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C.

Recording

• Direct Recording Video and Audio: USB-C 3.1 Gen 1 expansion port can record directly to external media.
• Video Recording: 1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio.
• Media Format: Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.

Multi View Monitoring

• Multi View Monitoring: Configurable to 16, 13, 10, 7 or 4 up views including Program, Preview, 8 HDMI inputs, SuperSource, Clean Feed, Media Player, Streaming Status, Recording Status and Audio Meters.
• Multi View Video Standard: HD

Media Player

• Media Players: 2
• Channels: Fill and key for each Media Player.
• Media Pool Still Image Capacity: 20 with fill and key.
• Media Pool Still Image Format: PNG, TGA, BMP, GIF, JPEG and TIFF.
