Description

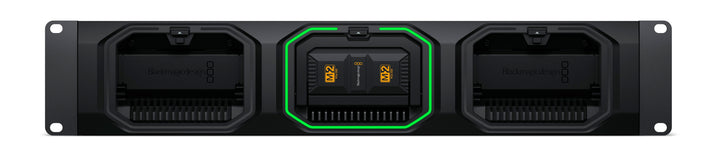

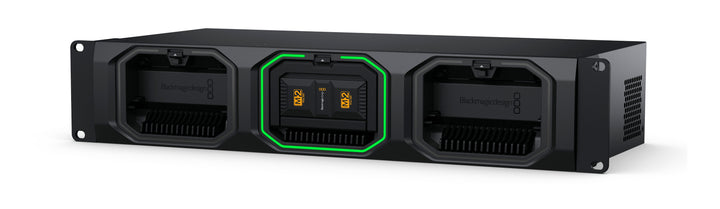

Blackmagic Media Dock accelerates your post production workflow by enabling high speed network sharing and upload from up to 3 Blackmagic Media Modules from Blackmagic URSA Cine cameras. 4 x 10G Ethernet ports allow 4 separate edit stations to connect and edit directly. Blackmagic Media dock also has Ethernet over USB-C, dual AC power inputs for redundancy and an HDMI output for live monitoring of media in real time on a TV or monitor.
Specifications
-
Connections
- Interface - 3 x removable and hot-swappable Blackmagic Media Modules.
- 10G Ethernet Ports - 4 x 10G BASE-T
- USB-C Port - 1 x USB 3.0 (up to 5Gb/s). Supports Ethernet Over USB
- HDMI Monitor Outputs - 1
- Computer Interface - USB-C or Ethernet for shared file access, configuration and software updates.
-
File Sharing Protocol
- Protocol - SMB
- Computer Connections - 50 max.
-
Cloud Synchronization
- Compatible Services
- Dropbox
- Google Drive
-
Storage
- Storage Type - Up to 3 Blackmagic Media Modules.
- External Storage Format - Blackmagic (formatted in camera)
-
Displays
- HDMI Monitor Out Standards - 1080p50, 1080p59.94, 1080p60
- Monitor Out Displays - Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graph.
- Status Indicator - LED bezel indicator lights around media module bays.
-
Device Control
- External Control - USB-C or Ethernet for configuration and software updates.
-
Included Software
- Blackmagic Cloud Setup Utility
- Blackmagic Proxy Generator Lite
- Internal software upgrade via Blackmagic Cloud Setup using USB-C port
-
Operating Systems
- Mac 14.3 Sonoma or later.
- Windows 10, 64-bit.
- Windows 11.
-
Power Requirements
- Power Supply - Internal 100 - 240V AC 50/60Hz with IEC C14 mains input.
-
Physical Installation
- 2 rack units.
-
Environmental Specifications
- Operating Temperature - 0° to 40° C (32°to 104° F)
- Storage Temperature - -20° to 60° C (-4° to 140° F)
- Relative Humidity - 0% to 90% non-condensing
What's Included
- Blackmagic Media Dock
- Welcome wallet with QR code for software download
