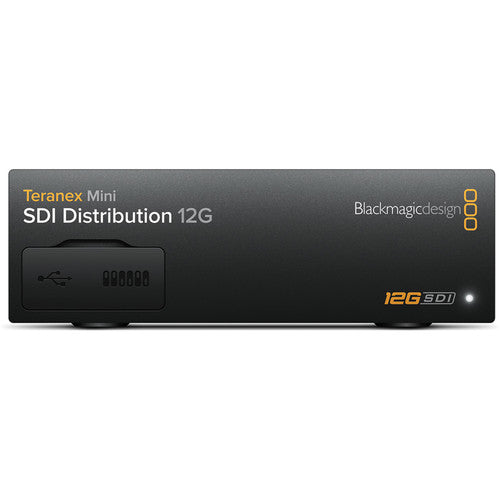

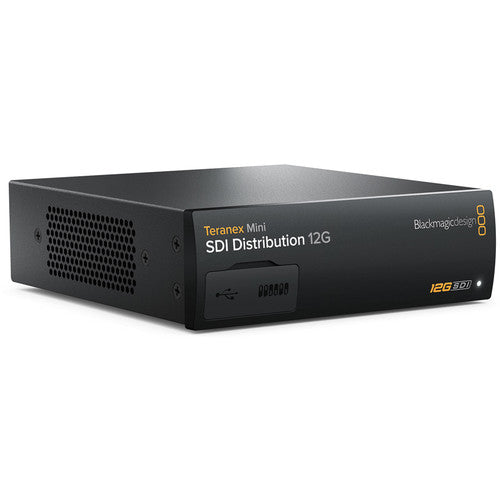

Blackmagic Design Teranex Mini 12G-SDI Distribution
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm financing is available for most products. To access flexible payment options, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Description
Distribute a single SDI video input to up to eight SDI outputs. Features the latest multi rate 12G-SDI connections with full SDI re-clocking allowing the converter to automatically switch between all SD, HD and Ultra HD formats up to 2160p60. Perfect for distributing a single SDI signal to multiple devices such as monitors, switchers and encoders.

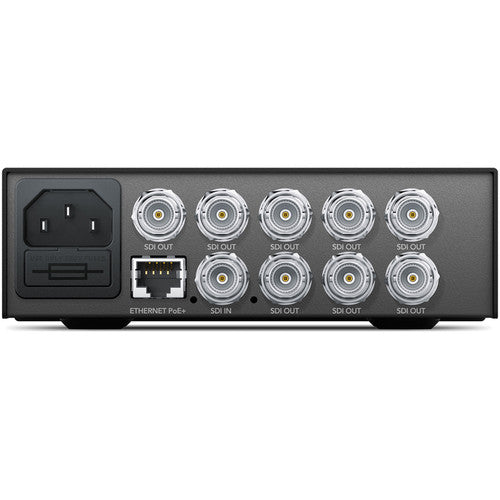

Connections:
- SDI Video Input: 1 x 12G-SDI SD/HD/2K/4K auto switching.
- SDI Video Output: 8 x 12G-SDI automatically matches the SD/HD/2K/4K 12G-SDI input
- Multi Rate Support: Automatic switching between SD/HD/2K and 4K
- Updates and Configuration: USB or Ethernet
- Re-Clocking: Yes
Standards:
- SD Format Support: 525/29.97 NTSC, 625/25 PAL
- HD Format Support: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.
- 2K Format Support: 1080PsF23.98, 1080PsF24, 1080PsF25, 1080p23.98, 1080p24, 1080p25,
- Ultra HD Format Support: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p60.
- 4K Format Support: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30.
- SDI Compliance: SMPTE 259M, 292M, 296M, 372M, 425M, ST 2081 & ST 2082
- SDI Video Rates: SDI video connections are switchable between standard definition, high definition level B 3G-SDI, 6G-SDI and 12G-SDI.
- SDI Video Sampling: 4:2:2 and 4:4:4
- SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.
- SDI Color Space: YUV & RGB
Software
- Software Control: Mac OS X™ and Windows™ software upgrade via USB and Ethernet.
- Internal Software Upgrade: Via included updater application
Settings Control
- Basic Settings Control: Mini Switches, USB and Ethernet via free software utility.
- Optional Front Panel Control: Front mounted Smart Panel with LCD, rotary knob and six settings buttons.
Power Requirements
- Power Supply: 1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.
- Power Over Ethernet: Can be powered via 48V DC using PoE+ (power over ethernet).
- Power Consumption: 18 Watts
- Operational Voltage Range: 90 - 240V AC
Environmental Specifications
- Operating Temperature: 0°to 40°C (32° to 104°F)
- Storage Temperature: -20°to 60°C (-4° to 140°F)
- Relative Humidity: 0% to 90% non-condensing
What's Included:
- Teranex Mini - S DI Distribution 12G
- Software SD Card
Warranty
- 3 year Limited Manufacturer’s Warranty.
