Description
Teranex Mini SDI to DisplayPort 8K HDR Features
- Includes support for HDR via SDI and DisplayPort
- 2 built in scopes live overlaid on monitor
- Film industry quality 33 point 3D LUTs
- Supports automatic monitor calibration using color probes
- Advanced Quad Link 12G-SDI inputs for 8K
- Scales input video to the native monitor resolution
- Includes LCD for monitoring and menu settings
- Utility software included for Mac and Windows
- Supports latest 8K DisplayPort monitors and displays
- Can be used on a desktop or rack mounted
It’s always difficult to know if a monitor is the correct color because every display is slightly different, even between the same model. Teranex Mini SDI to DisplayPort 8K HDR solves this problem as it can use a third party USB probe for automatically aligning their monitor. SpectraCal C6, X-Rite i1 Display Pro or the Klein K10-A probes are supported and plug into the front of the converter. The converter takes care of all the work and will automatically generate test signals on the monitor during the calibration process.

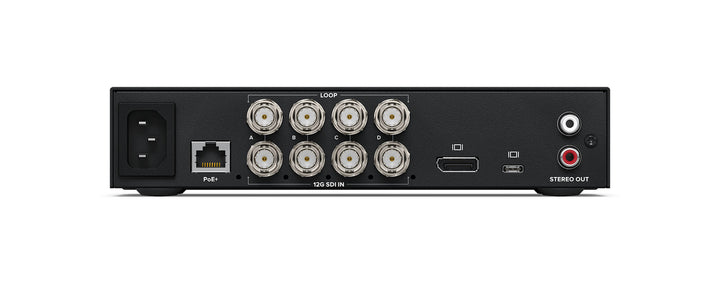

All Quad Link 12G-SDI inputs have outputs for looping to other equipment. Plus all HD, Ultra HD and 8K standards are supported allowing broadcast or film industry use. In 720p customers get support for 50p, 59.94p up to 60p. In 1080i formats, they get 50i, 59.94i up to 60i. 1080p, 1080PsF as well as 2160p formats are supported from 23.98 to 60 fps. Customers even get support for 2K and 4K DCI film formats from 23.98p to 60p. 4320p 8K formats are supported at 23.98, 24, 25, 29.97, 50, up to 59.94. With 2SI to Square Division conversion built in, an 8K source will be automatically converted for the monitor. Teranex Mini SDI to DisplayPort 8K HDR even handles both Level A or B 3G-SDI plus YUV and RGB SDI formats.

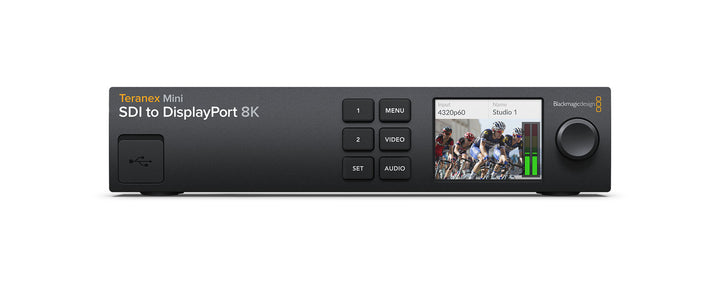

The front panel LCD provides confidence monitoring with both images and accurate audio level meters. There are menus for all functions and it’s easy to scroll through menu "pages" to find settings that need changing. The 3D LUTs can be enabled just by pressing the 1 or 2 buttons. Calibration is also started via the menus and customers simply follow the prompts to calibrate their display. The audio meters can even be switched between VU or PPM ballistics. There are settings for configuring scopes, their on screen location or opacity. Customers can even view and edit network settings.
For rack mounting, customers can simply add a Teranex Mini Rack Shelf. This consists of a metal tray that holds the converter and allows it to be screwed down before the whole shelf is bolted into the rack. Of course Teranex Mini SDI to DisplayPort 8K HDR includes rubber feet that customers can attach to the underside of the converter if customers want to place it on a desktop.
