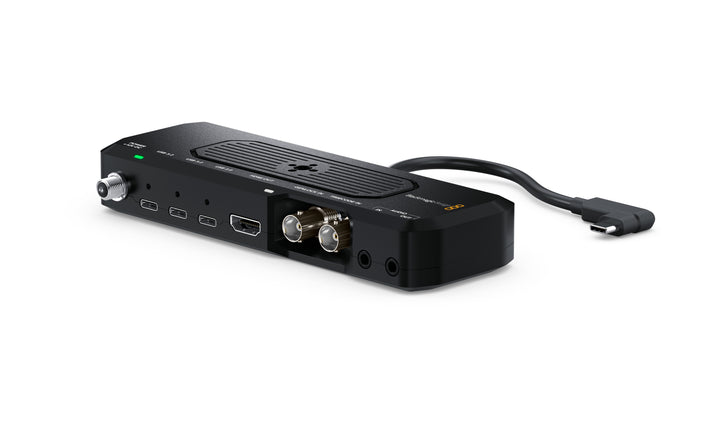

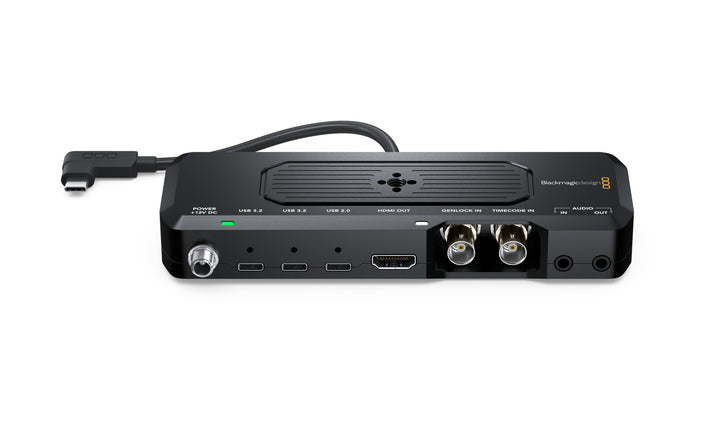

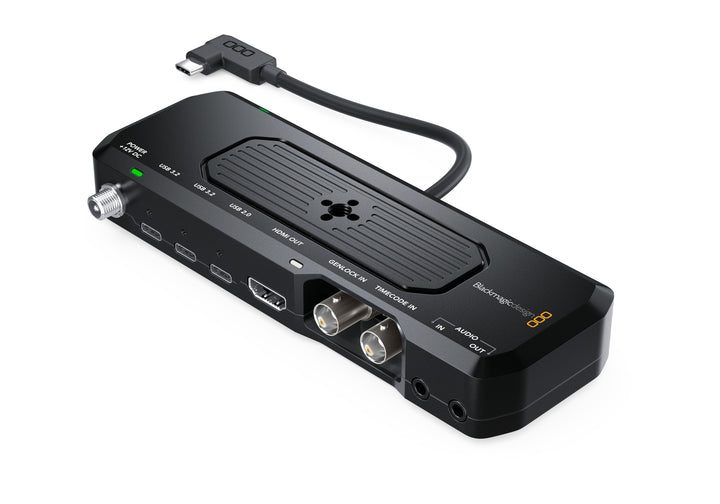

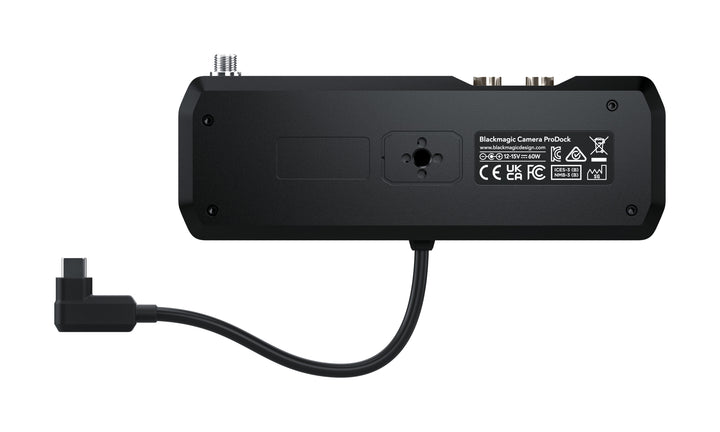

Blackmagic Design Camera ProDock for Apple iPhones

Blackmagic Camera ProDock transforms your iPhone into a professional production camera with all the connections you need to build a custom rig, and it supports the Blackmagic Camera app for iPhone. You get connections for HDMI monitoring, mics, headphones, genlock, USB for external disks, and power.

• Adds professional camera connections to your iPhone
• Supports the Blackmagic Camera app on iPhone for high‑end work
• Optimised for use with iOS 26
• Genlock perfectly synchronises multiple cameras for multicam production
• Synchronises cameras and LED walls for flicker-free virtual production
• External timecode input for syncing multiple iPhone recordings when editing
• Includes USB‑C expansion ports for accessories and external flash disks
• Locking 12V–15V DC input powers ProDock, iPhone and all USB‑C accessories
• Includes 3.5mm stereo input for external camera mics or wireless mics
• Includes 3.5mm stereo audio output for monitoring using headphones
• Includes 1/4”-20 pin lock mounting points on top and bottom for easy rigging

External Genlock for multi-camera production

With professional BNC connections, Blackmagic Camera ProDock supports external genlock and timecode to keep all your cameras in perfect sync. It also lets you shoot LED walls with no distracting flickering or tearing, which is important for virtual production. Support for genlock requires iPhone 17 Pro or iPhone 17 Pro Max and iOS 26.*

• * Support for Genlock available only on iPhone 17 Pro and iPhone 17 Pro Max models. Support for all other features available on iPhone 15 Pro, iPhone 15 Pro Max, iPhone 16 Pro and iPhone 16 Pro Max models.

Add accessories and external disks

With three USB‑C ports, you can connect and control accessories and external SSDs for recording, and the power management will ensure that everything can run at the same time. Includes 3.5mm connections for microphones and headphone monitoring and a full‑size HDMI output for on‑set monitoring.

Compatibility

• iPhone 17 Pro
• iPhone 17 Pro Max
• iPhone 16 Pro
• iPhone 16 Pro Max
• iPhone 15 Pro
• iPhone 15 Pro Max

Specifications

• Connections
  • HDMI Video Outputs:  1x HDMI 2.1 (Type A)
    • Outputs resolution and frame rate set in Blackmagic Camera for iOS
  • Audio Inputs:  1x 3.5mm stereo mini-jack
  • Audio Outputs:  1x 3.5mm stereo mini-jack
  • Timecode Input
    • 1x BNC,
    • 1x 3.5mm audio input supports timecode in
  • Genlock Input:  1x BNC, Tri-Sync or Black Burst
    • Genlock supported on iPhone 17 Pro and iPhone 17 Pro Max
  • USB-C Ports
    • 2x USB 3.2 high speed ports for recording to external media
    • 1x USB 2.0 port for accessories
  • Power:  +12V to +15V DC input with locking 5.5mm barrel connector
  • iPhone Connection:  1x USB-C cable and plug
• Audio
  • Microphone:  Connect external microphones via the3.5mm stereo mini-jack, or USB‑C ports
  • Monitor:  Connect headphones via the3.5mm stereo mini-jack audio output
• Media
  • Record Blackmagic Camera clips to internal iPhone storage or external storage connected by USB
• Display
  • Status Indicator
    • 1x power LED indicator
    • 1x front tally LED indicator
    • 1x genlock LED indicator
• Software
  • Blackmagic Camera for iOS:  Download for free on the App Store
• Operating System
  • Supported on iPhones running iOS 26 or later
  • Genlock available on iPhone 17 Pro and iPhone 17 Pro Max models only
  • Support for all other features available on iPhone 15 Pro, iPhone 15 Pro Max,iPhone 16 Pro, and iPhone 16 Pro Max models
• Power
  • Power Supply:  1x External 12V DC 60W power supply.
  • Power Inputs:  +12V to +15V DC input withlocking 5.5mm barrel connector.
  • Power Outputs:  5V ???? 1.5A 7.5W max output each USB‑C port.
• Environmental
  • Operating Temperature:  0°to 40°C (32° to 104°F)
  • Storage Temperature:  -20°to 45°C (-4° to 113°F)
  • Relative Humidity:  0% to 90% non-condensing
• Physical Specs
  • Cable Length: 11.81 inch (30 cm)
  • Dimensions (HxWxD): 1 x 6.42 x 2.6 inch (2.54 x 16.3 x 6.6 cm)
  • Weight: 0.6 lbs (270 g)

What’s in the Box

• Blackmagic Camera ProDock
• 1/4-inch to 1/4-inch mounting adapter
• 12V 60W power supply
• International adapter plugs
• Welcome wallet with QR code for software download
