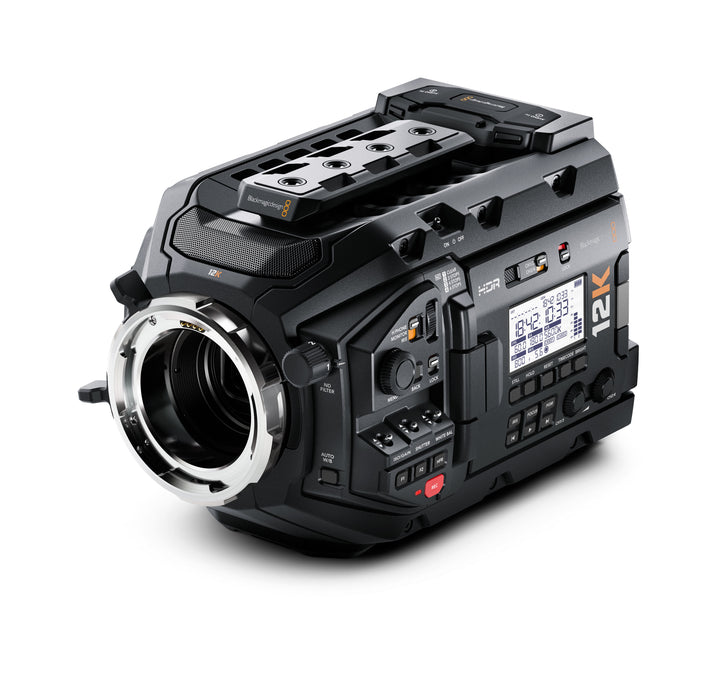

Blackmagic Design URSA Mini Pro 12K Camera

Blackmagic URSA Mini Pro 12K is a revolution in digital film with a 12,288 x 6480 12K Super 35 sensor and 14 stops of dynamic range, built into the award winning URSA Mini body. The combination of 80 megapixels per frame, new color science and the flexibility of Blackmagic RAW makes working with 12K a reality. Oversampling from 12K gives you the best 8K and 4K images with the subtle skin tones and extraordinary detail of high end still cameras. You can shoot at 60 fps in 12K, 110 fps in 8K and up to 220 fps in 4K Super 16. URSA Mini Pro 12K features an interchangeable PL mount, as well as built in ND filters, dual CFast and UHS‑II SD card recorders, a SuperSpeed USB‑C expansion port and more. DaVinci Resolve Studio is included for creative control through post from editing to color, VFX and more!

Digital Film, Extreme Resolution

URSA Mini Pro 12K’s extreme resolution goes well beyond traditional motion picture film! You get the benefits of shooting with film including incredible detail, wide dynamic range and rich, deep color. Perfect for feature films, episodic television and immersive, large format IMAX. The incredible definition around objects makes it ideal for working with green screen and VFX including compositing live action and CGI. Super sampling at 12K means you not only get better color and resolution at 8K, but also a smoothness that comes from making aliasing invisible. This new generation of digital film technology ushers in an analog style purity and subtlety to deliver a better than film experience.

Cinematic Super 35 12K Sensor

The Blackmagic URSA Mini Pro 12K features a revolutionary new sensor with a native resolution of 12,288 x 6480, which is an incredible 80 megapixels per frame! The Super 35 sensor has a superb 14 stops of dynamic range and a native ISO of 800. The new 12K sensor has equal amounts of red, green and blue pixels and is optimized for images at multiple resolutions. You can shoot 12K at 60 fps or use in-sensor scaling to allow 8K or 4K RAW at up to 110 fps without cropping or changing your field of view. URSA Mini Pro’s interchangeable lens mount lets you choose from the widest range of vintage and modern cinema lenses, so you can capture every ounce of character and detail from your favorite optics.

Shoot in 12K, Edit on a Laptop

The URSA Mini Pro 12K sensor and Blackmagic RAW were designed together to make 12 bit RAW workflows in 12K effortless. As an incredibly efficient next generation codec Blackmagic RAW lets you shoot 12K and edit on a laptop, a capability that simply isn’t possible with other codecs. The massive resolution of the sensor means you can reframe shots in post for delivery in 8K and 4K. It’s like a multi camera shoot with only one camera. And it’s perfect for great looking vertical and square video, too. The advanced design of the sensor and Blackmagic RAW means that you can work in any resolution in post production instantly, without rendering, while retaining the full sensor’s color accuracy.

Blackmagic RAW Fueled Image Capture

Only Blackmagic RAW makes cinema quality 12‑bit, 80 megapixel images at up to 60 frames a reality! Constant quality Q0 and Q5 options and new Q1 and Q3 lock the quality level, allowing compression to adapt, matching the detail of the scene. Constant bitrate encoding options 5:1, 8:1, 12:1 and the new 18:1 are designed to give you the best possible images with predictable and consistent file size. You can record RAW to two cards simultaneously so you can shoot 12K or 8K to either CFast or UHS‑II cards, even at high frame rates! Blackmagic RAW stores camera metadata, lens data, white balance, digital slate information and custom LUTs to ensure consistency of image on set and through post production.

Optimized for Fast Flexible Post Production

Shooting RAW in 12K preserves the deepest control of detail, exposure and color during post. Oversampling means you get extremely sharp 8K without harsh edges. Best of all, Blackmagic RAW is designed to accelerate 12K for post production, making it as easy to work with as standard HD or Ultra HD files. It is highly optimized, multi‑threaded, works across multiple CPU cores and is also GPU accelerated to work with Apple Metal, CUDA and OpenCL. So you can always work with your camera RAW files without having to make proxies. Blackmagic RAW 12K images provide unprecedented resolution and quality for color, keying, compositing, reframing, stabilization and tracking in 4K or 8K.

Color Science

Blackmagic Generation 5 Color Science features a new film curve designed to make full use of the massive amount of color data from the new URSA Mini Pro 12K sensor. This delivers even better color response for more pleasing skin tones, and better rendering of highly saturated colors such as neon signs and car tail lights in high contrast scenes. Generation 5 Color Science informs complex Blackmagic RAW image processing, with color and dynamic range data from the sensor preserved via metadata for use in post production. Compatible with all previously shot Blackmagic RAW files, Generation 5 Color Science lets you take advantage of the new film curve even with your existing work!

Full Resolution at Higher Frame Rates

URSA Mini Pro 12K is multiple cameras in one, shooting standard resolutions and frame rates in 4K, 8K and even insanely detailed 12K! With a massive 80 megapixels per frame at 60 fps in RAW you can capture perfect stills and motion shots in a single camera at the same time! You can shoot up to 60 fps in 12K 12,288 x 6480 17:9! For higher frame rates, you can shoot 110 fps at 8192 x 4320, 140 fps at 8192 x 3408 and even window the sensor to Super 16 to capture 4K at an incredible 220 fps at 4096 x 2160 DCI! URSA Mini Pro 12K has flexible frame rate and resolution options, and captures with improved motion rendering which means that you get smoother edges in 8K and 4K even at lower frame rates.

High Band Width Recording

URSA Mini Pro is the ultimate high bandwidth recorder with 3 options for recording 12K, which contains almost 10 times the resolution of Ultra HD. You get dual built in CFast and UHS‑II SD card recorders, and a SuperSpeed USB‑C expansion port for recording to fast SATA and NVMe drives. With "Record RAW on 2 Cards" turned on, URSA Mini Pro 12K can record simultaneously across two cards up to an incredible 900MB/s to 2 CFast cards, or an impressive 500MB/s to 2 UHS‑II SD cards. The SuperSpeed USB‑C expansion port on the rear can record to USB‑C flash storage up to 900MB/s as a third recording option so you won’t be short of choices for capturing stunning 12K up to 60 fps or 8K up to 110 fps!

URSA Mini Pro 12K

Featuring a revolutionary 12,288 x 6,480 Super 35mm sensor with PL mount as standard, the URSA Mini Pro 12K has extra resolution for high end production. With a massive 80 megapixels per frame at 60 fps in RAW, you can capture perfect stills and motion shots in a single camera! URSA Mini Pro 12K also includes a SuperSpeed USB-C 3.1 Gen 2 expansion port for recording to incredibly fast NVMe SSDs.

Camera Features

• Effective Sensor Size: 27.03mm x 14.25mm (Super35)
• Lens Mount: PL mount included. Interchangeable with optional EF and F lens mounts.
• Lens Control: 12pin broadcast connector for compatible lenses and electronic control via EF mount pins on optional EF lens mount.
• Dynamic Range: 14 Stops
• Shooting Resolutions:
  • 12,288 x 6480 (12K DCI)
  • 11,520 x 6480 (12K 16:9)
  • 12,288 x 5112 (12K 2.4:1)
  • 7680 x 6408 (12K Anamorphic)
  • 8192 x 4320 (8K DCI)
  • 7680 x 4320 (8K 16:9)
  • 8192 x 3408 (8K 2.4:1)
  • 5120 x 4272 (8K Anamorphic)
  • 6144 x 3240 (6K Super16)
  • 4096 x 2160 (4K Super16)
  • 4096 x 2160 (4K DCI)
  • 3840 x 2160 (4K 16:9)
  • 4096 x 1704 (4K 2.4:1)
  • 2560 x 2136 (4K Anamorphic)
• Frame Rates: Maximum sensor frame rate dependent on resolution selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported.
• High Speed Frame Rates
  • 12K 17:9 full sensor up to 60 fps
  • 8K DCI full sensor up to 110 fps
  • 4K DCI full sensor up to 110 fps
  • 8K 2.4:1 and 4K 2.4:1 up to 140 fps
  • 6K Super 16 up to 120 fps
  • 4K Super 16 up to 220 fps
• Built in ND Filters: Four position ND filter wheel with clear, 2-stop, 4-stop and 6-stop IR ND filters.
• Focus: Focus button turns on peaking, auto focus available using compatible lenses.
• Iris Control: Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode.
• Screen Dimensions: 4 inch
• Screen Type: LCD capacitive touchscreen.
• Metadata Support: Automatically populated lens data from i/Technology with compatible PL lenses and electronic EF lenses when using optional EF lens mount. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.
• Controls: Touchscreen menus on 4 inch screen. Push buttons for other controls. 3 assignable shortcut keys.
• Timecode Clock: Highly accurate timecode clock. Less than 1 frame drift every 8 hours.

Connections

• Total Video Inputs: 1 x 12G-SDI
• Total Video Outputs: 1 x 12G-SDI, 1 x 3G-SDI Monitoring.
• SDI Rates: 1.5G, 3G, 6G, 12G.
• Analog Audio Inputs: 2 x XLR analog switchable between mic, line and AES audio. Phantom power support.
• Analog Audio Outputs: 1 x 3.5mm headphone jack, supports iPhone microphone for talkback.
• Reference Inputs: Tri-Sync/Black Burst/Timecode.
• Remote Control: 1 x 2.5mm LANC input for Rec Start/Stop, plus Iris and Focus control using compatible lenses.
• Computer Interface:
  • 1 x USB Type-C 3.1 Gen 2 with power delivery for external drive recording.
  • 1 x USB Type-C for software updates.

Audio

• Microphone: Integrated stereo microphone.
• Built in Speaker: 1 x mono speaker.

Standards

• SD Video Standards: None.
• HD Video Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
• SDI Compliance: SMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1
• SDI Audio Sampling: 48 kHz and 24 bit

Media

• 2 x CFast 2.0 card slots, 2 x SD UHS-II card slots, 1 x USB-C 3.1 Gen 2 expansion port with power delivery for recording to external media.
• Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.

Supported Codecs

• Blackmagic RAW Constant Bitrate 5:1,
• Blackmagic RAW Constant Bitrate 8:1,
• Blackmagic RAW Constant Bitrate 12:1,
• Blackmagic RAW Constant Bitrate 18:1,
• Blackmagic RAW Constant Quality Q0,
• Blackmagic RAW Constant Quality Q1,
• Blackmagic RAW Constant Quality Q3,
• Blackmagic RAW Constant Quality Q5.

Control

• Blackmagic SDI Camera Control Protocol, iPad control, Bluetooth control, 1 x 2.5mm LANC for lens and record control.

Talkback and Tally

• Talkback: SDI Channels 15/16 and iPhone headset.
• Live Tally Indicator: Tally on LCD, URSA Viewfinder and URSA Studio Viewfinder.

Storage Features

• Storage Type
  • 2 x CFast 2.0
  • 2 x SD UHS-II cards
  • 1 x high speed USB-C expansion port for external media.

Storage Rates - Storage rates based on 24 frames per second.

• 12K - 12,288 x 6480
  • Blackmagic RAW 5:1 - 578 MB/s
  • Blackmagic RAW 8:1 - 361 MB/s
  • Blackmagic RAW 12:1 - 241 MB/s
  • Blackmagic RAW 18:1 - 160 MB/s
  • Blackmagic RAW Q0 - 241 to 578 MB/s 1
  • Blackmagic RAW Q1 - 144 to 361 MB/s 2
  • Blackmagic RAW Q3 - 96 to 241 MB/s 3
  • Blackmagic RAW Q5 - 72 to 180 MB/s 4
• 8K - 8192 x 4320
  • Blackmagic RAW 5:1 - 258 MB/s
  • Blackmagic RAW 8:1 - 161 MB/s
  • Blackmagic RAW 12:1 - 107 MB/s
  • Blackmagic RAW 18:1 - 72 MB/s
  • Blackmagic RAW Q0 - 107 to 258 MB/s 1
  • Blackmagic RAW Q1 - 64 to 161 MB/s 2
  • Blackmagic RAW Q3 - 43 to 107 MB/s 3
  • Blackmagic RAW Q5 - 32 to 81 MB/s 4
• 6K - 6144 x 3240
  • Blackmagic RAW 5:1 - 145 MB/s
  • Blackmagic RAW 8:1 - 91 MB/s
  • Blackmagic RAW 12:1 - 61 MB/s
  • Blackmagic RAW 18:1 - 40 MB/s
  • Blackmagic RAW Q0 - 61 to 145 MB/s 1
  • Blackmagic RAW Q1 - 36 to 91 MB/s 2
  • Blackmagic RAW Q3 - 24 to 61 MB/s 3
  • Blackmagic RAW Q5 - 18 to 45 MB/s 4
• 4K - 4096 x 2160
  • Blackmagic RAW 5:1 - 65 MB/s
  • Blackmagic RAW 8:1 - 41 MB/s
  • Blackmagic RAW 12:1 - 27 MB/s
  • Blackmagic RAW 18:1 - 18 MB/s
  • Blackmagic RAW Q0 - 27 to 65 MB/s 1
  • Blackmagic RAW Q1 - 16 to 41 MB/s 2
  • Blackmagic RAW Q3 - 11 to 27 MB/s 3
  • Blackmagic RAW Q5 - 8 to 20 MB/s 4

Recording Formats

• Blackmagic RAW Q0, Q1, Q3, Q5, 5:1, 8:1, 12:1 and 18:1 at 12,288 x 6480, 11,520 x 6480, 12,288 x 5112, 7680 x 6408, 8192 x 4320, 7680 x 4320, 8192 x 3408, 5120 x 4272, 6144 x 3240, 4096 x 2160, 3840 x 2160, 4096 x 1704 and 2560 x 2136 stored as 12 bit non-linear with film, extended video, video or custom 3D LUT embedded in metadata.

What's Included

1. Blackmagic URSA Mini Pro 12K Body
2. Turret dust cap
3. PL lens mount
4. Power supply
5. DaVinci Resolve Studio activation key
