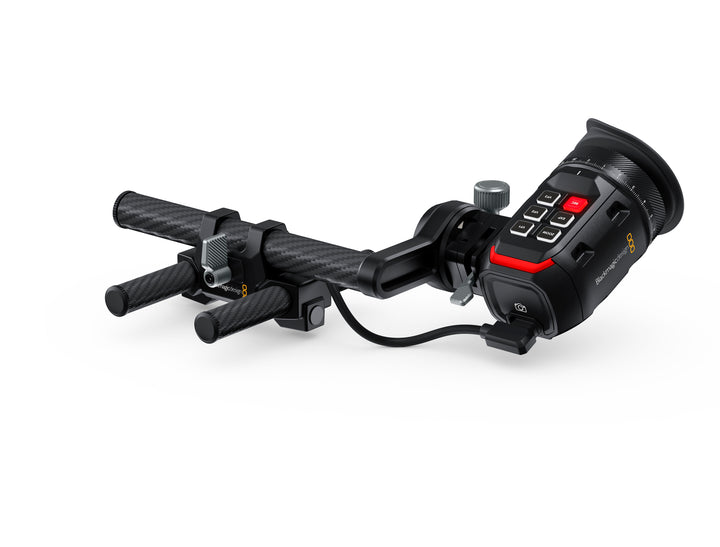

Blackmagic Design URSA Cine EVF Attachment

Blackmagic URSA Cine EVF makes outdoors and handheld shooting with your Blackmagic URSA Cine or Blackmagic PYXIS digital film camera easy! You get a high quality 1920 x 1080 color OLED display with 4 element glass diopter for incredible accuracy with a wide focus adjustment, assignable function buttons and more. URSA Cine EVF is easy to set up with a single USB-C cable connection for video, power and camera control and can be position in multiple different ways. It also includes an extension arm to position it on a dolly or geared head.

Specifications

• Connections
  • Video Inputs -  USB-C
  • Power Input -  USB-C
  • Data Input / Output -  USB-C
  • Computer Interface -  USB-C for software updates.
• Features
  • Display Resolution -  Full 1920 x 1080.
  • Frame Rates -  Up to 60fps
  • Display Type -  OLED
  • Display Pixels -  6.22 Million Pixels
  • Color Precision -  SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M 2084.
  • Focus -  4 Element diopter.
  • Diopter Range -  -5 to +5
  • Controls
    • Record button, Exposure Button, Zoom Button
    • 3 x assignable VF buttons.
  • Overlays -  Built in overlay display processor and top mounted buttons.
  • Eyepiece -  Can be tilted vertically and extended for left or right eye use.
  • Tally -  LED tally light.
  • Mounting Options -  Fully adjustable EVF mounting kit included. Blackmagic URSA Cine Handle is required for mounting to Blackmagic URSA Cine and Blackmagic PYXIS 6K cameras. Blackmagic URSA Cine EVF Extension compatible with standard extended viewfinder supports.
  • Metadata Support -  Displays and sends camera data and settings over USB to Blackmagic URSA Cine and Blackmagic PYXIS 6K cameras.
• Operating Systems
  • Mac 13.0 Ventura,
  • Mac 14.0 Sonoma or later.
  • Windows 10 and 11.
• Power Requirements
  • Powered over USB-C.
• Environmental Specifications
  • Operating Temperature -  0° to 40° C (32° to 104° F)
  • Storage Temperature -  -20° to 60° C (-4° to 140° F)
  • Relative Humidity -  0% to 90% non-condensing

What's Included

• Blackmagic URSA Cine EVF
• Blackmagic URSA Cine EVF Rotating bracket with 19mm carbon fibre rod
• Blackmagic URSA Cine EVF Bracket rod mount
• Blackmagic URSA Cine EVF Extension
• 2 short carbon fibre 15mm rods
• 1 short right angle to right angle USB Viewfinder cable
• 1 short right angle to straight USB Viewfinder cable
• 1 long right angle to straight USB Viewfinder cable
• Rubber eyecup
• Fabric eye chamois
• Blackmagic Sticker
• Welcome wallet with QR code for software download
