Blackmagic Design Pocket Cinema Camera 6K Pro

The Blackmagic Pocket Cinema Camera 6K Pro is an advanced technology, handheld 6K digital film camera with 6144 x 3456 Super 35 high resolution HDR sensor, dual native ISO, EF lens mount and direct recording to USB‑C disks! This powerful model adds an adjustable HDR touchscreen, built in ND filters, and a larger NP-F570 battery for longer run time. You can even add an optional OLED viewfinder!

Camera Features

• Effective Sensor Size: 23.10mm x 12.99mm (Super 35)

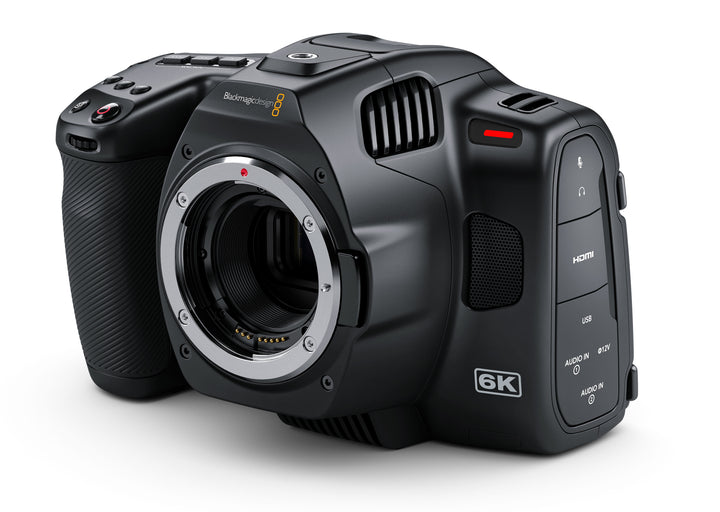

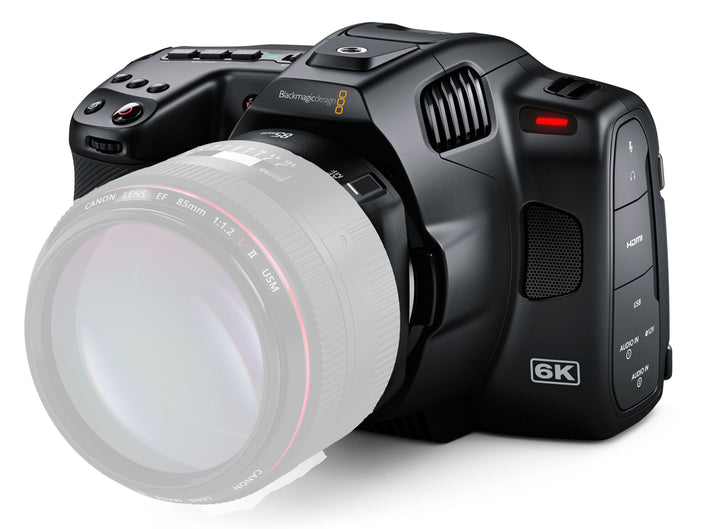

• Lens Mount: Active EF mount.
• Lens Control: Iris, focus and zoom on supported lenses.
• Dynamic Range: 13 Stops.
• Dual Native ISO: 400 and 3200
• Shooting Resolutions
  • 6144 x 3456 (6K) up to 50 fps
  • 6144 x 2560 (6K 2.4:1) up to 60 fps
  • 5744 x 3024 (5.7K 17:9) up to 60 fps
  • 4096 x 2160 (4K DCI) up to 60 fps
  • 3840 x 2160 (Ultra HD) up to 60 fps
  • 3728 x 3104 (3.7K 6:5 anamorphic) up to 60 fps
  • 2868 x 1512 (2.8K 17:9) up to 120 fps
  • 1920 x 1080 (HD) up to 120 fps
• Frame Rates
  • Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported.
  • Off-speed frame rates up to 60 fps in 6K 2.4:1, 120 fps in 2.8K 17:9 and 1080HD.
• Built in ND Filters: Four position ND filter with clear, 2‑stop, 4‑stop and 6‑stop IR ND filters.
• Focus: Auto focus available using compatible lenses.
• Iris Control: Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses.

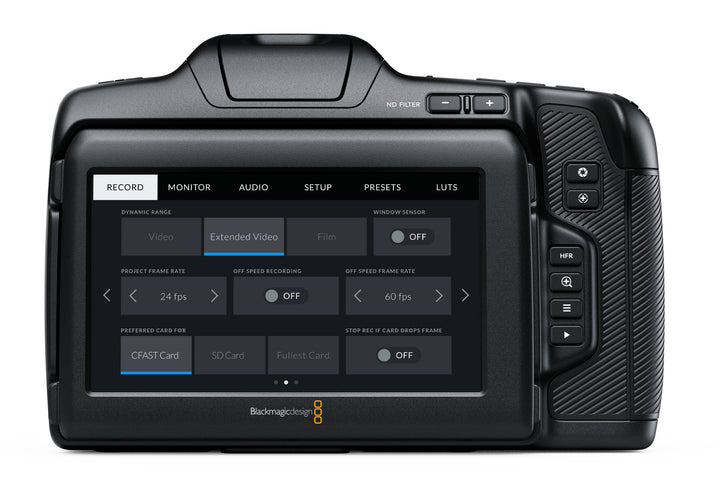

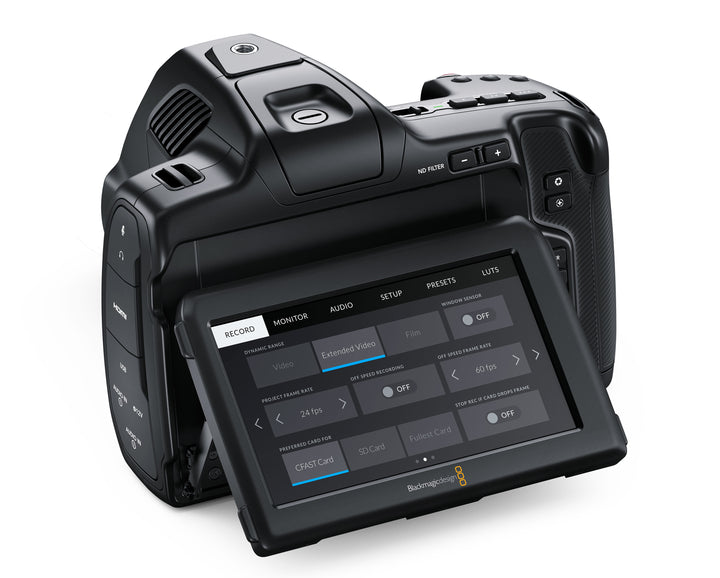

• Screen Dimensions: 5” 1920 x 1080.
• Screen Brightness: 1500nits
• Screen Type: LCD capacitive touchscreen.
• Metadata Support: Automatically populated lens data from electronic EF lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes. A 3D LUT can also be embedded in metadata of Blackmagic RAW files.
• Controls
  • Touchscreen menus on 5 inch screen. 1 x Power Switch, 1 x Record Button, 1 x Stills Button, 1 x Scroll Wheel with push integrated into handgrip, 1 x ISO Button, 1 x White Balance, 1 x Shutter Button, 3 x software configurable Fn buttons, 2 x ND filter button, 1 x Focus Button, 1 x IRIS Button, 1 x High Frame Rate (HFR) Button, 1 x Zoom Button, 1 x Menu Button and 1 x Playback Button.
• Timecode Clock: Highly accurate timecode clock. Less than 1 frame drift every 8 hours.

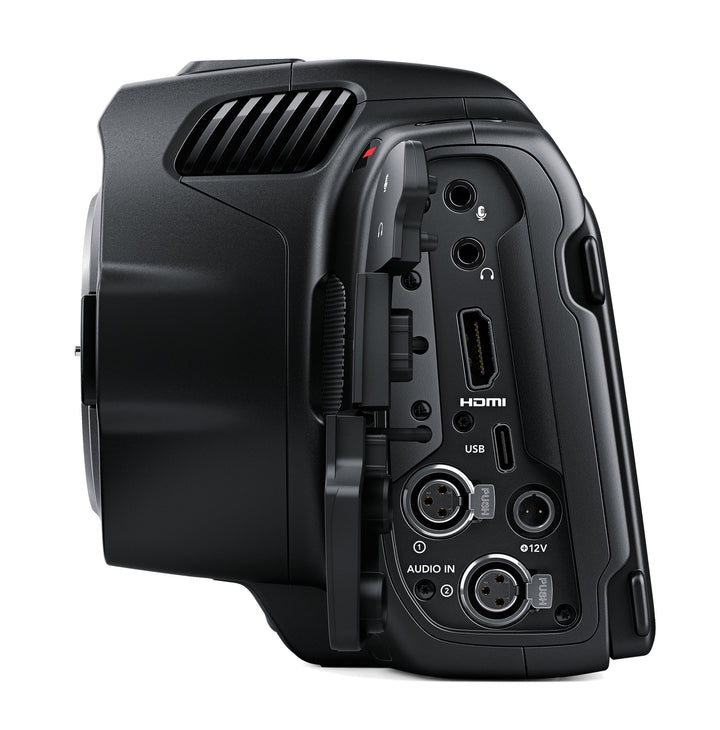

Connections

• Total Video Inputs: None
• Total Video Outputs: 1 x HDMI up to 1080p60
• Analog Audio Inputs
  • 2 x mini XLR analog switchable between mic with phantom power support and line level (up to +14dBu). 1 x 3.5mm Stereo Input. Can also be used for Timecode input.
• Analog Audio Outputs: 1 x 3.5mm headphone jack.
• Computer Interface: USB Type-C for external drive recording, PTP camera control and software updates

Audio

• Microphone: Integrated stereo microphone.
• Built in Speaker: 1 x mono speaker.

Standards

• SD Video Standards: None
• HD Video Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
• 4K DCI Standards: 4KDCIp23.98, 4KDCIp24, 4KDCIp25, 4KDCIp29.97, 4KDCIp30, 4KDCIp50, 4KDCIp59.94, 4KDCIp60

Media

• 1 x CFast card slot, 1 x SD UHS‑II card slot, 1 x USB-C 3.1 Gen 1 expansion port for external media for Blackmagic RAW and ProRes Recording.
• Media Format: Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.

External Control

iPad control, Bluetooth control, USB PTP camera control. External control of some camera settings, focus, iris and zoom with compatible lenses, color corrector, tally and internal record start and stop when used with a compatible ATEM and ATEM Software Control.
