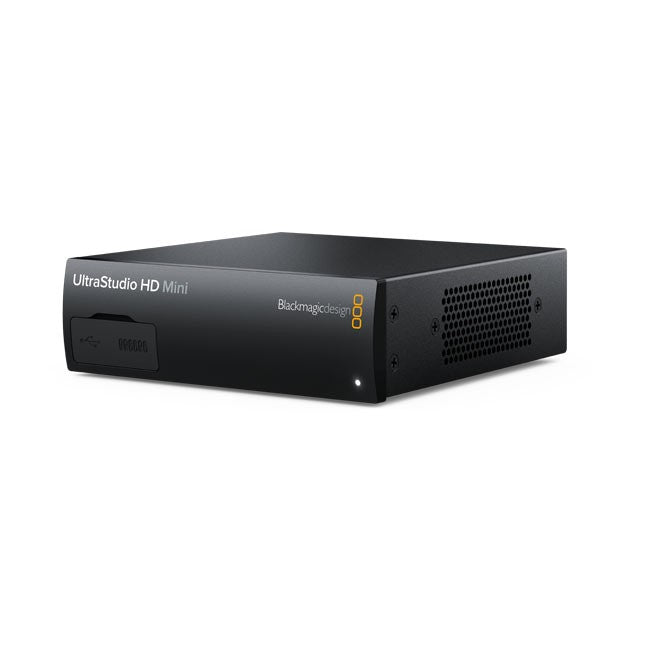

Blackmagic UltraStudio HD Mini (Thunderbolt 3)
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm financing is available for most products. To access flexible payment options, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Description
UltraStudio HD Mini features professional broadcast quality connections that include 3G-SDI, analog YUV and composite NTSC/PAL video inputs, along with a reference input. There are also two ¼” audio connections for analog audio input that work with balanced and HiFi sources. In addition, UltraStudio HD Mini can remote control professional broadcast decks using the built in RS-422 connection. For output, you get dual link 3G-SDI with fill and key, and an HDMI connection for monitoring video with a big screen television!
Powered by Thunderbolt cable. Requires computer with a Thunderbolt™ 3 port.
Connections
- SDI Video Inputs: 1 x 3Gb/s SD/HD switchable.
- SDI Video Outputs: 2 x 3Gb/s SD/HD switchable, supports fill and key.
- SDI Rates: 270Mb, 1.5G, 3G
- Optical SDI: None
- HDMI Video Inputs: None
- HDMI Video Outputs: 1 x HDMI 1.4b type A connector.
- Analog Video Inputs: Y, B-Y, R-Y/NTSC/PAL.
- Analog Video Outputs: None
- Analog Audio Inputs: 2 x 1/4 inch jack connectors for balanced and unbalanced analog audio.
- Analog Audio Outputs: None, embedded audio only.
- SDI Audio Inputs: 16 Channels embedded in SD and HD.
- SDI Audio Outputs: 16 Channels embedded in SD and HD.
- HDMI Audio Outputs: 2 Channels embedded in SD and HD.
- Timecode Connection: None. RP-188 only.
- Reference Input: Tri-Sync or Black Burst.
Video Standards
- SD Video Standards
- 525i59.94 NTSC, 625i50 PAL
- HD Video Standards
- 720p50, 720p59.94, 720p60
- 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
- 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
- 1080i50, 1080i59.94, 1080i60
- 2K Video Standards
- 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
- Ultra HD Video Standards
- None
- 4K Video Standards
- None
- SDI Compliance
- SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M and SMPTE 425M A/B.
- SDI Metadata Support
- RP 188/SMPTE 12M-2 and closed captioning.
- Audio Sampling
- Television rate of 48kHz and 24 bit.
- SDI Video Sampling
- 4:2:2/4:4:4
- Color Space
- REC 601, REC 709.
- HDMI Resolution
- Pixel for pixel HD resolution input from connected device.
- Multiple Rate support
- SDI and HDMI video connections are switchable between standard definition and high definition. SDI switches between 270 Mb/s, 1.5 Gb/s and 3 Gb/s.
