Description

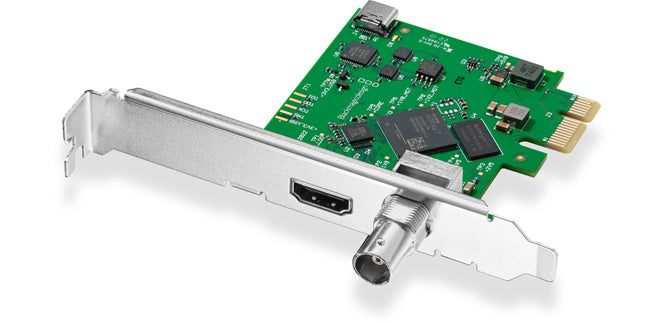

Get broadcast quality HDMI and SDI video capture for your PCIe computer! DeckLink Mini Recorder HD features 3G-SDI and HDMI 2.0 for recording SD and HD formats up to 1080p60 and 2Kp60 DCI! You get a broadcast quality capture card that’s compatible with virtually all SD and HD equipment and popular video software such as DaVinci Resolve and more!
Connections
- SDI Video Input: 1 x 10-bit SD/HD switchable
- SDI Rates: 270Mb, 1.5G, 3G
- SDI Audio Input: 16 channels embedded in SD/HD
- HDMI Video Input: 1 x HDMI 2.0 type A connector
- HDMI Audio Input: 8 channels embedded in SD/HD
- Computer Interface: PCI Express 1 lane generation 2, compatible with 1, 4, 8 and 16 lane PCI Express slots.
SDI Video Standards
- SDI Video Standards: 525i59.94 NTSC, 625i50 PAL
- HD Video Standards:
- 720p50, 720p59.94, 720p60
- 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
- 1080i50, 1080i59.94, 1080i60
- 2K Video Standards:
- 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
- 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
- SDI Compliance: SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M and SMPTE 425M A/B
- SDI Metadata Support: RP 188/SMPTE 12M-2 and closed captioning.
- SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.
- SDI Video Sampling: 4:2:2, 4:4:4
- SDI Color Precision: 8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards.
- SDI Color Space: REC 601, REC 709 and REC 2020
- Multiple Rate Support: SDI video connection is switchable between SD and HD.
HDMI Video Standards
- SDI Video Standards: 525i59.94 NTSC, 625i50 PAL
- HD Video Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
- HDMI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
- HDMI Video Sampling: 4:2:2 and 4:4:4
- HDMI Color Precision: 8-bit RGB 4:4:4, 8-bit YUV 4:4:4 and 12-bit YUV 4:2:2 in all standards.
- HDMI Configuration: HDMI 2.0 supports Deep Color.
- HDMI Color Space: REC 601, REC 709 and REC 2020
- Multiple Rate Support: HDMI video connection is switchable between SD and HD.
- Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
