Description

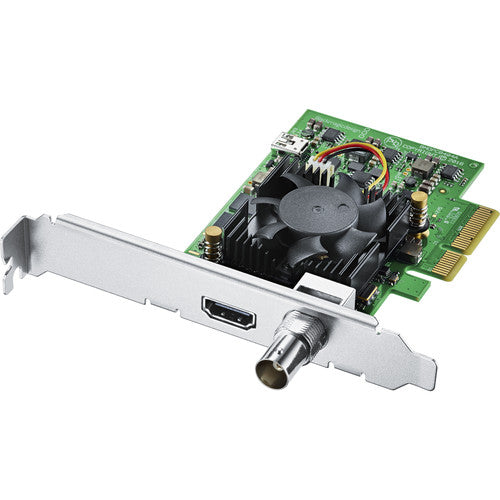

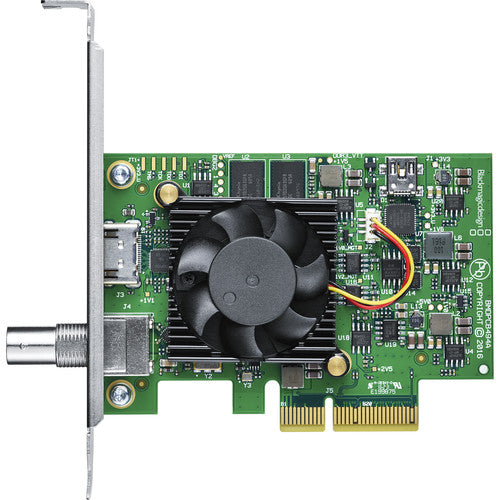

DeckLink Mini Monitor 4K is a low profile PCIe playback card, featuring 6G-SDI and the latest HDMI 2.0a connections so you can monitor all formats up to 2160p30 from your computer! The SDI and HDMI outputs let you connect to any television or monitor and automatically detect and switch between all video formats. You even get high dynamic range playback and metadata over HDMI, along with support for Rec. 2020 color space. You can even develop your own custom playback solutions using the Blackmagic Desktop Video SDK for Mac OS X, Windows and Linux! Includes two PCIe shields for both full height and low profile slots.
Connections:
- SDI Video Output: 1 x 10 bit SD/HD/Ultra HD switchable.
- SDI Audio Output: 16 channels embedded in SD, HD, Ultra HD.
- HDMI Video Output: 1 x HDMI 2.0a connector.
- HDMI Audio Output: 8 Channels embedded in SD, HD, Ultra HD.
- Computer Interface: Gen 2 PCIe Express 4 lane, compatible with 4, 8 and 16 lane PCIe slots.
Supports: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2.
Software Included
- Media Express, Disk Speed Test, LiveKey, Blackmagic System Preferences and Blackmagic driver on Mac OS X and Windows.
Physical Installation
- PCI Express 4 lane, compatible with 4, 8 and 16 lane PCI Express slots on Mac OS X, Windows and Linux. Mac OS X systems require a Mac Pro computer with PCI Express slots.
Video Standards:
- SD Format Support: 525i59.94 NTSC, 625i50 PAL
- HD Format Support:
- 720p50, 720p59.94, 720p60
- 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
- 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
- 1080i50, 1080i59.94, 1080i60
- Ultra HD Format Support: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
- 4K DCI Format Support: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
- SDI Compliance: SMPTE 259M and 292M.
- Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
- Video Sampling: 4:2:2
- Color Precision: 10-bit
- Color Space: REC 601, REC 709, REC 2020
- HDMI Configuration: HDMI automatically configures to connected display.
- HDMI Resolution: Pixel for pixel HD resolution input to connected device.
- HDMI Color Precision: 10-bit
- Multiple Rate support: SDI and HDMI are switchable between standard definitlon and high definition.
