Description

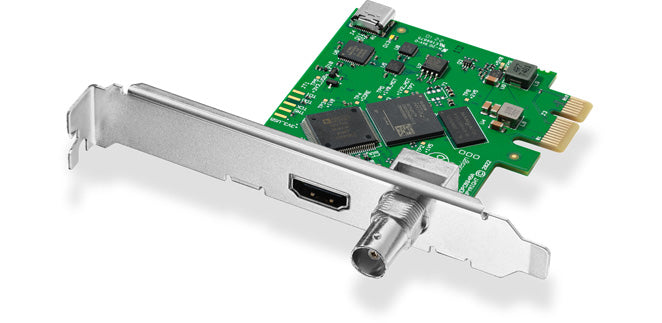

Get broadcast quality HDMI and SDI video playback and monitoring from your PCIe computer! DeckLink Mini Monitor HD includes 3G-SDI and HDMI 2.0 that let you connect to any television, monitor or projector for broadcast monitoring, including the latest high dynamic range (HDR) formats! Works with software such as DaVinci Resolve, Final Cut Pro and more.
Connections
- SDI Video Output: 1 x 10-bit SD/HD switchable
- SDI Rates: 270Mb, 1.5G, 3G
- SDI Audio Output: 16 channels embedded in SD/HD
- HDMI Video Output: 1 x HDMI 2.0 type A connector
- HDMI Audio Output: 8 channels embedded in SD/HD
- Computer Interface: PCI Express 1 lane generation 2, compatible with 1, 4, 8 and 16 lane PCI Express slots.
SDI Video Standards
- SDI Video Standards: 525i59.94 NTSC, 625i50 PAL
- HD Video Standards
- 720p50, 720p59.94, 720p60
- 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
- 1080i50, 1080i59.94, 1080i60
- 2K Video Standards
- 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI,2Kp60 DCI
- 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
- SDI Compliance: SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M A/B and SMPTE ST2108–1
- SDI Metadata Support: RP 188/SMPTE 12M-2 and closed captioning.
- SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.
- SDI Video Sampling: 4:2:2, 4:4:4
- SDI Color Precision: 8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards.
- SDI Color Space: REC 601, REC 709 and REC 2020
- SDI HDR Support: HDR metadata packing, HLG and PQ transfer characteristics.
- Multiple Rate Support: SDI video connection is switchable between SD and HD.
HDMI Video Standards
- SDI Video Standards: 525i59.94 NTSC, 625i50 PAL
- HD Video Standards
- 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
- HDMI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
- HDMI Video Sampling: 4:2:2 and 4:4:4
- HDMI Color Precision: 10, 12-bit RGB 4:4:4 up to 1080p30, 8-bit RGB 4:4:4 and 12-bit YUV 4:2:2 in all standards.
- HDMI Configuration: HDMI 2.0 supports Deep Color and HDR. Automatically configures to connected display.
- HDMI Color Space: REC 601, REC 709 and REC 2020
- HDMI HDR Support: HDR metadata packing, HLG and PQ transfer characteristics.
- Multiple Rate Support: HDMI video connection is switchable between SD and HD.
