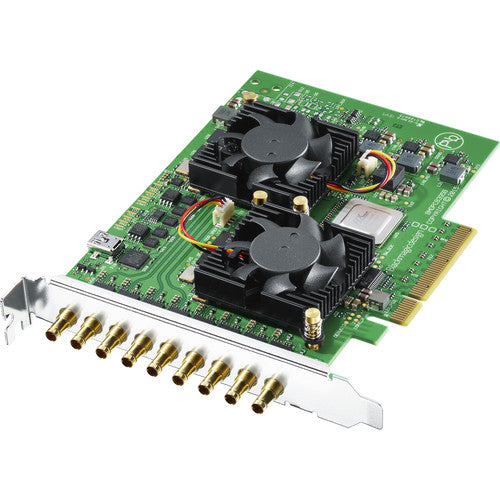

Blackmagic Design DeckLink Quad 2

Eight channel configurable PCIe video capture and playback up to 1080p60.

This new model of DeckLink Quad 2 features 8 independent 3G-SDI connections so it can now work in high HD frame rates and it supports SDI formats in SD and HD up to 1080p60. Each SDI connection is completely independent, meaning that each of the 8 connections can input or output entirely different video standards and content streams, all at the same time. DeckLink Quad 2 can also capture and playback at the same time, and also includes a reference connection for black burst/tri-sync. Developers can use the SDK to configure the eight SDI connections to be any combination of inputs and outputs.

Featuring the latest, high performance 8 lane generation 2 PCI Express, DeckLink Quad 2 takes up only one single PCI slot in the computer, which makes it the perfect solution for system integrators and developers that need completely customizable, flexible I/O configurations on a single card. DeckLink Quad 2 appears as 8 independent SDI cards to the host computer, even though it only uses a single PCI Express slot and is ideal for use in servers that need to handle multiple video streams for both simultaneous capture and playback.

“Developers building playback servers have been asking us for ways to reduce equipment size,” said Grant Petty, CEO, Blackmagic Design. “The new DeckLink Quad 2 is exciting because it’s like getting 8 independent SDI capture and playback cards in one! Best of all, the new SDK lets OEMs and developers control each SDI connection independently for incredible flexibility. This means customers can have any combination of inputs or outputs and for example they could have 8 inputs or 8 outputs or 1 input with 7 outputs or simply 4 inputs and 4 outputs. It’s really their choice and they can use the one card even when the systems they are building could vary from customer to customer.”

Connections

• SDI Video Inputs: 8 x bi-directional 12-bit SD/HD independently configurable as either Input or Output. DIN 1.0 / 2.3 Connectors
• SDI Video Outputs: 8 x bi-directional 12-bit SD/HD independently configurable as either Output or Input. DIN 1.0 / 2.3 Connectors
• SDI Audio Inputs: 16 channels embedded in SD and HD.
• SDI Audio Outputs: 16 channels embedded in SD and HD.
• Sync Input: Tri-Sync or Black Burst.
• Computer Interface: PCI Express 8 lane generation 2, compatible with 8 and 16 lane PCI Express slots.

Video Standards

• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards:
  • 720p50, 720p59.94, 720p60
  • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  • 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
  • 1080i50, 1080i59.94, 1080i60
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601.
• SDI Metadata Support: RP 188/SMPTE 12M-2 and closed captioning.
• Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
• SDI Color Precision: 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. 12-bit RGB 4:4:4 only supported in playback.
• SDI Video Sampling: 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. 12-bit RGB 4:4:4 only supported in playback.
• Color Space: REC 601, REC 709.
