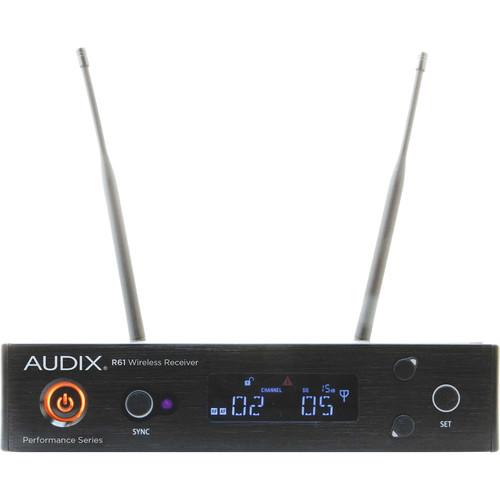

R61Kit Single-Channel Wireless True Diversity Receiver

The Audix R61 Kit is a Performance Series single-channel true diversity receiver designed to deliver enhanced range and easy configuration for musicians, vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 207 pre-coordinated frequencies across 64 MHz of bandwidth in the 522 to 586 MHz frequency band. Use one wireless microphone (available separately) from up to 450' away. One-touch sync and auto scan functions provide simple and efficient setup.

The high-contrast LCD shows a host of information such as battery level, frequency, and AF/RF signal strength, which can be optimized via adjustable AF and RF gain. XLR and 1/4" outputs allow compatible connectivity with the balanced or unbalanced inputs on your mixing console. The R61 Kit ships with two antennas, two BNC cables, a carrying case, an audio cable, one power supply, and a rackmount kit.

• Incorporate up to 24 systems to use 24 unique channels simultaneously
• Single-channel receiver supports one wireless microphone
• 64 MHz wide spectrum tuning
• 207 pre-coordinated frequencies
• 2560 tunable frequencies
• High-contrast LCD shows RF and AF signal strength, group/channel/frequency, level/squelch, battery level, and more
• One-touch sync via infrared
• One-touch scan eliminates inefficient manual tuning
• Ground-lift switch helps eliminate ground loops or hum
• Metal strain relief for power cable
• Adjustable AF and RF level
• Selectable receiver lock disables the scan, sync, and power buttons
• Selectable transmitter lock prevents the transmitter from being accidentally muted or powered off
• Allows front- or rear-mount antenna configurations

SPECIFICATIONS

• Frequency Band 522 to 586 MHz
• Bandwidth 64 MHz
• # Of Simultaneous Systems Up to 24
• Switchable Frequencies 207 pre-coordinated frequencies
• Reception Frequencies 2560 tunable frequencies (spaced 25 kHz apart)
• Wireless Range Up to 450' / 137 m
• Antenna Connector 2 x BNC (8 VDC, 150 mA)
• Outputs 1 x XLR 3-pin balanced
• 1 x 1/4" TS unbalanced
• Audio Output Level XLR: -12 dBV at 25 kHz deviation, 600-Ohm load, +6 gain
• 1/4": -18 dBV at 25 kHz deviation, 10-Ohm load, +6 gain
• Audio Level Control -12 to +9 dB in 3-dB steps
• Frequency Response 45 Hz to 18 kHz
• Compander 2:1
• Pilot Tone 32 kHz
• Receiving System Dual tuner, true diversity
• Signal to Noise Ratio 112 dB at 30 kHz deviation (A-weighted)
• Total Harmonic Distortion (THD) <0.4% (33 kHz deviation at 1 kHz)
• Sensitivity 5 dBµV (S/N 60 dB at 25 kHz deviation, A-weighted)
• Power Requirement 100 to 240 VAC, 50/60 Hz, 12 VDC, 1 A
• Enclosure Material Metal
• Dimensions (W x D x H) 8.1 x 8.1 x 1.7" / 205 x 206 x 44 mm
• Weight 2.4 lb / 1.1 kg
