ATS1 Mic Table Stand

FEATURES

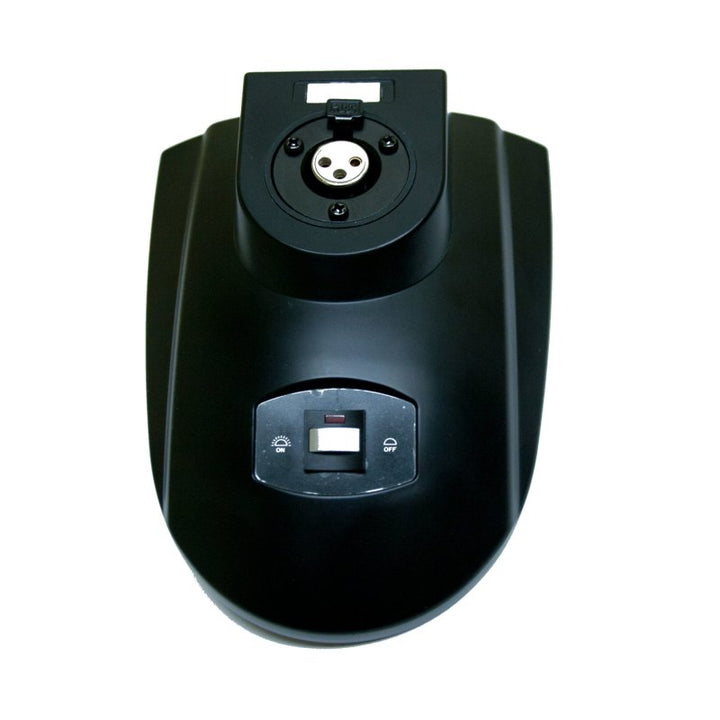

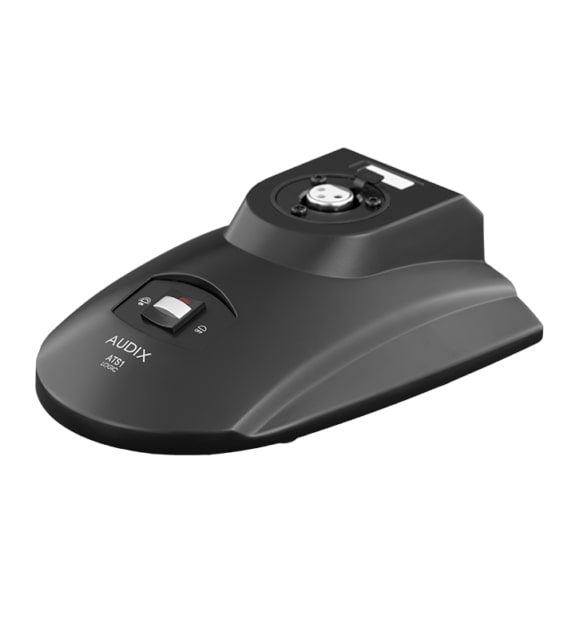

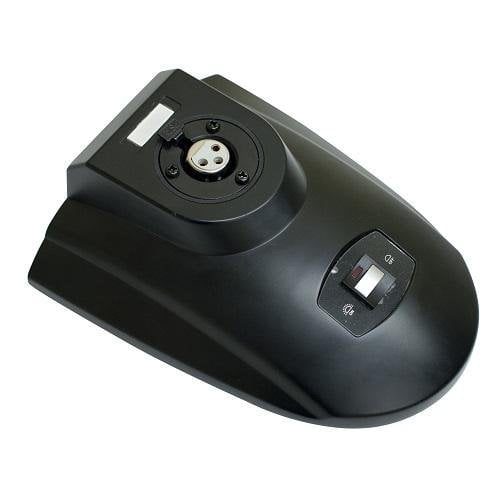

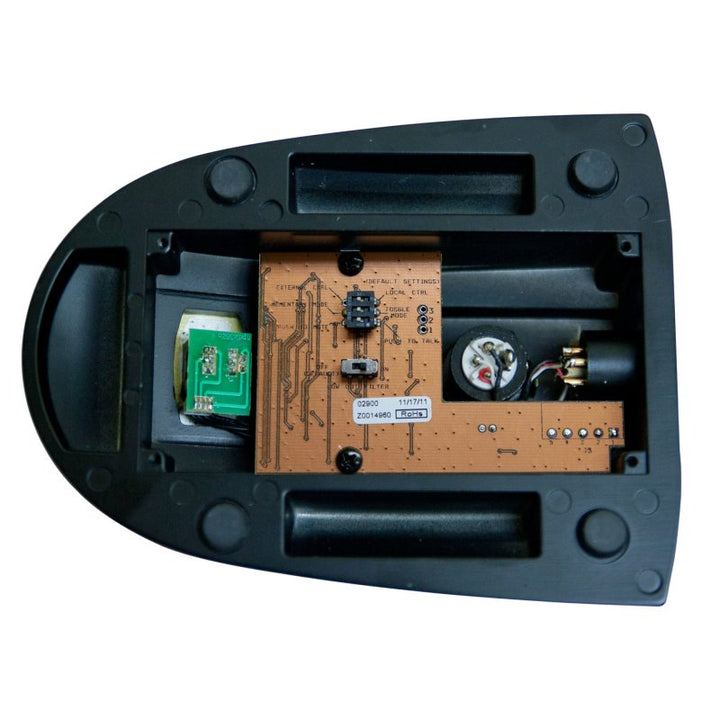

The ATS1, ATS1LX and ATS1LP are the industry’s only programmable, shock absorbent table stands with an LED indicator that does not require external power supplies, eliminating the added expense and complication associated with installation and wiring. The LED indicator and audio switching circuitry operate on the same phantom power source supplied to the microphone. The result is simplified installation and reliable operation. The base has programmable functions that are changed with a simple, intuitive dip switch which can be set to operate in Toggle On, Toggle Off, Momentary Talk and Momentary Mute modes. Also supplied within the base is a Low Cut Filter offering additional protection from bass frequencies that may cause rumble or hum. The ATS1LX and ATS1LP can be further programmed to operate seamlessly with automated teleconferencing and switch systems in external logic control mode. The ATS is manufactured with a precision die cast zinc alloy base,

durable black E-coat finish, LED indicators and a noise free mechanical switch.

• Heavy duty die cast base provides stability
• Shock mount design limits touch noise and vibration
• Four programmable talk-mute functions
• Local remote control function settings
• Seamless integration with automated mixers (ATS1LX & ATS1LP)
• Designed, assembled & tested in the USA
• 1 year warranty

Specifications

• INPUT CONNECTOR: 3 pin XLRF-type
• OUTPUT CONNECTOR: 3 pin XLRM-type
• SWITCH: Noise free mechanical
• OFF (MUTE) ATTENUATION: 45 dB minimum
• PHANTOM POWER REQUIREMENTS: 36 - 52V DC, 2mA typical
• 160 mm / 6.9 inches length
• 124 mm/ 5.9 inches width
• 45 mm / 1.8 inches height
• WEIGHT: 1.4kg / 3 lbs
