Description

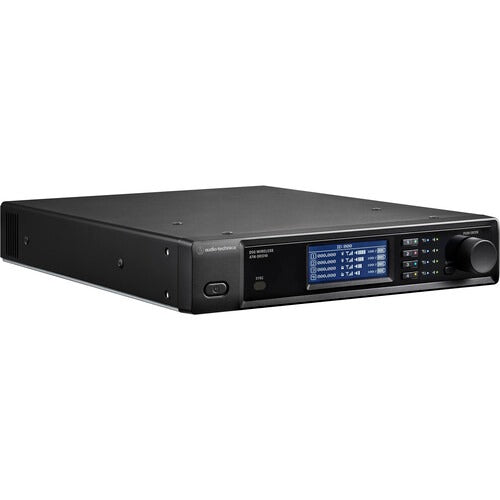

The Audio-Technica ATW-DR3220LKDF2 is a D50 two-channel digital UHF receiver in band DF2 (470 to 608 MHz). The half-rack chassis uses Audio-Technica LINK so multiple receivers can share one antenna pair without a separate distribution amp.
Switch between Antenna Combining Diversity and MRC True Diversity, and between standard and high-density frequency modes. Audio is AES-256 encrypted. Each channel has a high-pass filter, four-band EQ, and compressor. Power is AC adapter or PoE+.
Specifications
- Band: DF2: 470 to 608 MHz
- Channels: 2
- Audio: 48 kHz; AES-256
- Delay: Standard 2.1 ms typical; HD mode 3.3 ms typical
- Simultaneous use: Standard: 17 channels per 6 MHz (environment dependent)
- Operating range: 100 m (328') typical, open range with no interfering signals
- Dimensions: 210 mm (8.3") W × 288.2 mm (11") D × 42.5 mm (1.7") H
- Weight: 2.1 kg (4.6 lb) without accessories
- Power: AC adapter or PoE+ (IEEE 802.3at Class 4)
In the Box
- ATW-DR3220LK receiver
- Two whip antennas
- AC adapter (AD-SA1230XA) and AC cable
- Rack-mount adapters
- Rubber feet
- Fixing screws
- BNC cable kit
