Description

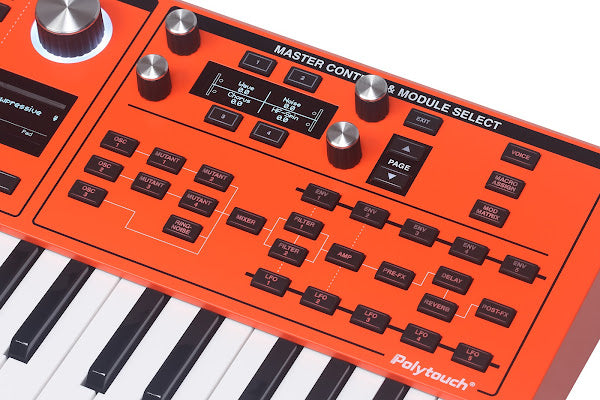

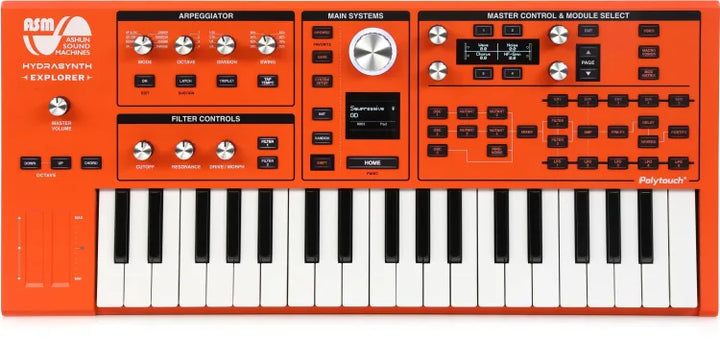

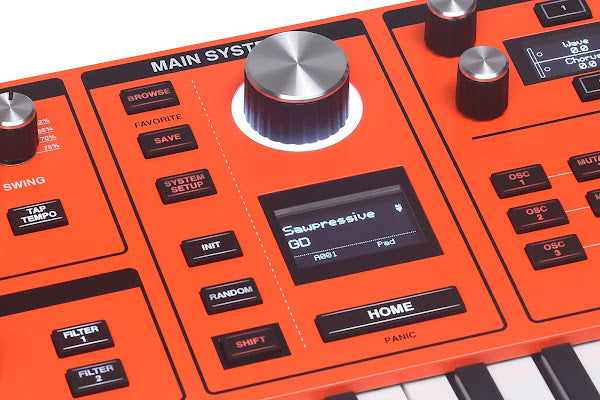

The ASM Hydrasynth Explorer Limited Edition is the same 8-voice wave-morphing synthesizer as the standard Explorer, finished in a distinctive orange colourway with matching knobs and panel accents. It carries the full Hydrasynth sound engine in a compact, battery-capable chassis with a 37-note mid-sized Polytouch keybed providing polyphonic aftertouch for per-note expression.
Sound Engine
Three WaveScan oscillators per voice draw from 219 single-cycle waveforms, routed through dual Mutator waveshapers (8 modes including FM, sync, and PWM variants) and a five-source mixer into two filters configurable in series or parallel. Filter 1 offers 16 selectable models including vowel and formant types; Filter 2 is a 12 dB/octave SEM-style state-variable design. Five DAHDSR envelopes and five LFOs per voice feed a 32-slot modulation matrix with 35 sources and 191 destinations.
Performance
- Keybed: 37-note mid-sized semi-weighted Polytouch with polyphonic aftertouch, note-on/off velocity
- Ribbon controllers: Pitch-bend strip and mod strip with LED depth indicators
- Arpeggiator: 6-octave range with ratchet, chance, gate, and swing
- Macro pages: 2 pages of 8 assignable encoders/buttons, each routable to 8 destinations
- Patches: 1,024 (8 banks x 128) with Favorites browser
Specifications
- Polyphony: 8 voices
- Oscillators: 3 per voice, 219 waveforms, plus 4 Mutator waveshapers
- Filters: 16-model Filter 1 + 12 dB/oct SEM-style Filter 2
- Envelopes / LFOs: 5 DAHDSR + 5 LFOs per voice (64-step pattern mode)
- Mod matrix: 32 slots, 35 sources, 191 destinations
- Effects: Pre-FX (pitch, lo-fi, EQ, distortion), post-FX (chorus, flanger, rotary, phaser, tremolo, compressor), delay, reverb

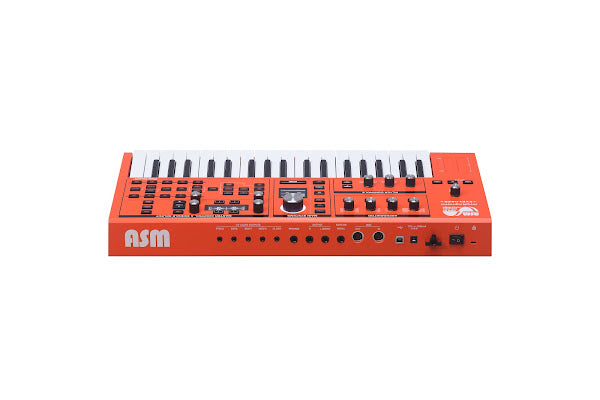

- Audio outputs: 1/4" L/Mono, 1/4" R, 1/4" headphones
- MIDI: 5-pin DIN In/Out, USB MIDI
- CV / Gate: 1/8" Pitch CV In, Gate In, Mod Out, Mod In
- Pedal: 1/4" sustain / expression input
- Power: 12V DC supply (included) or 8 x AA batteries
- Dimensions (W x D x H): 556 x 255 x 78 mm (21.9 x 10 x 3.1")
- Weight: 3.4 kg (7.5 lb)
In the Box
- ASM Hydrasynth Explorer (Limited Edition Orange)
- 12V DC power supply
- USB cable
- Quick start guide
