Description

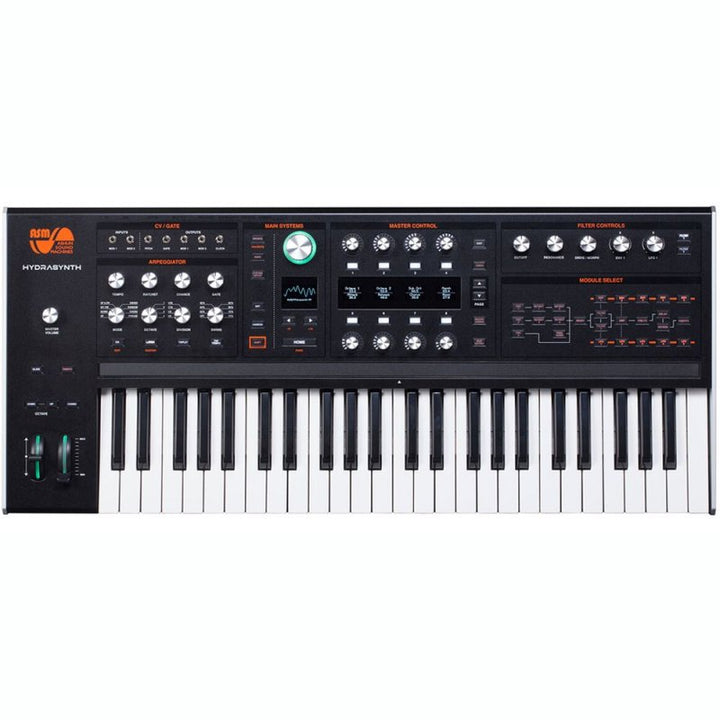

The ASM Hydrasynth Keyboard is a 49-key, 8-voice wave-morphing synthesizer with the full-sized Polytouch polyphonic aftertouch keybed, a 4-octave (67 cm) ribbon controller, and dedicated pitch and mod wheels. It shares the same advanced wavetable engine as all Hydrasynth models but adds the expressive range of a full keybed and hands-on ribbon performance.
Sound Engine
Three WaveScan oscillators per voice offer 219 single-cycle waveforms, routed through four Mutator waveshapers with eight shaping modes. A five-source mixer (3 oscillators, noise, ring mod) feeds two filters configurable in series or parallel: Filter 1 provides 16 selectable models including vowel and comb types, Filter 2 is a 12 dB/octave state-variable SEM-style design. Five DAHDSR envelopes (with looping capability) and five LFOs (including 64-step pattern mode) per voice feed a 32-slot modulation matrix mapping 35 sources to 191 destinations.
Polytouch Keybed and Expression
The 49-key semi-weighted Polytouch keybed offers polyphonic aftertouch, note-on velocity, and note-off velocity, all independently routable in the mod matrix. A 4-octave ribbon controller supports pitch-bend, Theremin, and CC modulation modes, while dedicated pitch and mod wheels provide traditional performance controls.

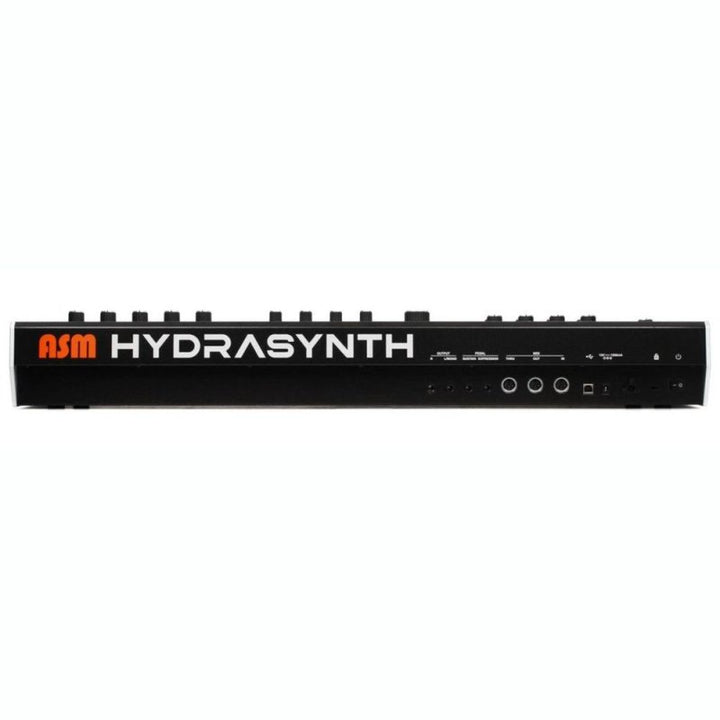

Connectivity
- Audio outputs: 1/4" L/Mono, 1/4" R, 1/4" headphones
- MIDI: 5-pin DIN In / Out / Thru, USB MIDI (class compliant)
- CV / Gate: 1/8" Pitch CV In/Out, Gate In/Out, Mod In/Out, Clock Out
- Pedal: 1/4" sustain / expression input (polarity sensing)
Specifications
- Polyphony: 8 voices
- Keys: 49 full-sized semi-weighted, polyphonic aftertouch
- Ribbon: 4-octave (67 cm), pitch-bend / Theremin / CC modes
- Oscillators: 3 per voice, 219 waveforms, plus 4 Mutator waveshapers
- Filters: 16-model Filter 1 + 12 dB/oct SEM-style Filter 2, series or parallel
- Envelopes / LFOs: 5 DAHDSR + 5 LFOs per voice
- Patches: 1,024 (8 banks x 128)
- Mod matrix: 32 slots, 35 sources, 191 destinations
- Effects: Pre-FX, post-FX, delay, reverb (4 simultaneous)
- Power: 12V DC, center positive (included)
- Construction: Steel top and bottom, aluminum side panels
- Dimensions (W x D x H): 800 x 350 x 103 mm (31.5 x 13.8 x 4.1")
- Weight: 10 kg (22 lb)
In the Box
- ASM Hydrasynth Keyboard
- 12V DC power supply
- USB cable
- Quick start guide
