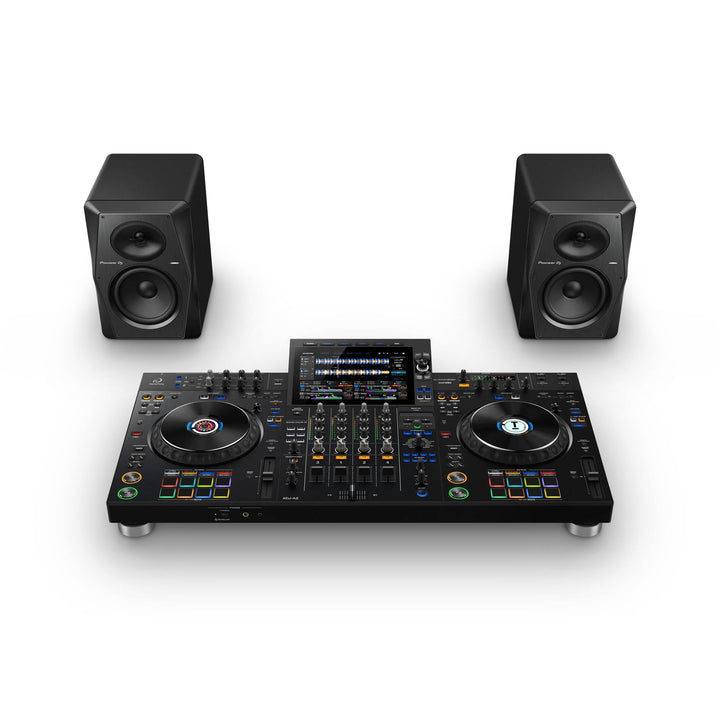

AlphaTheta XDJ-AZ 4-Channel Digital DJ System (Open Box, Brand New)

Open Box: This product has been opened for quality control or showcase, but it is in brand new condition. Full warranty applies.

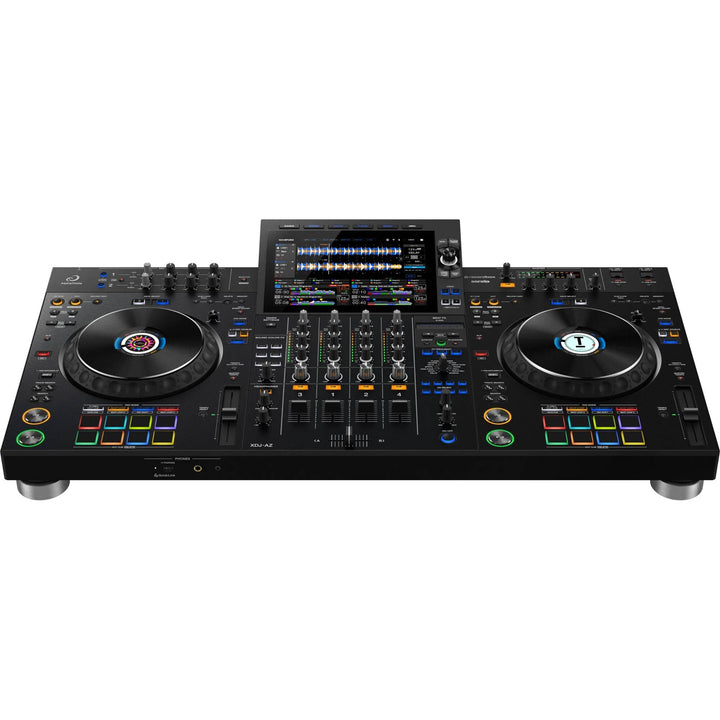

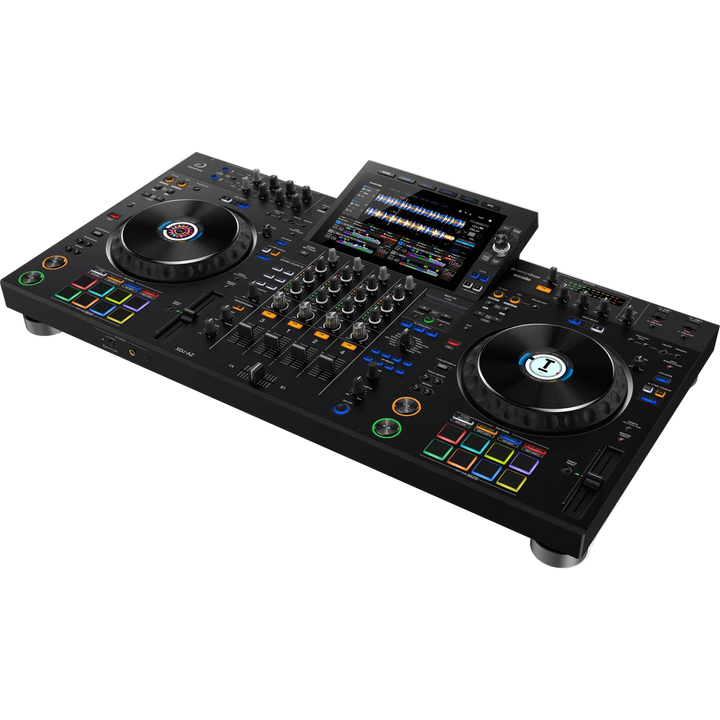

The AlphaTheta XDJ-AZ is a 4-channel all-in-one DJ system that inherits the layout and feel of the CDJ-3000 and DJM-A9 in a single unit. Full-size 206 mm jog wheels, a 10.1-inch capacitive touchscreen, built-in Wi-Fi, SonicLink wireless monitoring, and 4-deck standalone playback from USB, cloud, and streaming services.

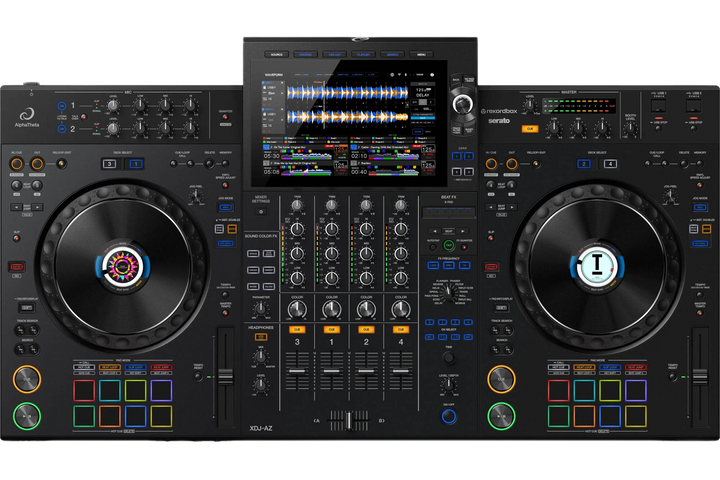

Club-Standard Layout

The jog wheels deliver the same pitch-bending and scratching feel as the CDJ-3000. The mixer section mirrors the DJM-A9 with intuitive Beat FX assignment buttons. Eight backlit rubber Performance Pads per deck support Hot Cues, Beat Loop, Slip Loop, Beat Jump, and Gate Cue (plays from the cue point only while the pad is held).

10.1-inch Touchscreen

• Displays up to 13 tracks simultaneously (up from 8 on the XDJ-XZ).
• Playlist Bank: Register up to 4 playlists for rapid access.
• Touch Preview: Preview tracks without loading them.
• Touch Cue: Preview the upcoming section of a track currently playing on deck.
• Simultaneous display of Performance Pad status and Beat FX settings.

4-Deck Standalone Playback

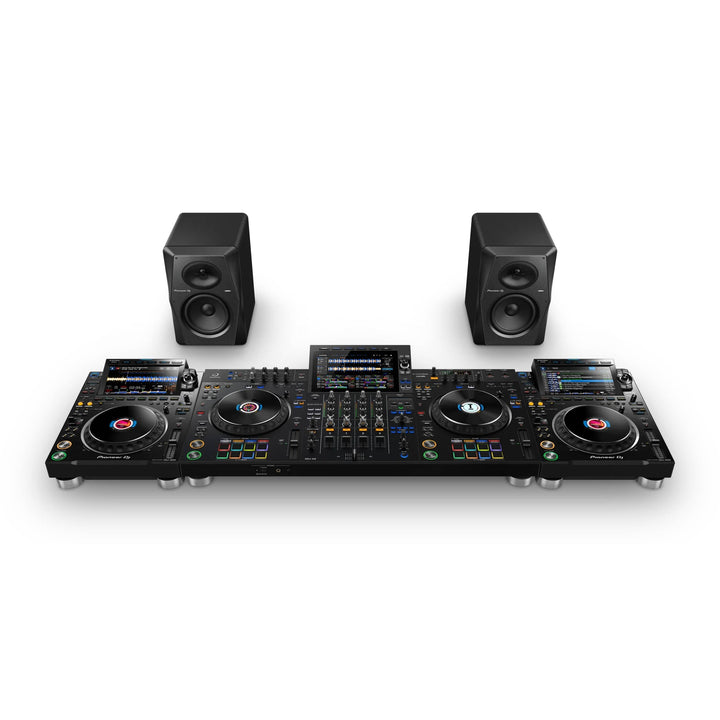

Layer sounds, create live mashups, go back-to-back with another DJ, or queue tracks for the perfect drop. Integrate CDJs via PRO DJ LINK with synced beat and on-air information across all connected players.

Music Sources & Wireless

• USB drives: 2 top-loading USB Type-A ports.
• CloudDirectPlay: Access cloud-based rekordbox playlists, Hot Cues, and performance data directly from the unit.
• StreamingDirectPlay: Beatport Streaming with waveform, BPM, and grid analysis.

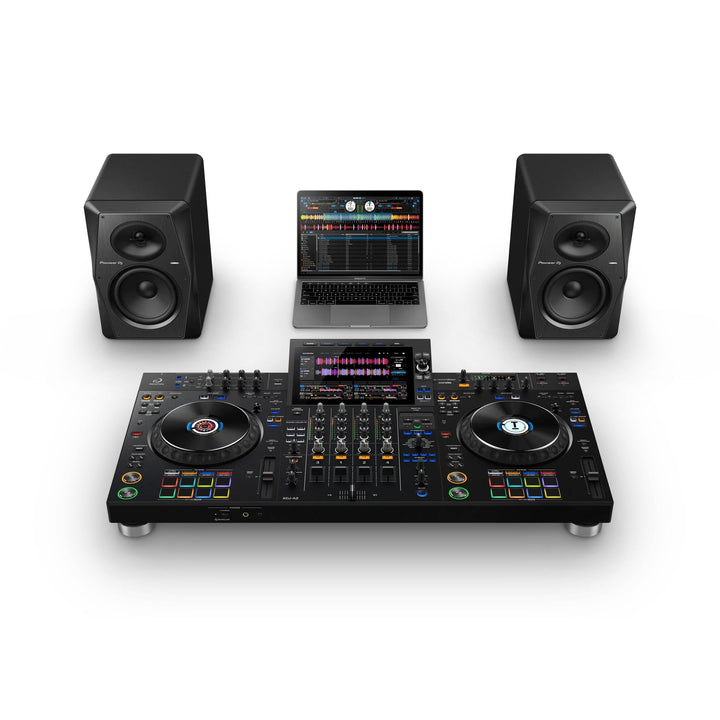

• PC/Mac: USB Type-C connection for rekordbox (Performance mode) or Serato DJ Pro. No subscription required for either.
• Wi-Fi Link Export: Access tracks from PC/Mac or mobile device wirelessly.

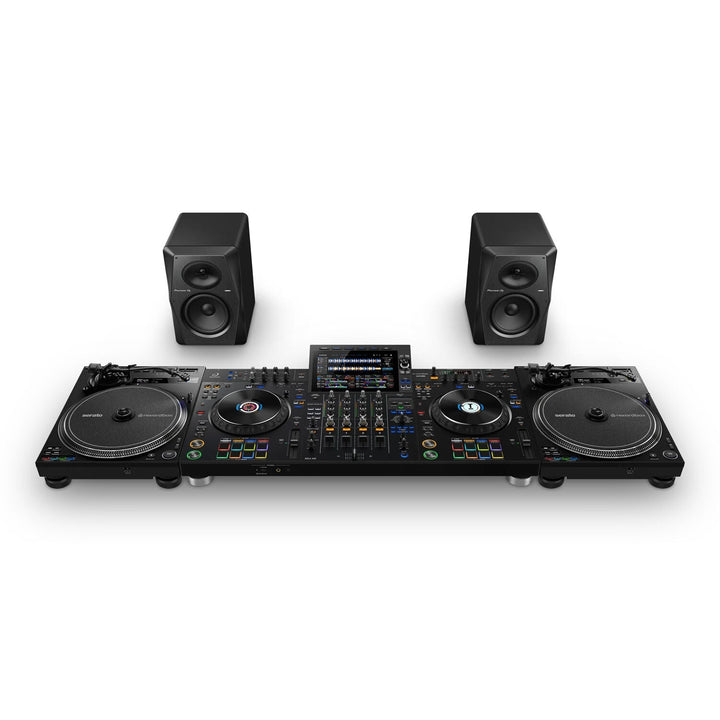

• External devices: LINE/PHONO inputs for turntables, samplers, and other audio sources.

SonicLink Wireless Monitoring

The integrated SonicLink transmitter pairs with the HDJ-F10 professional DJ headphones with a single button press. SonicLink transmits audio 20 times faster than Bluetooth SBC for delay-free wireless monitoring in the booth.

Audio Quality

A 32-bit D/A converter from ESS Technology delivers clear, dynamic sound, a significant upgrade from the XDJ-XZ. A 3-Band Master EQ lets you tune the output to the room. A dedicated mixer settings button provides instant on-screen access to check and adjust mixer status.

Effects

• Sound Color FX: Dub Echo, Noise, Sweep, Filter, Space, Crush
• Beat FX: Delay, Echo, Ping Pong, Spiral, Reverb, Trans, Filter, Triplet Filter

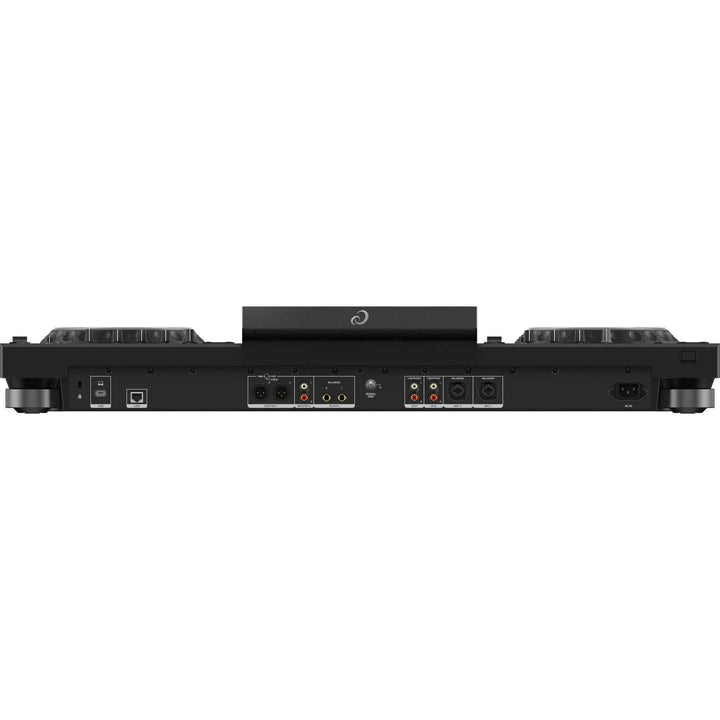

Connectivity

• Inputs: LINE/PHONO × 2 (RCA), MIC × 2 (XLR / 1/4" TRS)

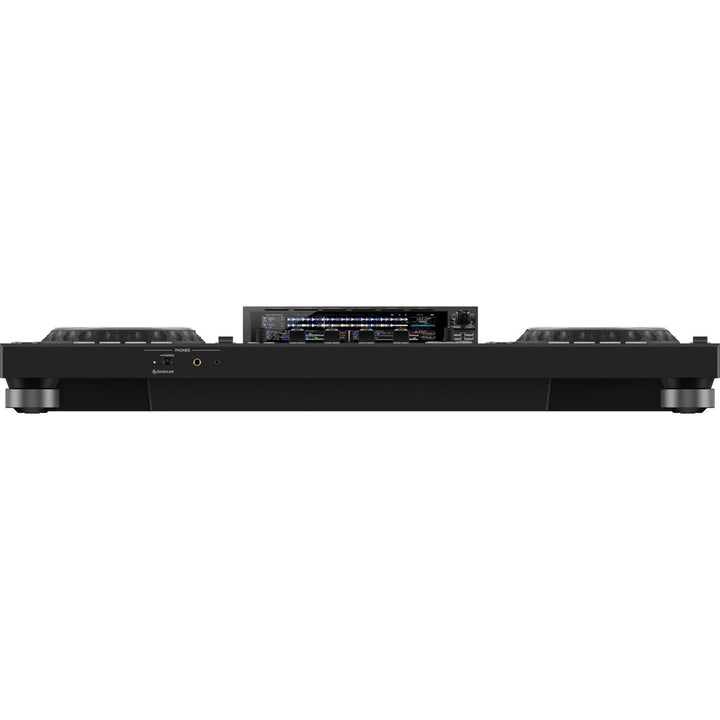

• Outputs: MASTER × 2 (XLR + RCA), BOOTH × 1 (1/4" TRS), PHONES × 2 (1/4" + 3.5 mm)
• USB: Type-A × 2 (top-loading), Type-C × 1 (laptop)
• LAN: 100BASE-TX × 1
• Wi-Fi: IEEE 802.11 a/b/g/n/ac (2.4 / 5 GHz)
• Bluetooth: Version 5.3, SBC/AAC
• SonicLink: 2.4 GHz

Specifications

• Channels: 4
• Jog wheel: 206 mm
• Display: 10.1-inch capacitive touchscreen
• D/A converter: 32-bit (ESS Technology)
• Frequency response: 20 Hz - 20 kHz
• S/N ratio: 115 dB
• THD: 0.0018%
• Software: rekordbox (Mac/Windows/iOS/Android), Serato DJ Pro
• Dimensions: 895 × 504.1 × 133.4 mm (35.2 × 19.9 × 5.3 in)
• Weight: 13.5 kg (29.8 lb)

In the Box

• Power cord
• Quick Start Guide
