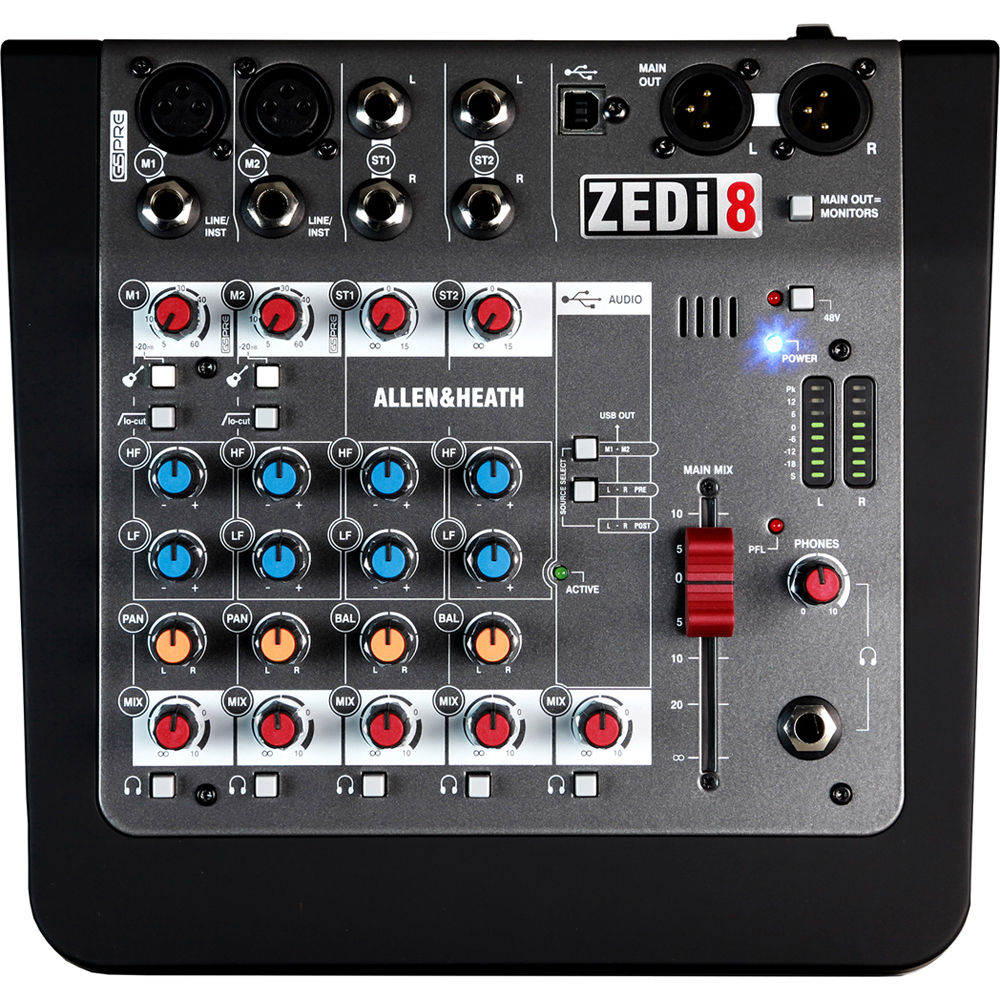

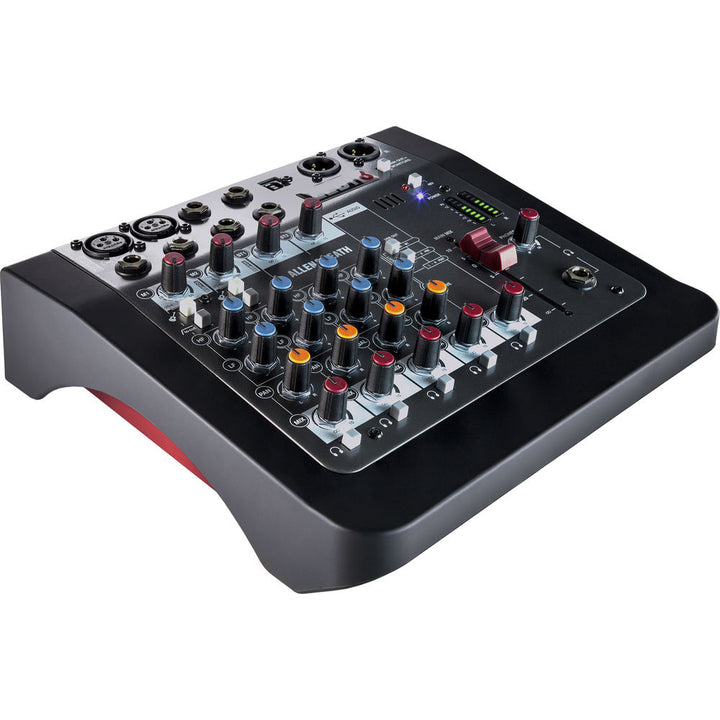

Allen & Heath ZEDi-8 6-Channel Mixer and USB Audio Interface

The Allen & Heath ZEDi-8 combines a compact analog mixer with a high-quality 2-in/2-out USB audio interface operating at up to 24-bit/96kHz. Built around 2 mono mic/line channels and 2 stereo line channels with GSPre preamps, it delivers class-compliant USB connectivity on Mac and iOS with no drivers required. Bundled with Cubase LE and Cubasis LE, the ZEDi-8 is a complete recording solution in a portable form factor.

Inputs and Outputs

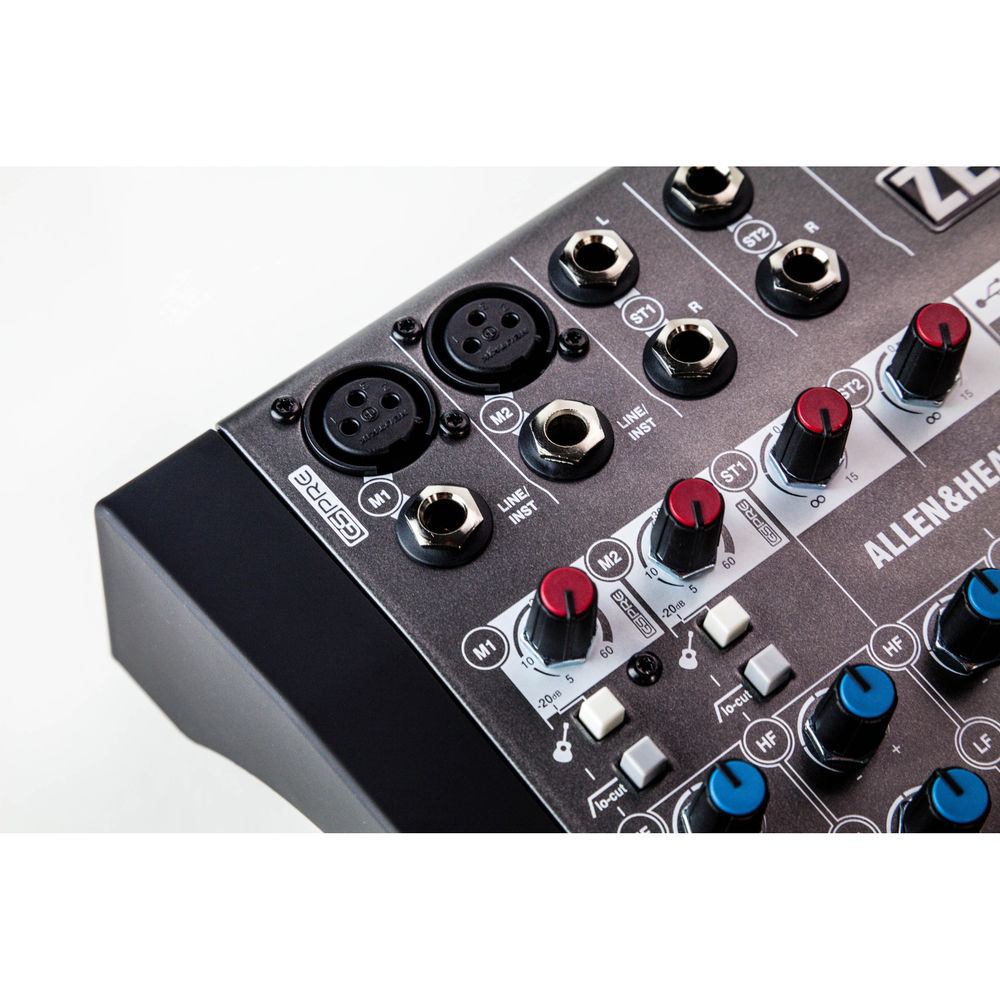

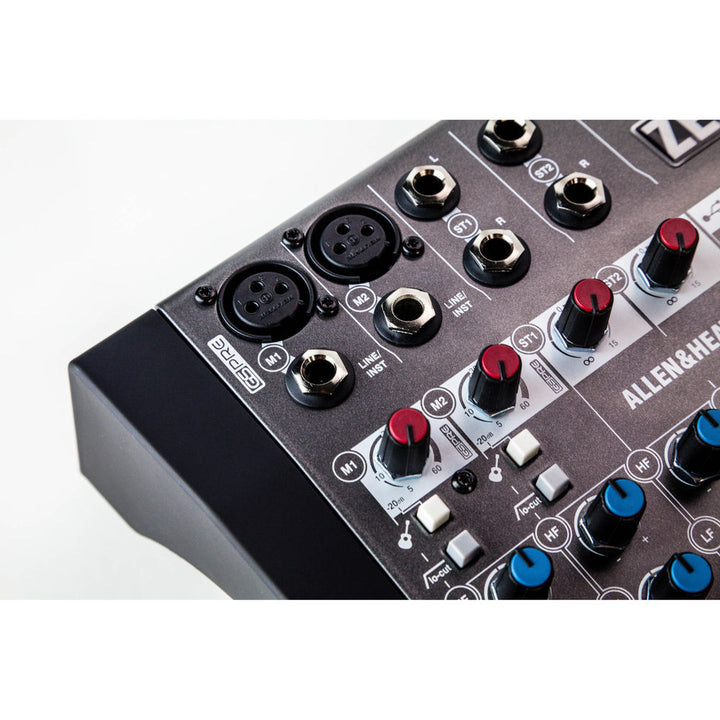

• 2 mono mic/line channels with XLR and 1/4" TRS inputs
• 2 stereo line channels (4 x 1/4" TRS inputs)
• Hi-Z instrument inputs on channels 1-2 for direct guitar/bass connection

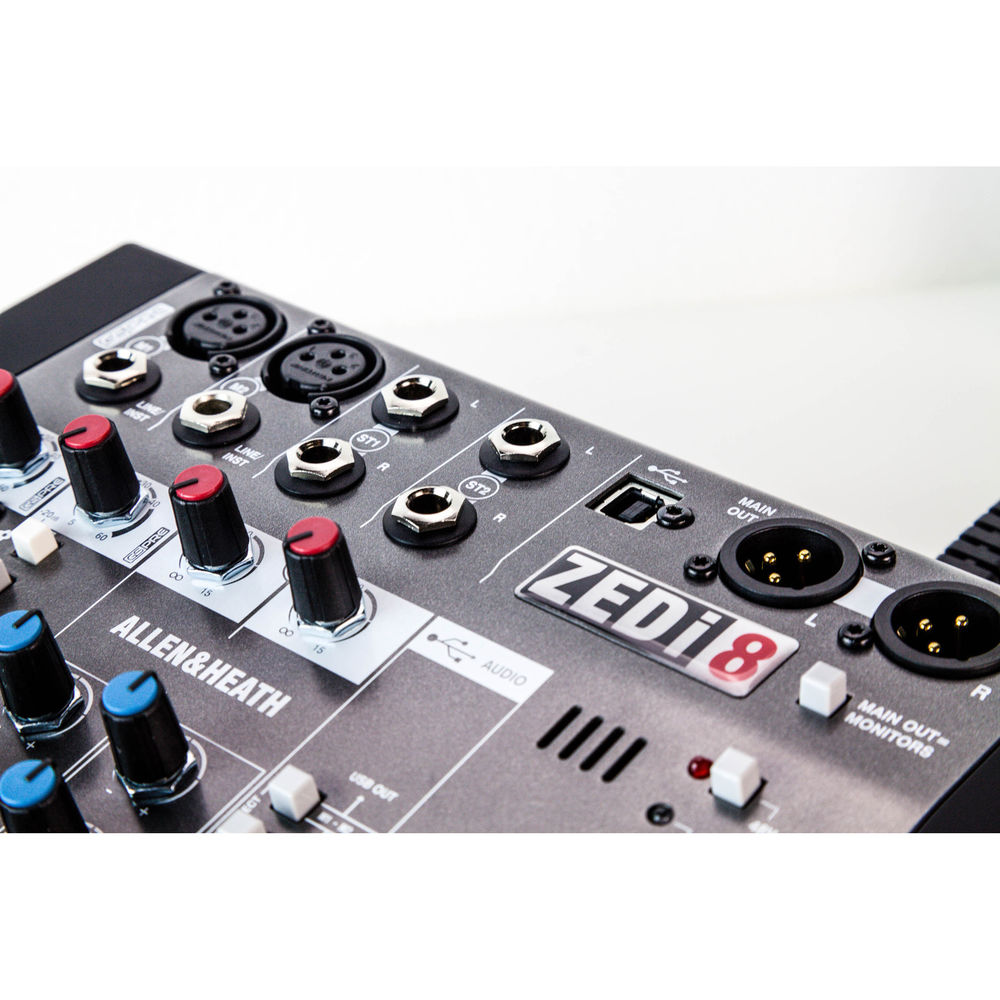

• Main stereo output on XLR L/R

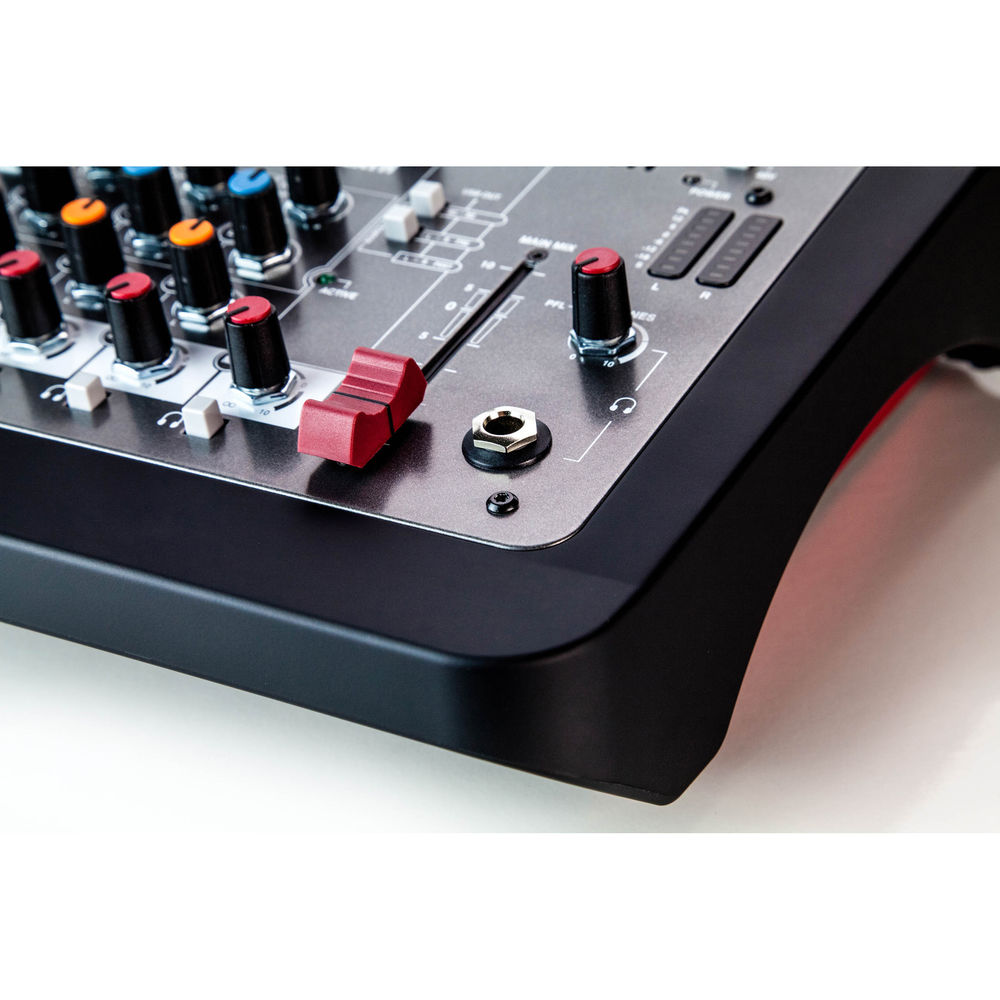

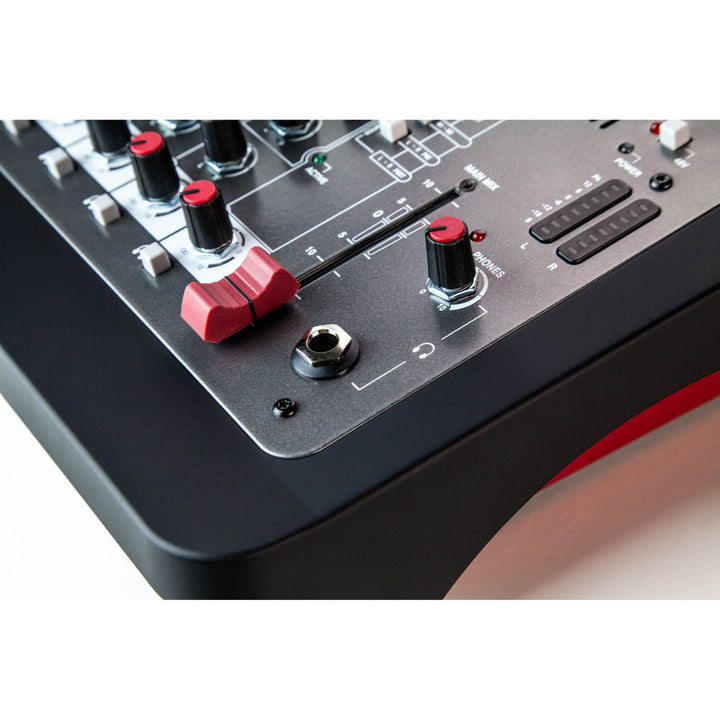

• 1/4" headphone output
• +48V global phantom power

EQ and Processing

• 2-band EQ on all channels
• Low-cut filter

Recording

• 2-in / 2-out USB 2.0 audio interface
• 24-bit resolution, 44.1–96 kHz sample rate
• Class-compliant on Mac and iOS (no driver needed)
• Cubase LE license included (PC/Mac)
• Cubasis LE app included (iOS)

Specifications

• Metering: LED signal meters
• Controls: Rotary level (no faders)

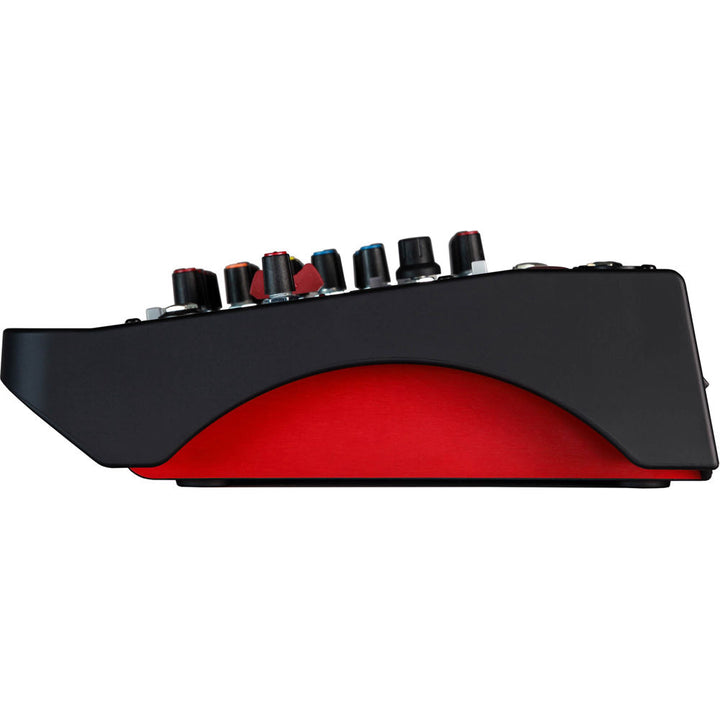

• Dimensions: 249 x 88.9 x 236.4 mm (9.8" x 3.5" x 9.3") W x H x D
• Weight: 1.36 kg / 3.0 lbs

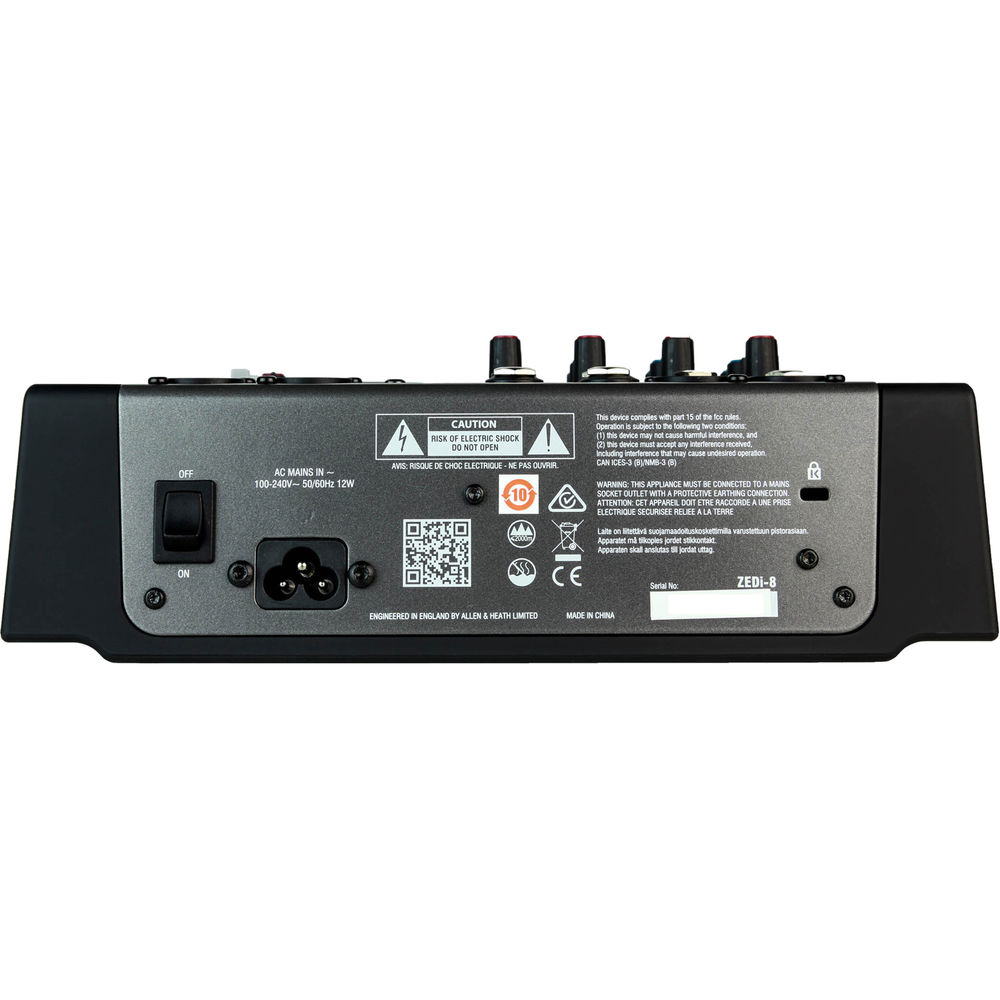

• Power: Internal PSU with IEC C5 connector

In the Box

• ZEDi-8 Mixer
• IEC C5 Mains Power Cable
• USB A-B Cable (2m)
• User Guide
• Cubase LE license
• Cubasis LE app
