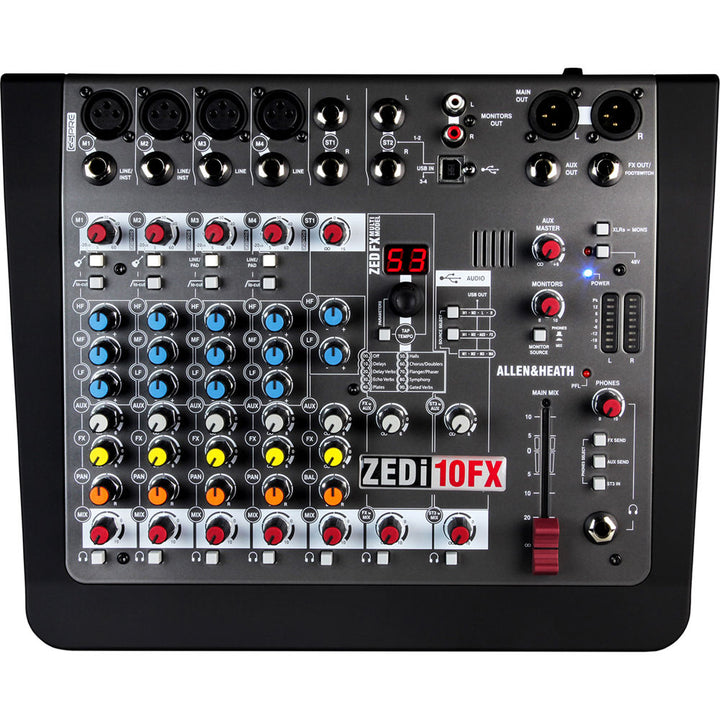

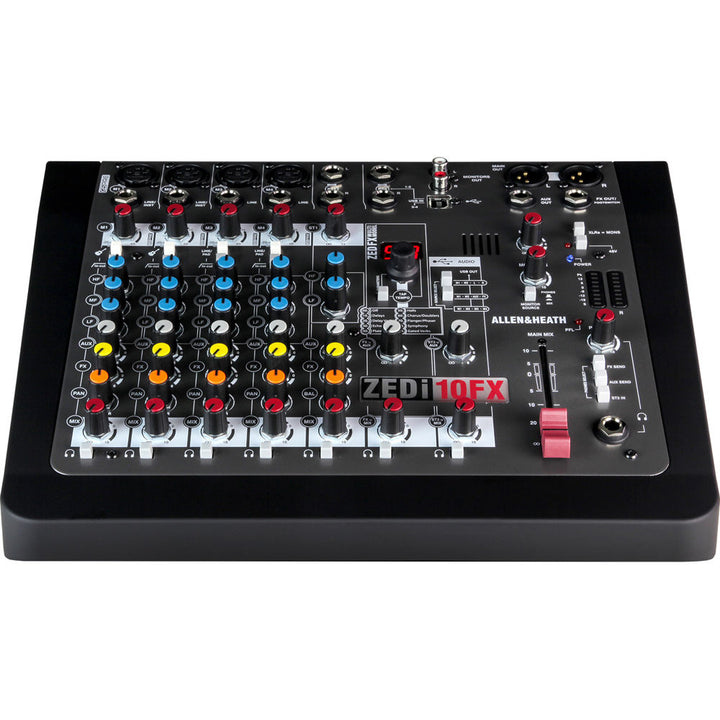

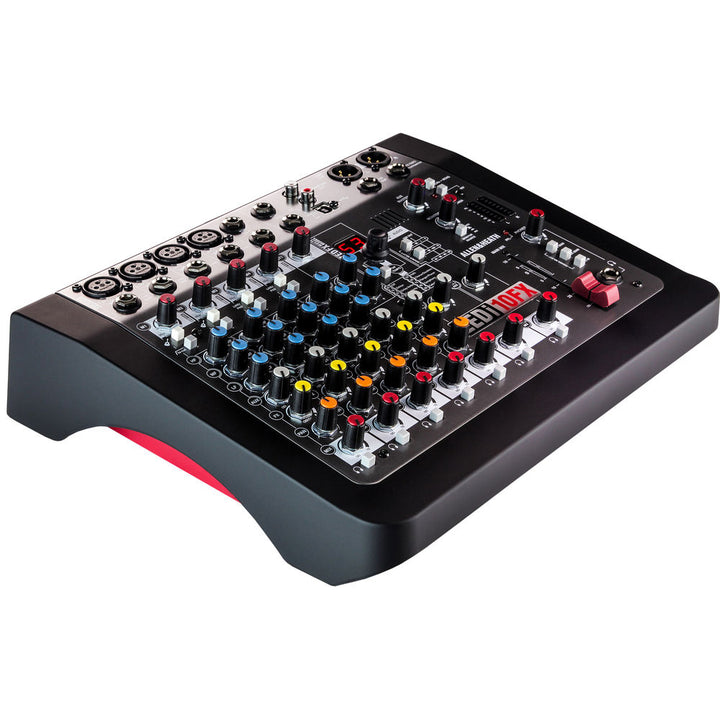

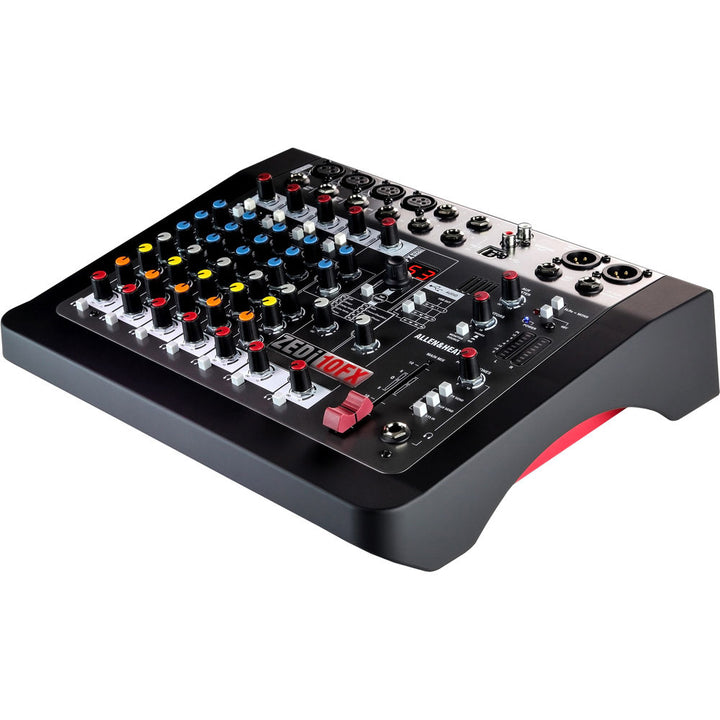

Allen & Heath ZEDi-10FX 10-Channel Mixer and USB Audio Interface

The Allen & Heath ZEDi-10FX combines the multi-channel 4-in/4-out 24-bit/96kHz USB interface of the ZEDi-10 with built-in stereo effects. Featuring 4 mono mic/line channels with GSPre preamps, 2 stereo line channels, a pre-fade aux send, a post-fade FX send, and class-compliant USB on Mac and iOS, the ZEDi-10FX handles live performance with effects and multi-track recording in one compact unit. Cubase LE and Cubasis LE are included.

Inputs and Outputs

• 4 mono mic/line channels with XLR and 1/4" TRS inputs
• 2 stereo line channels (with RCA option on one pair)
• Hi-Z instrument inputs on channels 1-2
• 1 x pre-fade AUX send + 1 x post-fade FX send per channel
• Main stereo output on XLR L/R
• RCA monitor outputs
• 1/4" headphone output
• +48V global phantom power (4 channels)

EQ and Processing

• 3-band EQ on mono channels 1-4
• 2-band EQ on stereo channels 5-6
• Low-cut filter

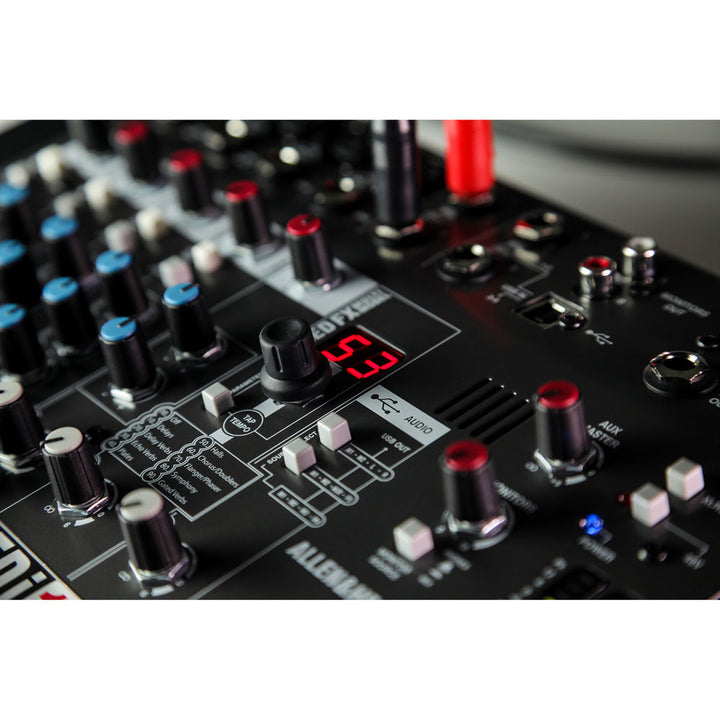

• Built-in stereo effects: multi-model reverbs, delays, and special FX
• 8 LED signal metering

Recording

• 4-in / 4-out USB 2.0 audio interface
• 24-bit resolution, 44.1–96 kHz sample rate
• Class-compliant on Mac and iOS (no driver needed)
• Cubase LE license included (PC/Mac)
• Cubasis LE app included (iOS)

Specifications

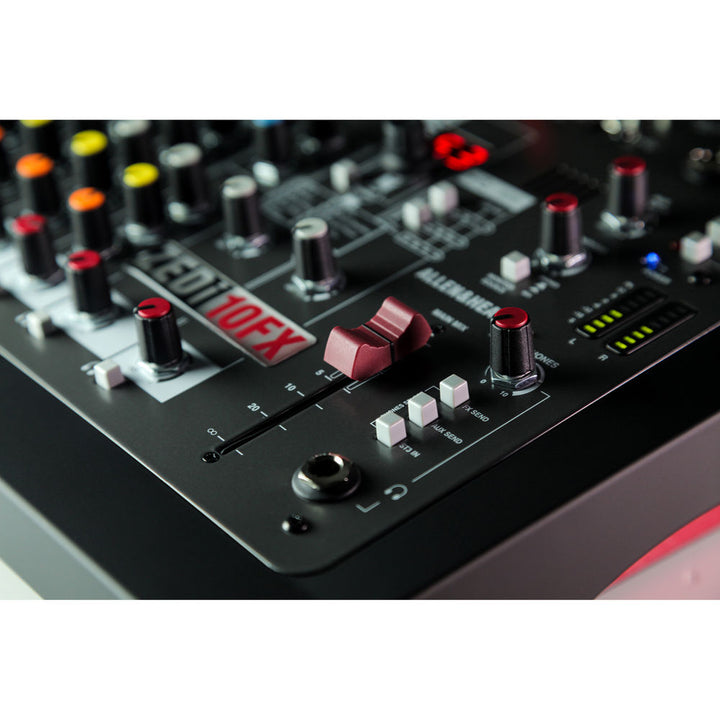

• Faders: 60 mm main mix fader
• Metering: LED signal meters
• Dimensions: 333 x 96.5 x 274.5 mm (13.1" x 3.8" x 10.8") W x H x D
• Weight: 2.31 kg / 5.1 lbs

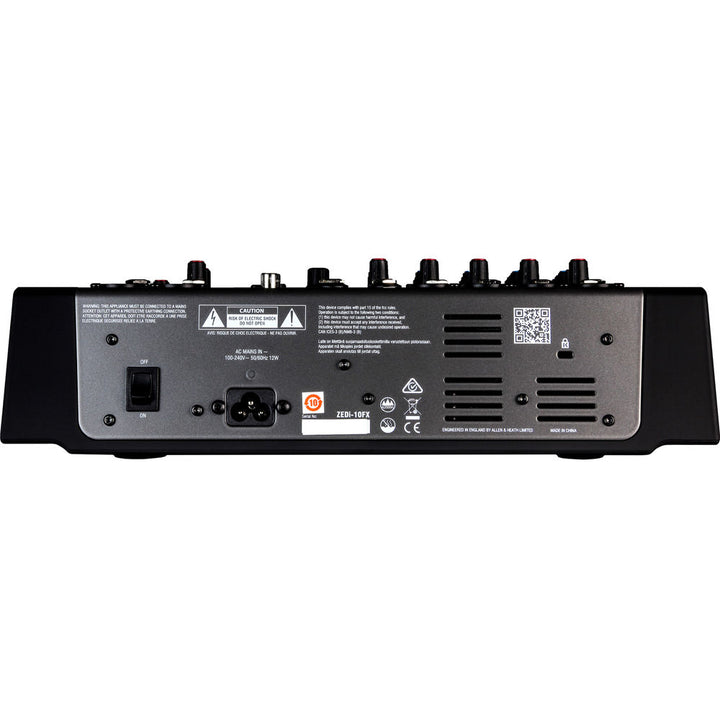

• Power: Internal PSU with IEC C5 connector

In the Box

• ZEDi-10FX Mixer
• IEC C5 Mains Power Cable
• USB A-B Cable (2m)
• User Guide
• Cubase LE license
• Cubasis LE app
