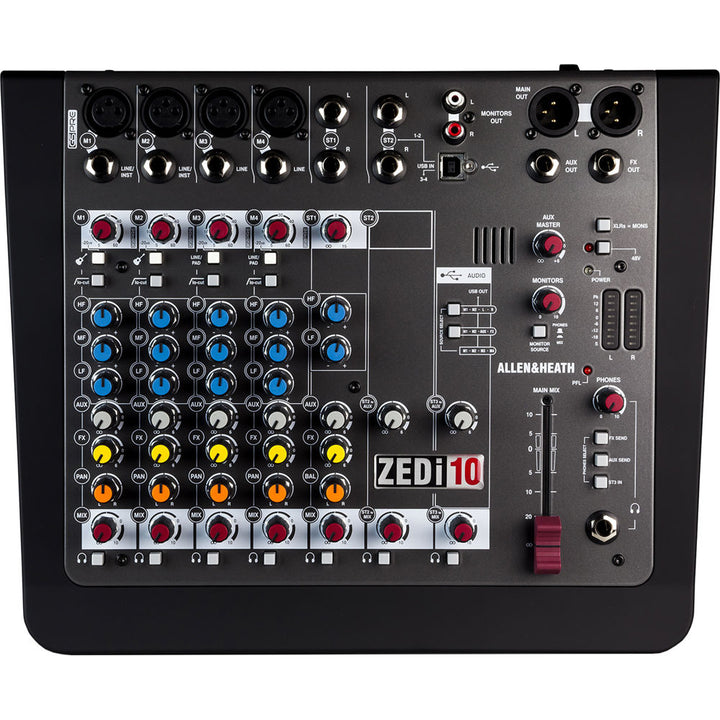

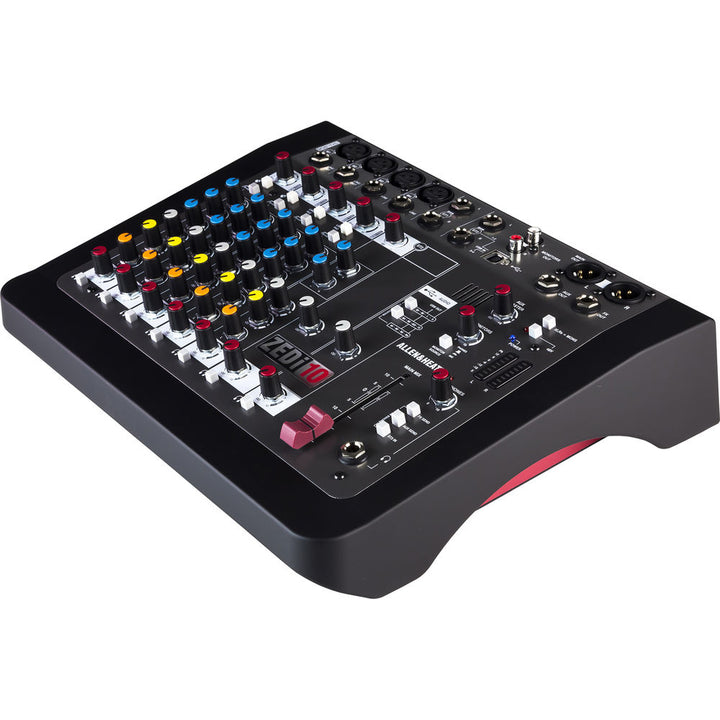

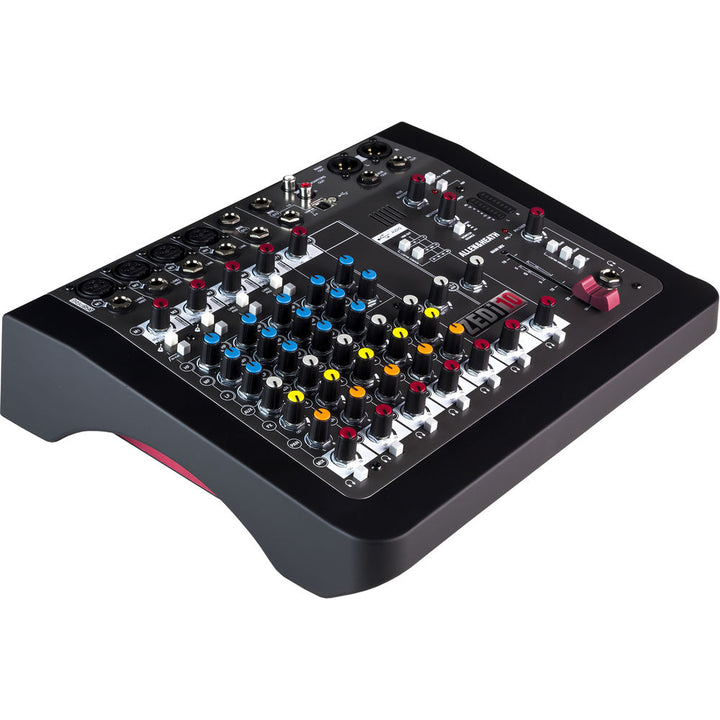

Allen & Heath ZEDi-10 10-Channel Mixer and 4x4 USB Audio Interface

The Allen & Heath ZEDi-10 pairs a versatile 10-channel analog mixer with a multi-channel 4-in/4-out USB audio interface running at up to 24-bit/96kHz. With 4 mono mic/line channels featuring GSPre preamps, 2 stereo line channels, a pre-fade aux send, and class-compliant USB on Mac and iOS, it handles both live mixing and multi-track recording. Bundled with Cubase LE for a complete studio-ready package.

Inputs and Outputs

• 4 mono mic/line channels with XLR and 1/4" TRS inputs
• 2 stereo line channels (with RCA option on one pair)
• Hi-Z instrument inputs on channels 1-2
• 1 x pre-fade AUX send per channel

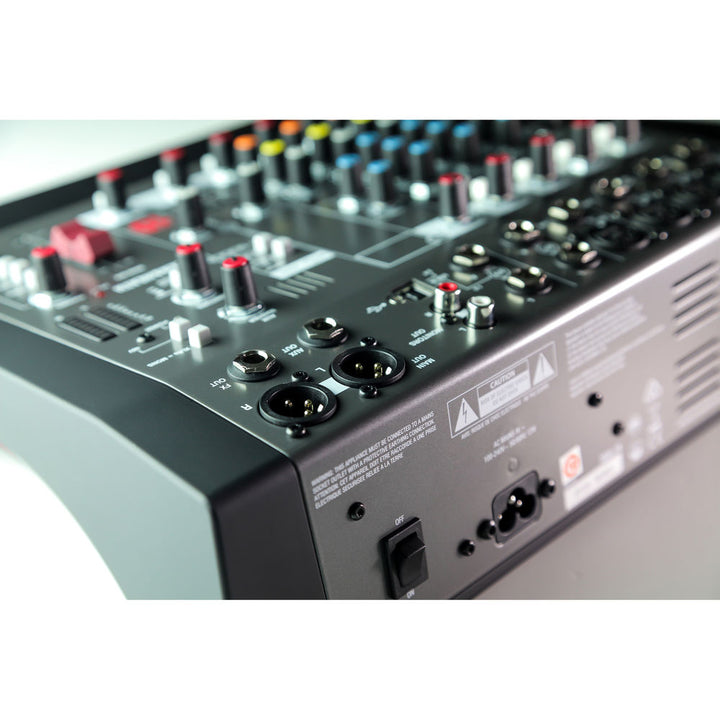

• Main stereo output on XLR L/R
• RCA monitor outputs
• 1/4" headphone output
• +48V global phantom power (4 channels)

EQ and Processing

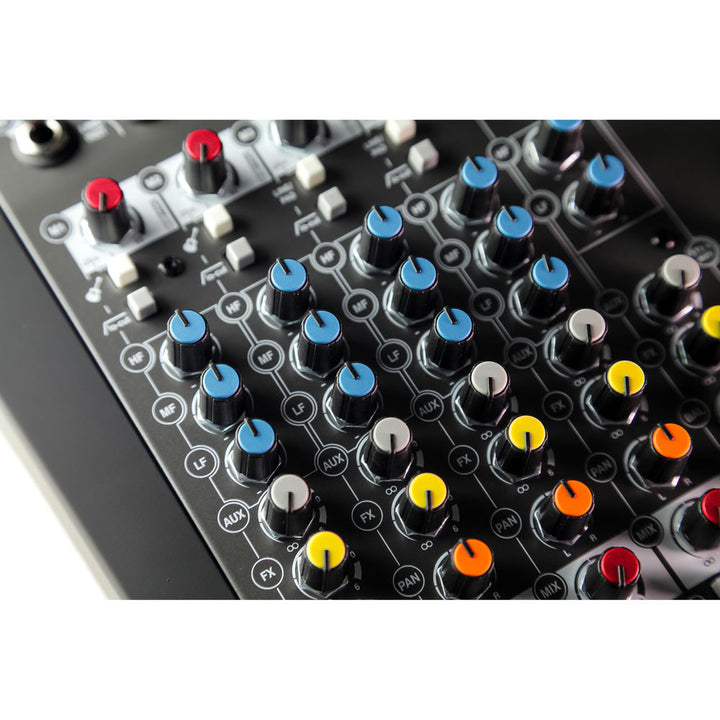

• 3-band EQ on mono channels 1-4
• 2-band EQ on stereo channels 5-6
• Low-cut filter

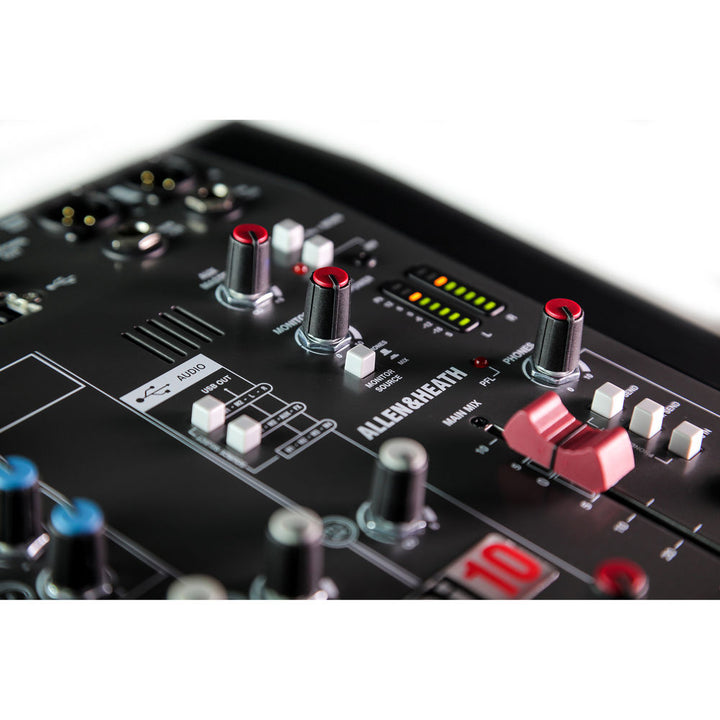

• 8 LED signal metering

Recording

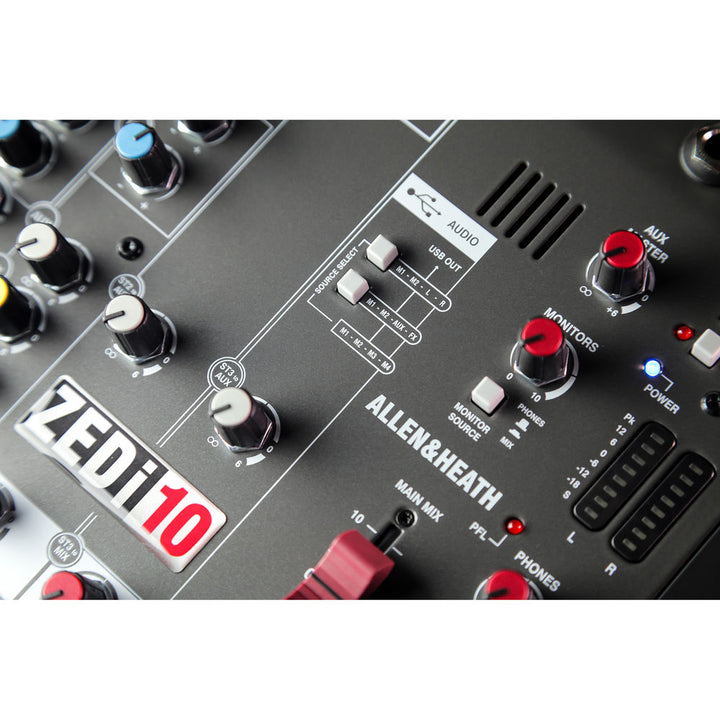

• 4-in / 4-out USB 2.0 audio interface
• 24-bit resolution, 44.1–96 kHz sample rate
• Class-compliant on Mac and iOS (no driver needed)
• Cubase LE license included (PC/Mac)
• Cubasis LE app included (iOS)

Specifications

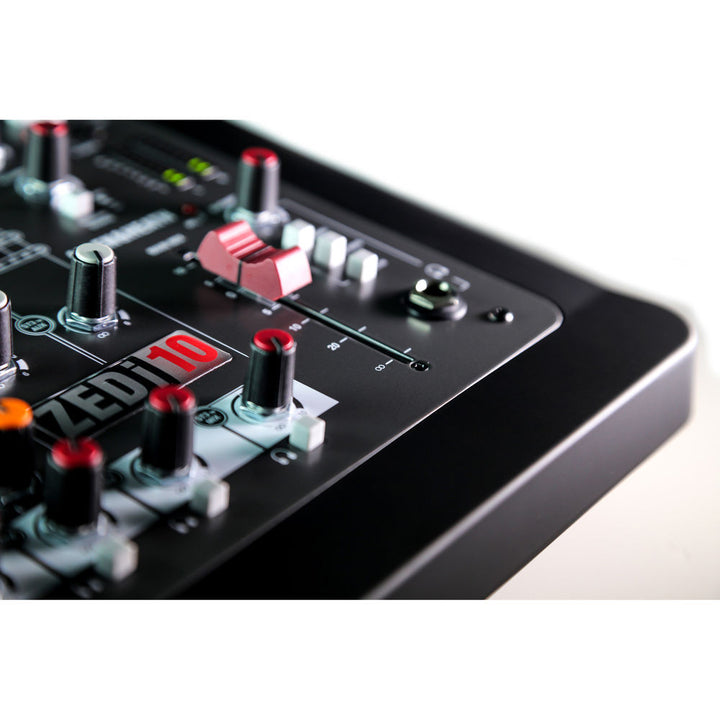

• Faders: 60 mm main mix fader
• Metering: LED signal meters

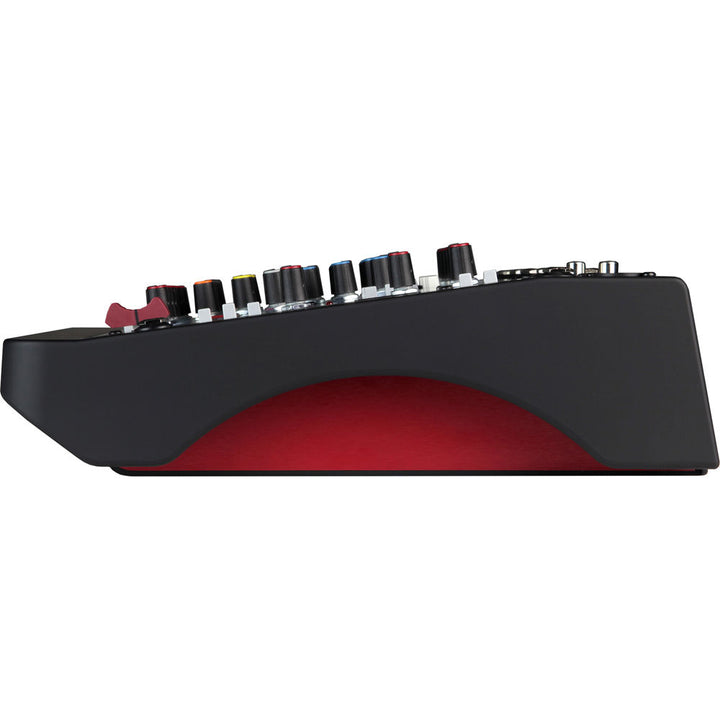

• Dimensions: 333 x 96.5 x 274.5 mm (13.1" x 3.8" x 10.8") W x H x D
• Weight: 2.2 kg / 4.85 lbs

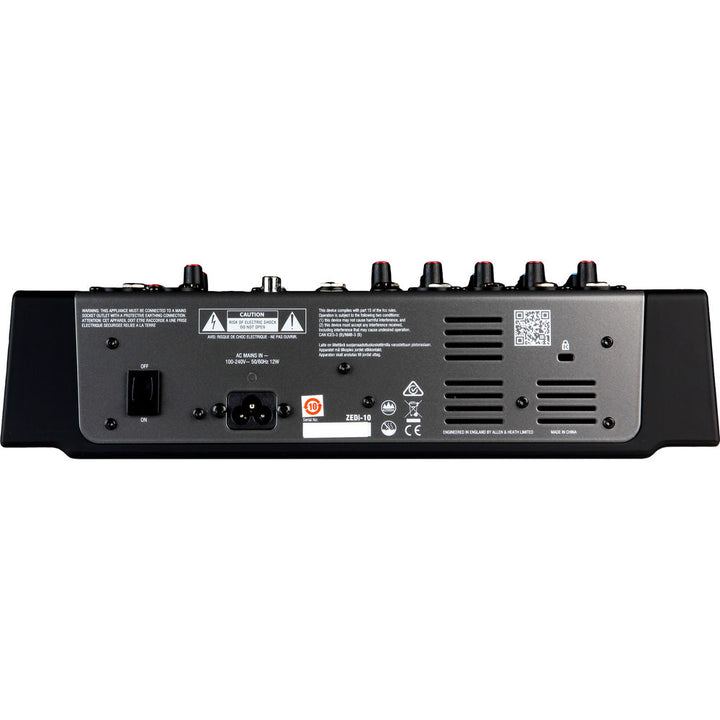

• Power: Internal PSU with IEC C5 connector

In the Box

• ZEDi-10 Mixer
• IEC C5 Mains Power Cable
• USB A-B Cable (2m)
• User Guide
• Cubase LE license
• Cubasis LE app
