Description

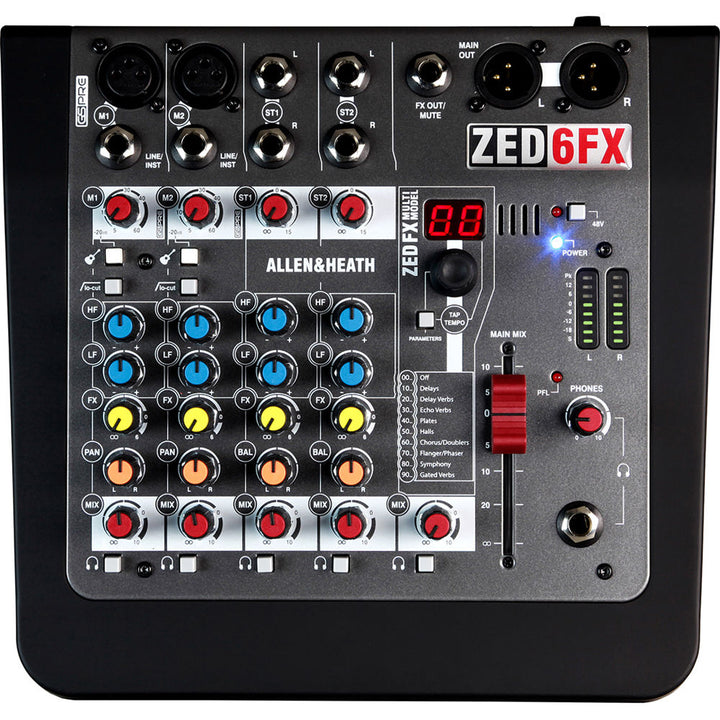

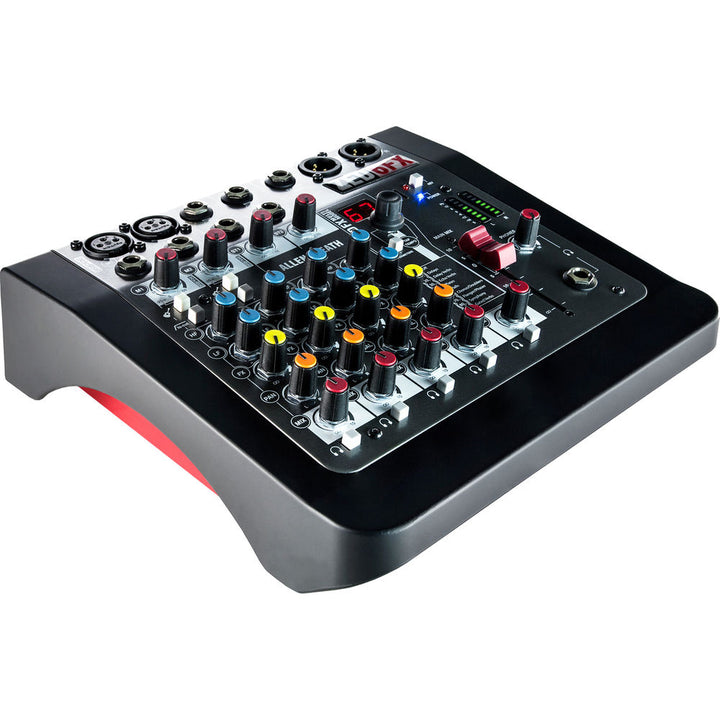

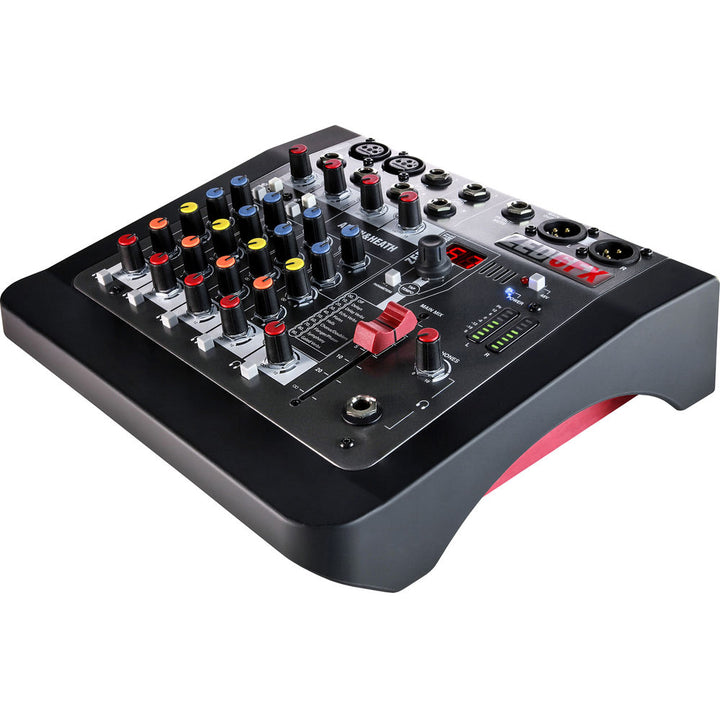

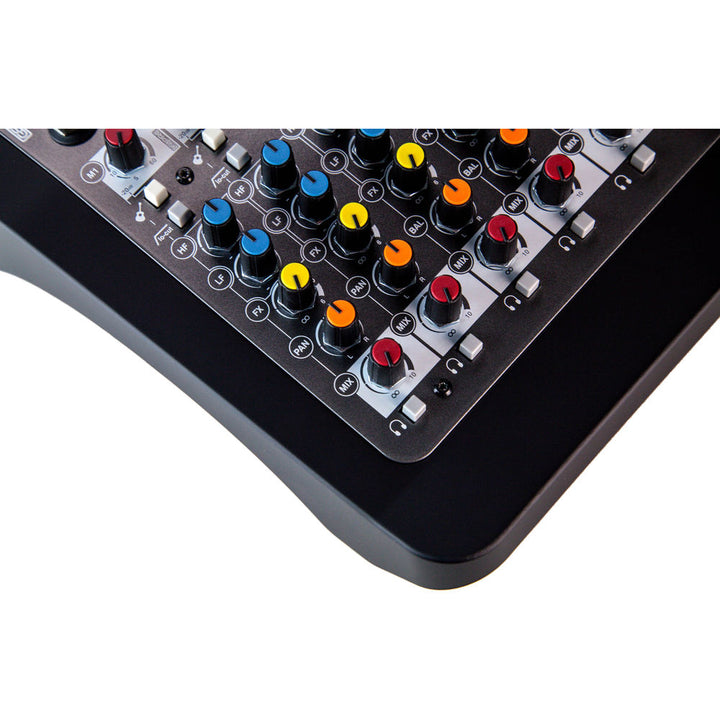

The Allen & Heath ZED-6FX adds built-in multi-model effects to the compact ZED-6 platform. With 2 mono mic/line channels and 2 stereo line channels, GSPre preamps, Hi-Z guitar DI inputs, and a dedicated FX send per channel feeding stereo reverbs, delays, and special effects, the ZED-6FX is ideal for performers and content creators who need onboard processing without external gear.
Inputs and Outputs

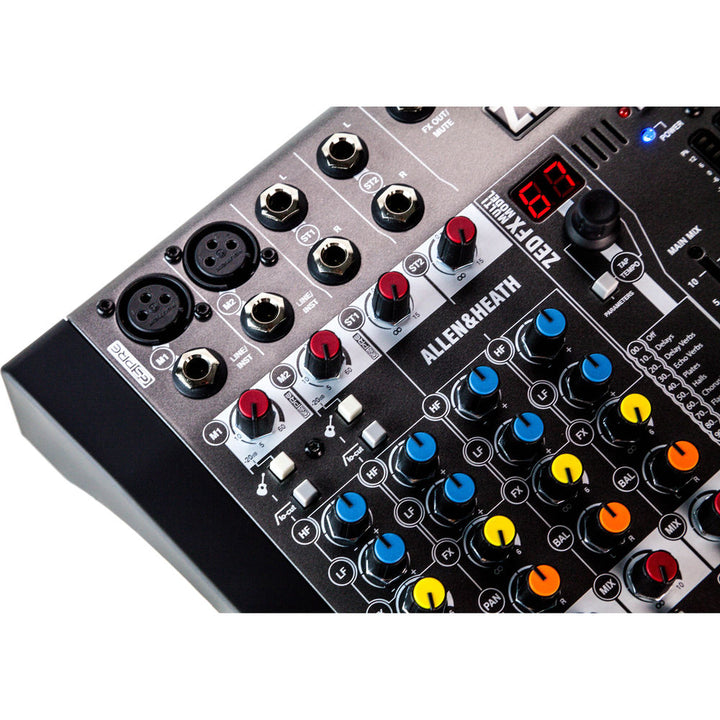

- 2 mono mic/line channels with XLR and 1/4" TRS inputs
- 2 stereo line channels (4 x 1/4" TRS inputs)
- Hi-Z instrument inputs on channels 1-2 for direct guitar/bass connection
- 1 x post-fade FX send per channel
- 1 x 1/4" FX Out/Mute output

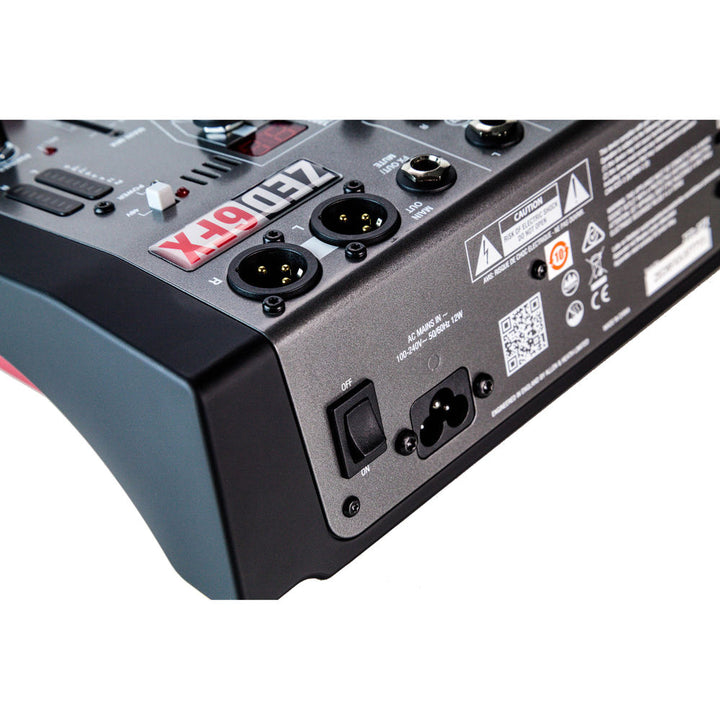

- Main stereo output on XLR L/R

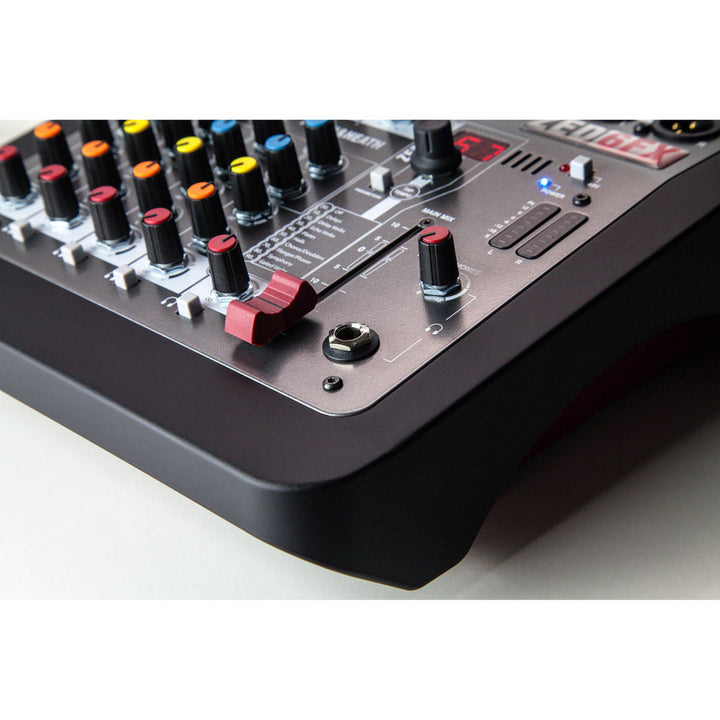

- 1/4" headphone output
- +48V global phantom power
EQ and Processing

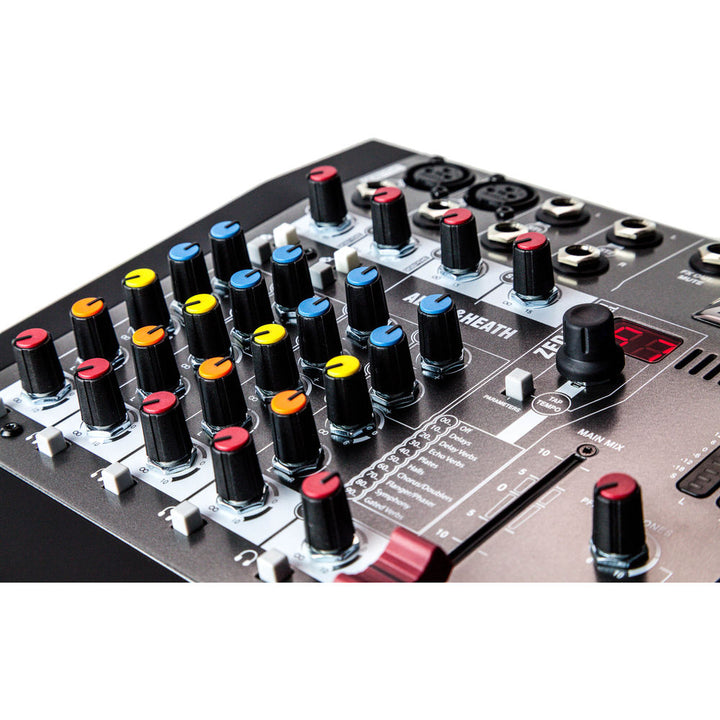

- 2-band EQ on all channels
- Built-in stereo effects: multi-model reverbs, delays, and special FX
Specifications
- Metering: L/R peak meters
- Controls: Rotary level (no faders)

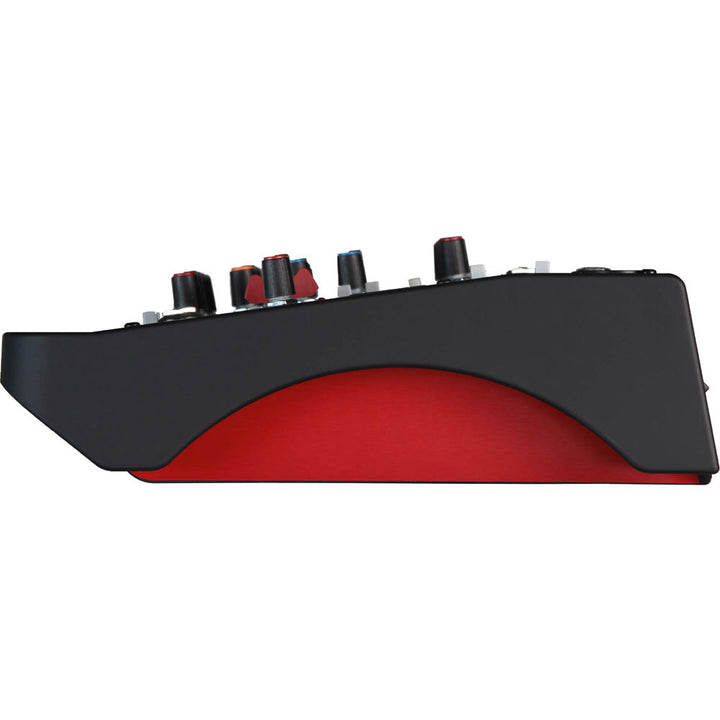

- Dimensions: 249 x 88.9 x 236.4 mm (9.8" x 3.5" x 9.3") W x H x D
- Weight: 1.36 kg / 3.0 lbs

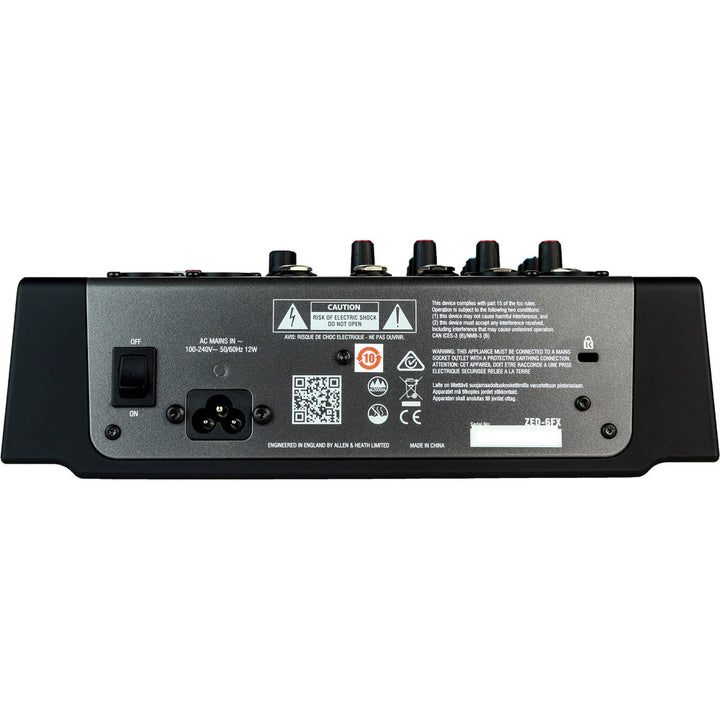

- Power: Internal PSU with IEC C5 connector
In the Box
- ZED-6FX Mixer
- IEC C5 Mains Power Cable
- User Guide
