Description

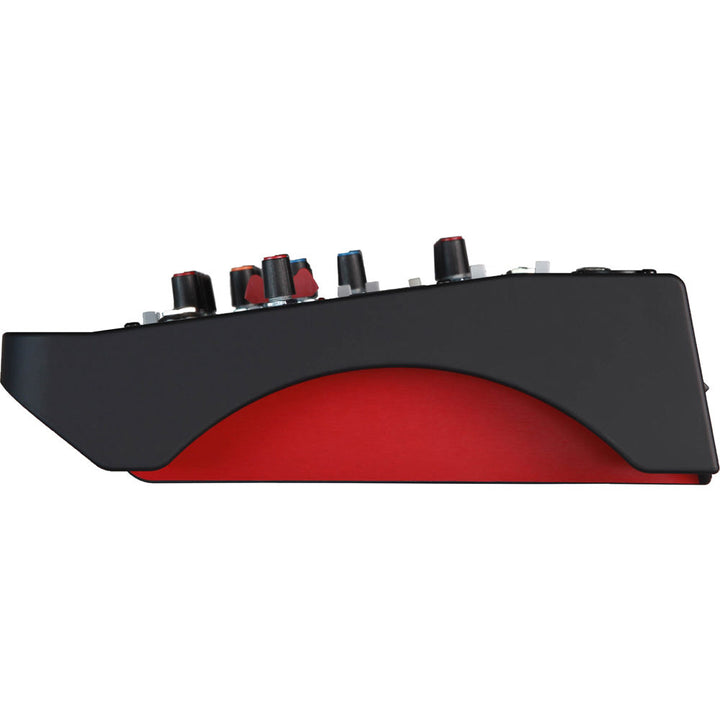

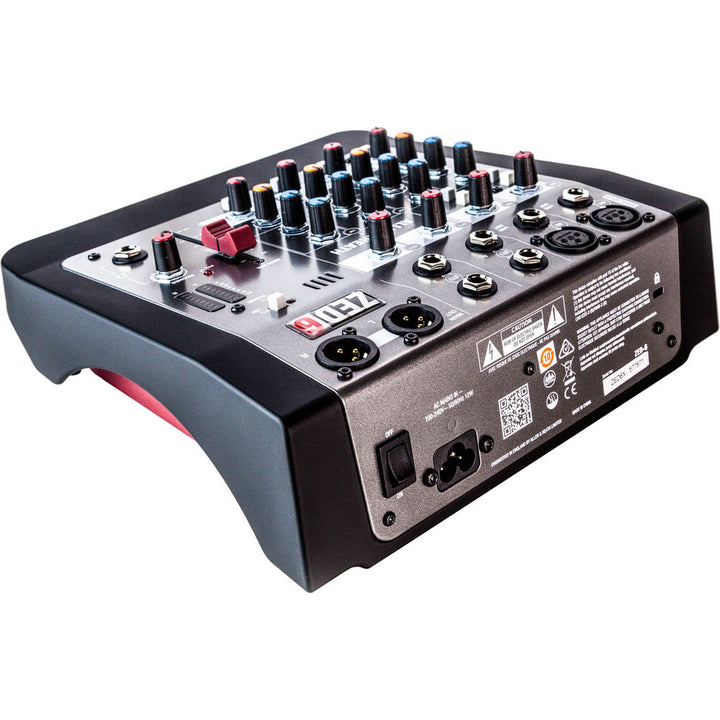

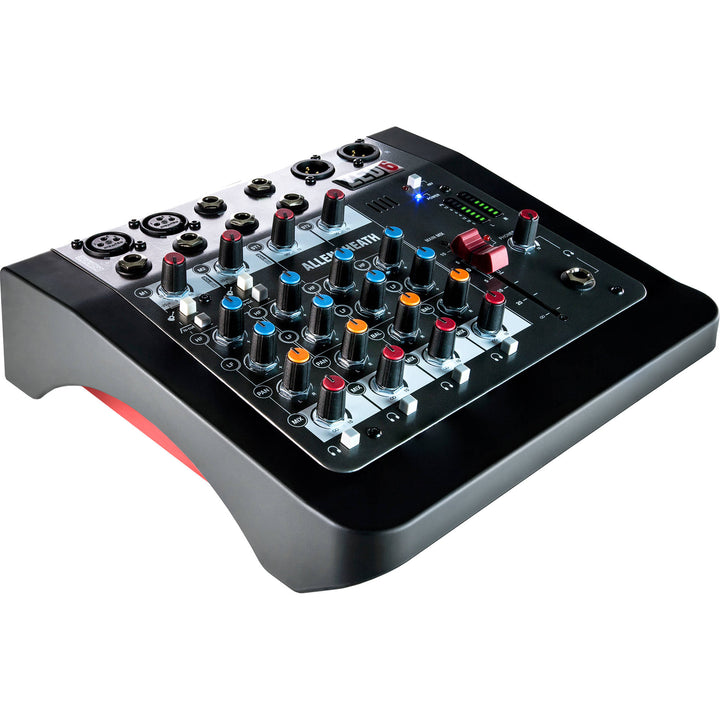

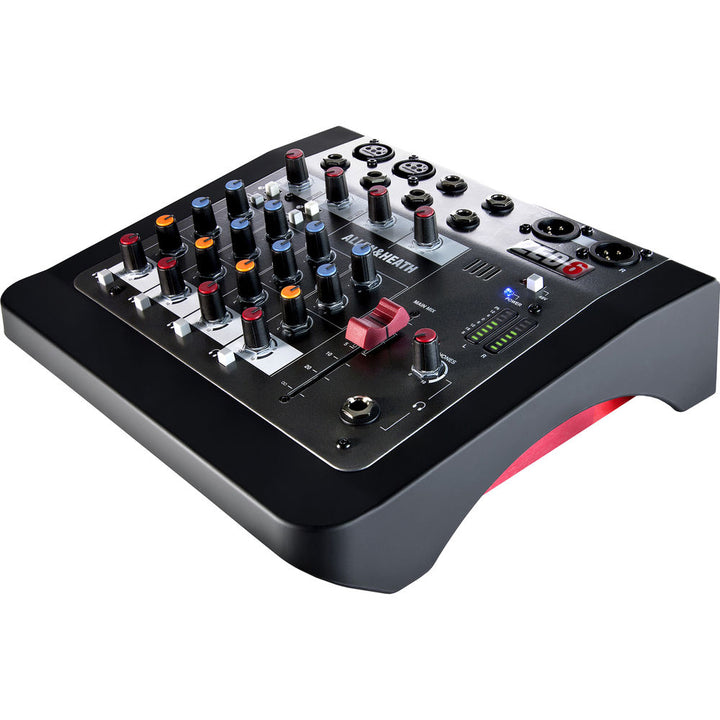

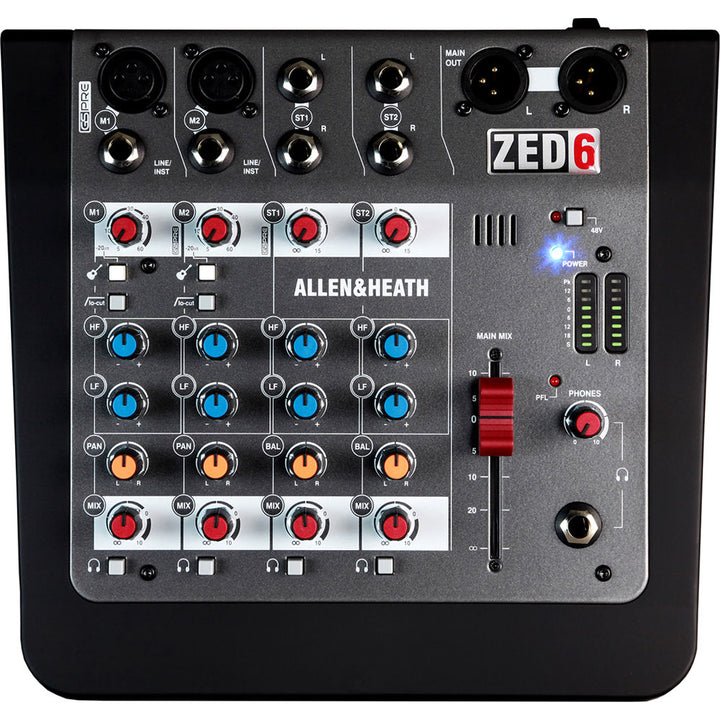

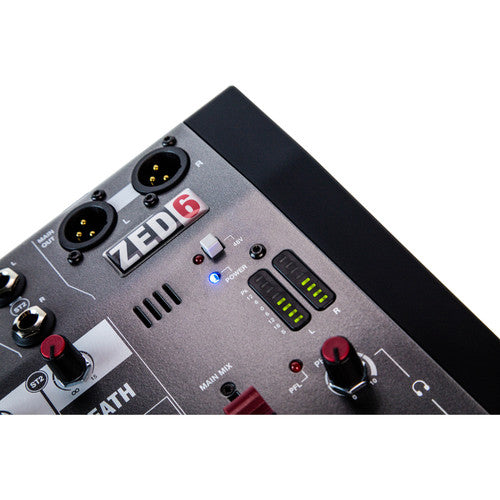

The Allen & Heath ZED-6 is a compact analog mixer with 2 mono mic/line channels and 2 stereo line channels in the smallest ZED form factor. Featuring Allen & Heath's GSPre mic preamp design with +48V phantom power, Hi-Z guitar DI inputs on both mono channels, and an internal power supply, the ZED-6 delivers professional audio quality in a highly portable package.

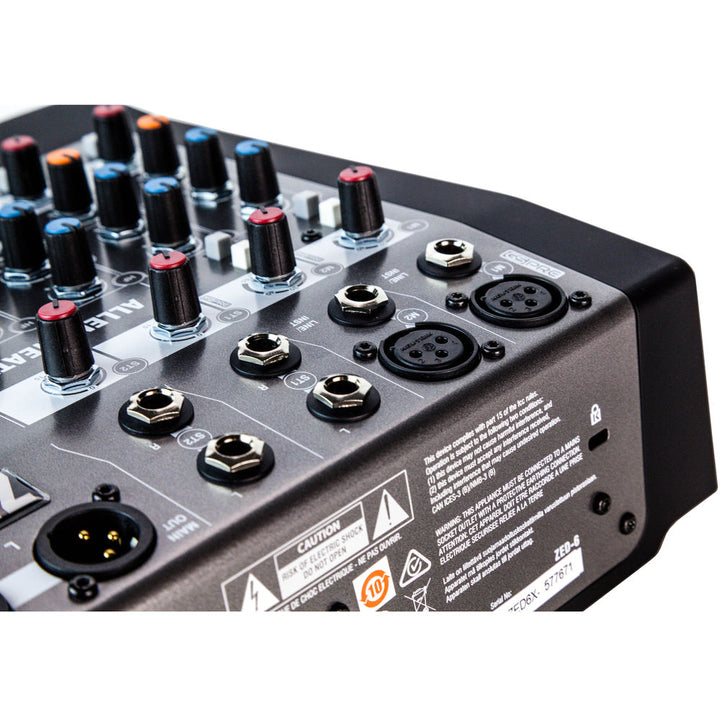

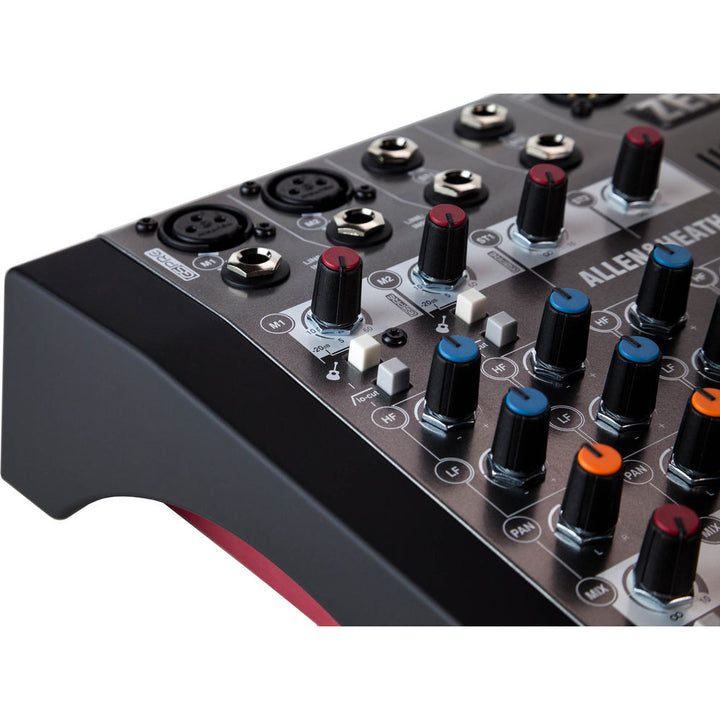

Inputs and Outputs
- 2 mono mic/line channels with XLR and 1/4" TRS inputs
- 2 stereo line channels (4 x 1/4" TRS inputs)
- Hi-Z instrument inputs on channels 1-2 for direct guitar/bass connection
- Main stereo output on XLR L/R
- 1/4" headphone output
- +48V global phantom power

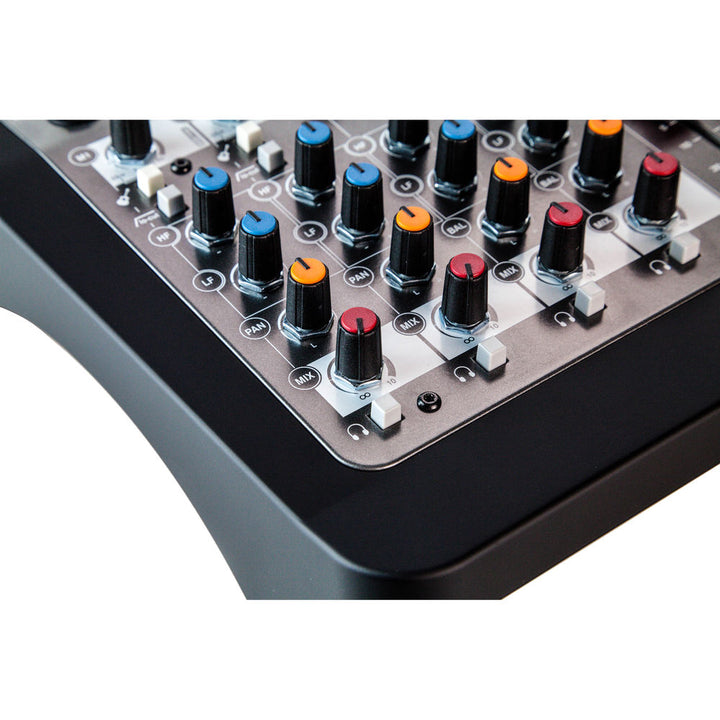

EQ and Processing

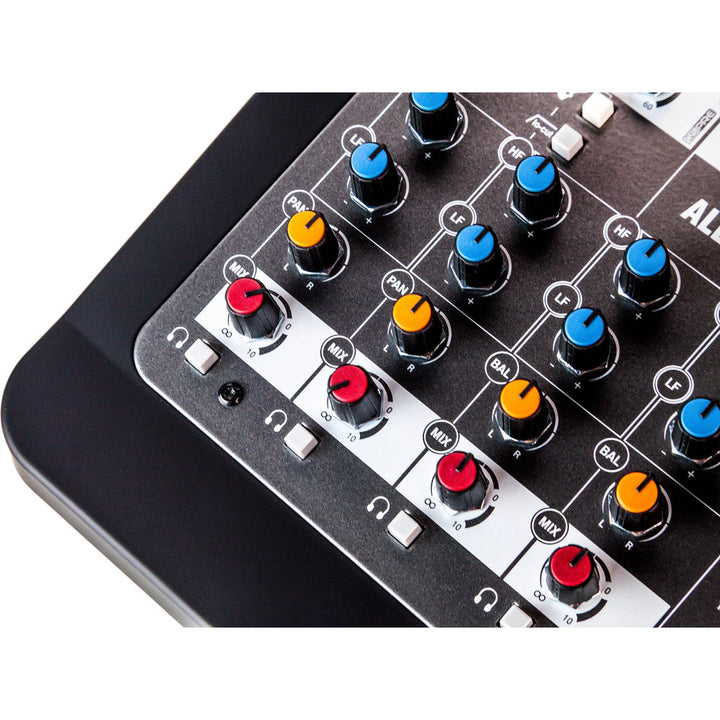

- 2-band EQ on all channels
Specifications
- Metering: L/R peak meters
- Controls: Rotary level (no faders)
- Dimensions: 249 x 88.9 x 236.4 mm (9.8" x 3.5" x 9.3") W x H x D
- Weight: 1.27 kg / 2.8 lbs

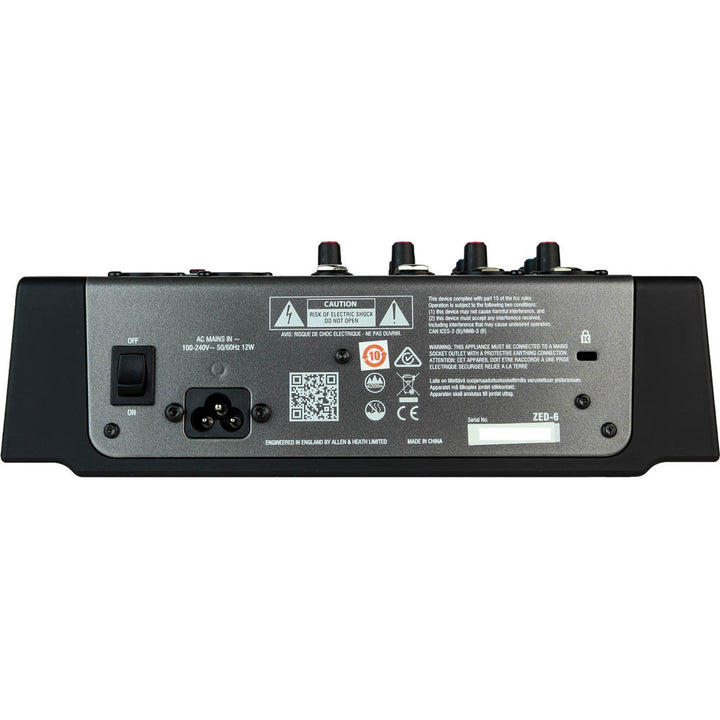

- Power: Internal PSU with IEC C5 connector
In the Box
- ZED-6 Mixer
- IEC C5 Mains Power Cable
- User Guide
