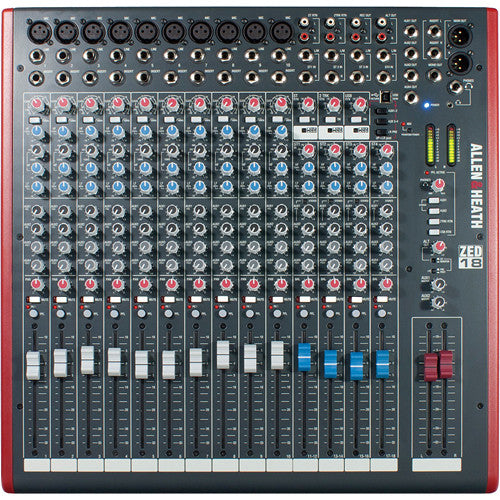

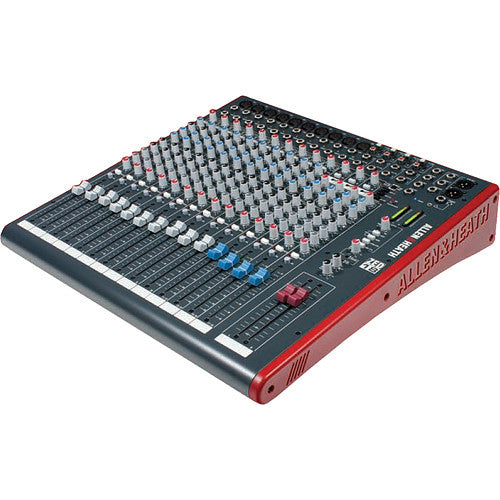

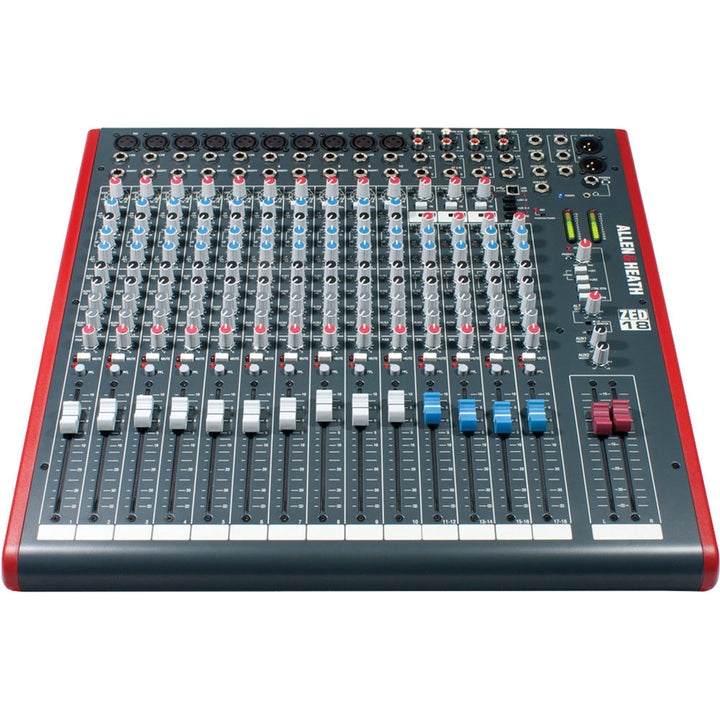

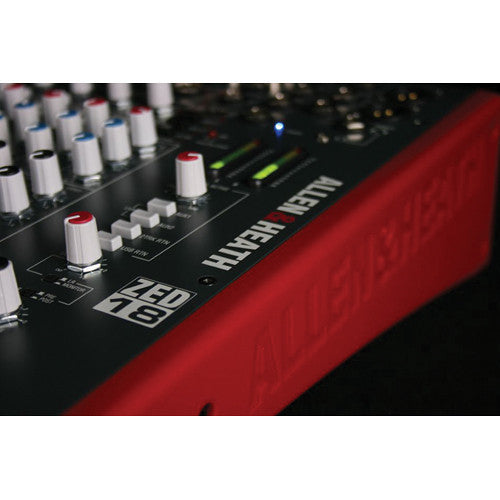

Allen & Heath ZED-18 18-Channel Analog Live Mixer

The Allen & Heath ZED-18 is a versatile live sound mixer with 10 mono mic/line channels and 4 stereo line channels, featuring 100mm ALPS faders and DuoPre preamps with 69dB gain range. With 4 configurable aux sends (aux 1 and 2 can be linked as a stereo pair), channel inserts on all 10 mono channels and the stereo bus, 3-band EQ with sweepable MusiQ mid, and a stereo USB interface, the ZED-18 suits medium venues, houses of worship, and rehearsal studios.

Inputs and Outputs

• 10 mono mic/line channels with XLR inputs (DuoPre, 69dB gain)
• 4 stereo line channels (1/4" TRS, RCA on ST2-ST4)
• 4 aux sends (2 pre-fade, 2 post-fade; aux 1&2 configurable as stereo)
• Channel inserts on all 10 mono channels and main stereo bus
• Main stereo XLR L/R, 1/4" mono output
• RCA alt outputs, RCA record outputs
• 1/4" + 3.5mm headphone outputs
• +48V global phantom power

EQ and Processing

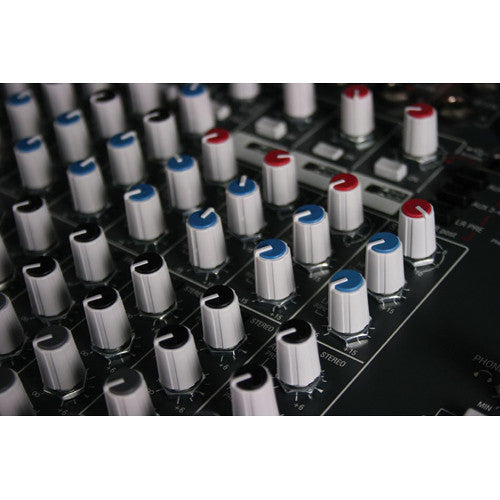

• 3-band EQ with sweepable mid (MusiQ) on mono channels
• 2-band EQ on stereo channels

Recording

• 2-in / 2-out USB 1.1 audio interface
• 16-bit resolution, 32/44.1/48 kHz sample rate
• Sonar LE included

Specifications

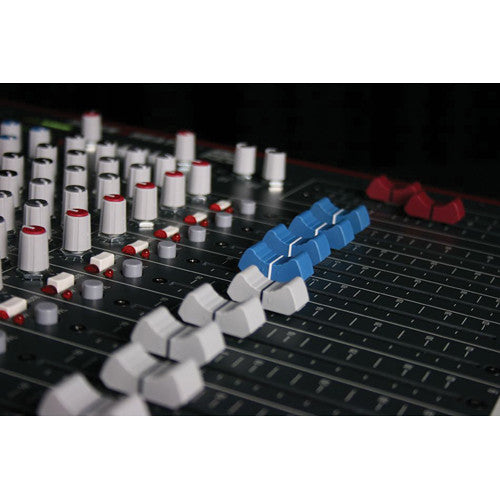

• Faders: 100 mm ALPS on all channels and masters

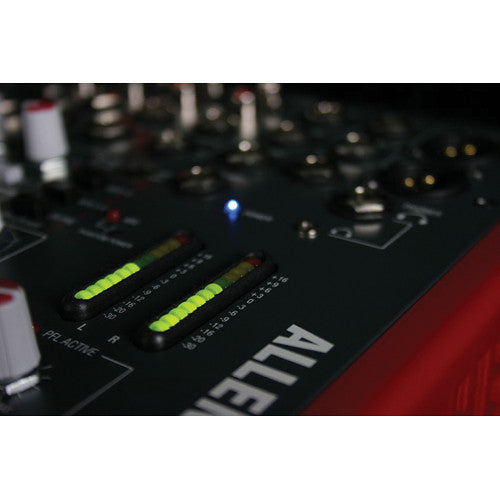

• Metering: 12-segment L/R peak meters
• Dimensions: 464 x 98 x 465 mm (18.3" x 3.85" x 18.3") W x H x D
• Weight: 8.5 kg / 18.7 lbs
• Rack Mount: Optional (ZED1802-RK19)

In the Box

• ZED-18 Mixer
• Mains Lead
• Type A-B USB Lead
• User Guide
• Sonar LE Install CD
