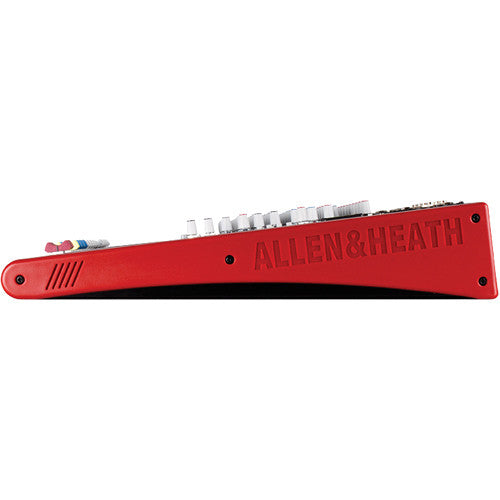

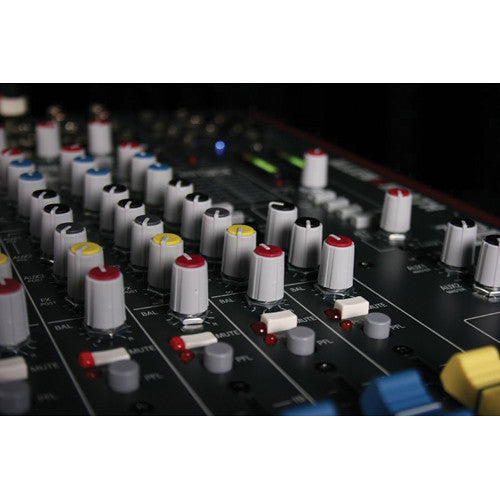

Allen & Heath ZED-16FX 16-Channel Analog Live Mixer

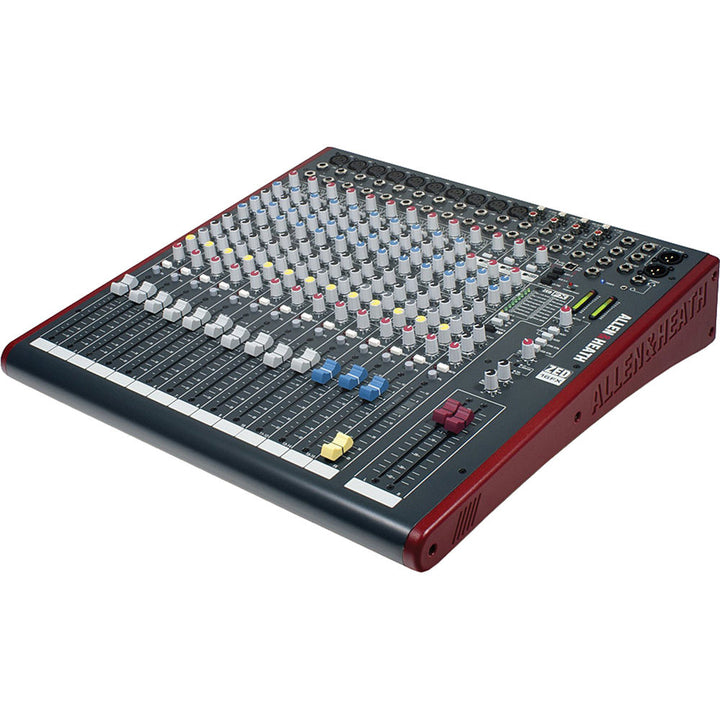

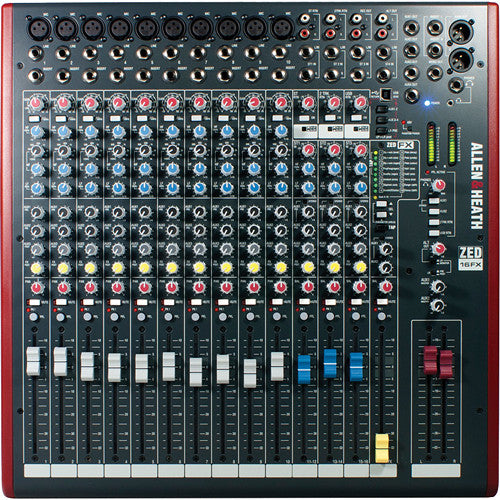

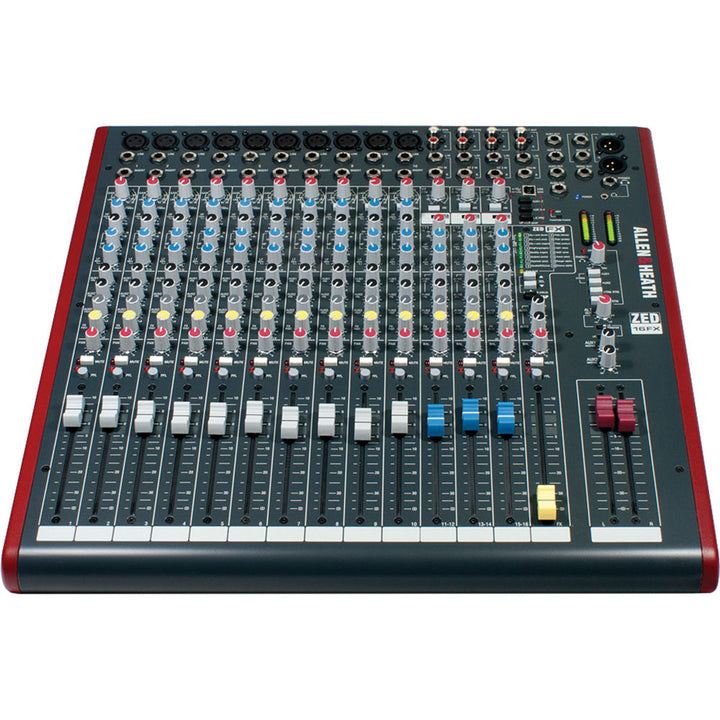

The Allen & Heath ZED-16FX is a full-size live sound mixer with 10 mono mic/line channels, 3 stereo line channels, 16 built-in effects, and 16 x 100mm ALPS faders. Featuring DuoPre preamps with 69dB gain range, 3-band EQ with MusiQ sweepable mid, 4 aux sends (including a dedicated internal FX send, with aux 1&2 configurable as stereo), channel inserts on all mono channels, and a stereo USB interface, the ZED-16FX provides comprehensive live mixing with onboard processing.

Inputs and Outputs

• 10 mono mic/line channels with XLR inputs (DuoPre, 69dB gain)
• 3 stereo line channels (1/4" TRS, some with RCA)

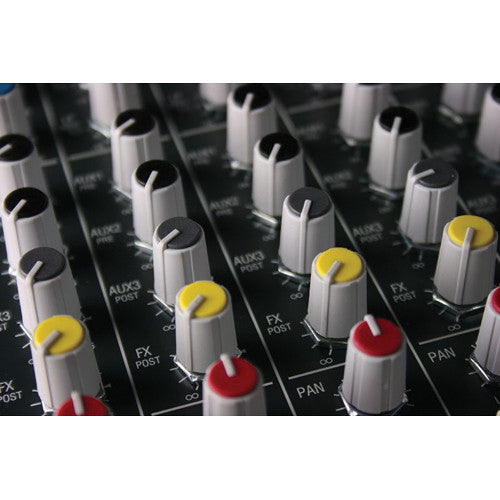

• 4 aux sends (2 pre-fade, 1 post-fade, 1 internal FX post-fade; aux 1&2 configurable as stereo)
• Channel inserts on all 10 mono channels and main stereo bus

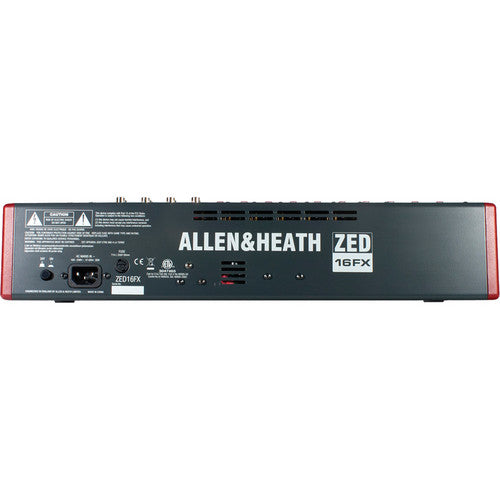

• Main stereo XLR L/R, 1/4" mono output
• RCA alt outputs, RCA record outputs
• 1/4" + 3.5mm headphone outputs
• +48V global phantom power

EQ and Processing

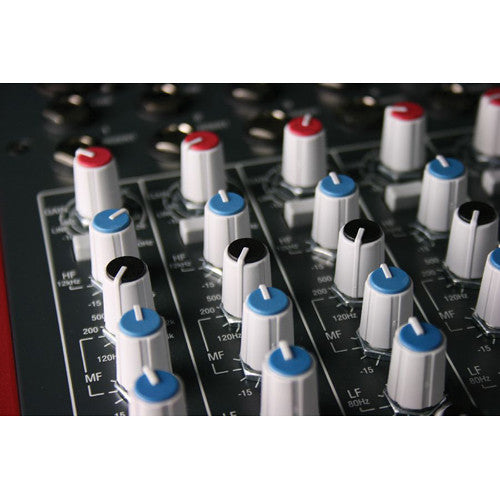

• 3-band EQ with MusiQ sweepable mid on mono channels
• 2-band EQ on stereo channels
• 16 built-in effects: reverbs, delays, chorus, flange

Recording

• 2-in / 2-out USB 1.1 audio interface
• 16-bit resolution, 32/44.1/48 kHz sample rate
• Sonar LE included

Specifications

• Faders: 16 x 100mm ALPS faders

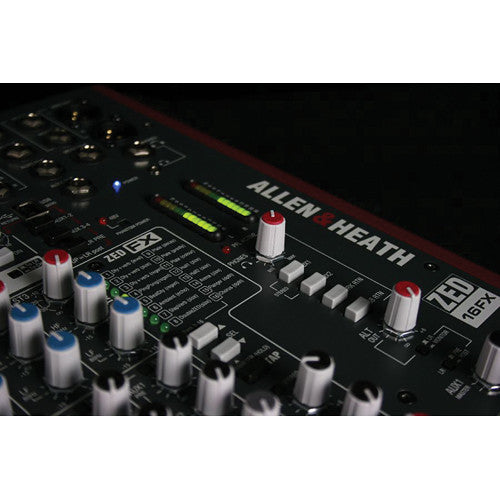

• Metering: 12-segment L/R peak meters
• Dimensions: 464 x 99 x 465 mm (18.3" x 3.9" x 18.3") W x H x D
• Weight: 8.5 kg / 18.7 lbs
• Rack Mount: Optional (ZED1802-RK19)

In the Box

• ZED-16FX Mixer
• Mains Lead
• Type A-B USB Lead
• User Guide
• Sonar LE Install CD
