Allen & Heath ZED-10 10-Channel Analog Mixer

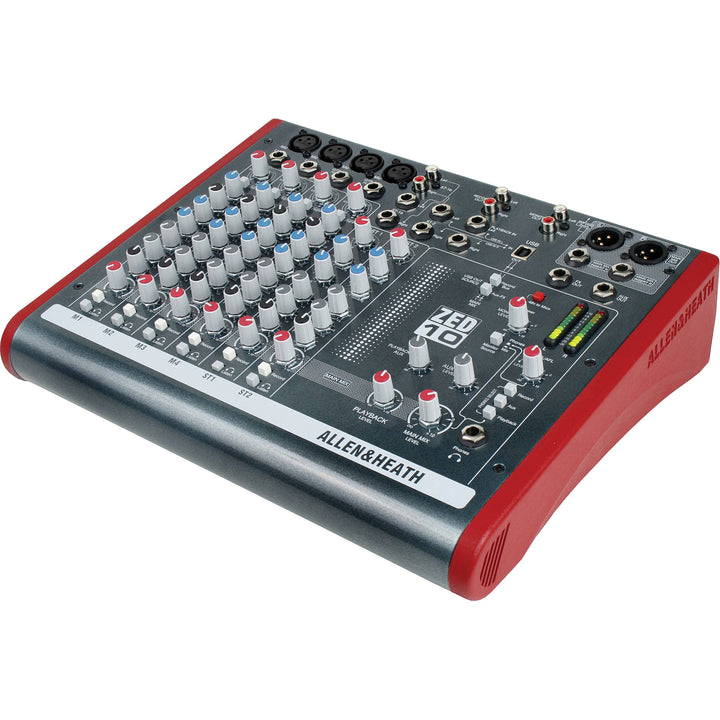

The Allen & Heath ZED-10 is a compact multipurpose mixer with 4 mono mic/line channels, 2 stereo line channels, and a stereo USB return. Built around Allen & Heath's DuoPre mic preamp design (from the MixWizard range), the ZED-10 features 3-band EQ with sweepable MusiQ mid on mono channels, 2 aux sends, a stereo USB interface for recording, and Hi-Z guitar inputs on channels 3-4. Rotary level controls keep the compact footprint minimal.

Inputs and Outputs

• 4 mono mic/line channels with XLR inputs (DuoPre preamps)

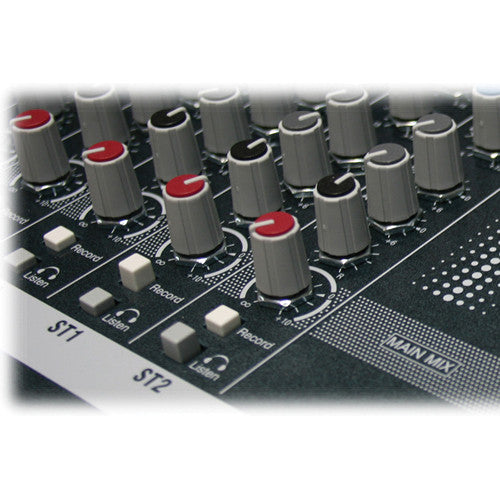

• 2 stereo line channels (1/4" TRS, ST1 also accepts RCA)
• Hi-Z instrument inputs on channels 3-4 (Class A FET high impedance)
• USB stereo return channel
• 2 aux sends (1 pre-fade, 1 post-fade)
• Main stereo output on XLR L/R with insert point
• RCA record outputs, RCA monitor outputs
• Stereo bus insert (send/return)

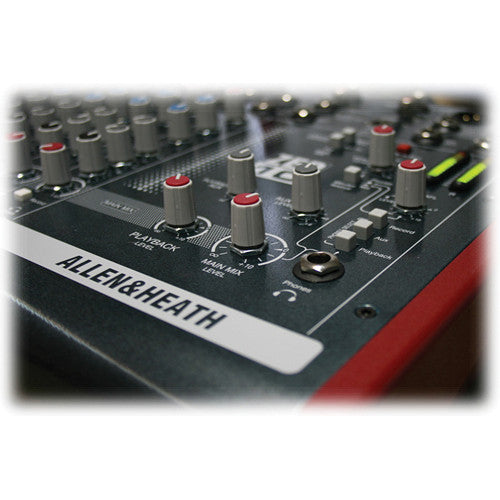

• 1/4" headphone output
• +48V global phantom power

EQ and Processing

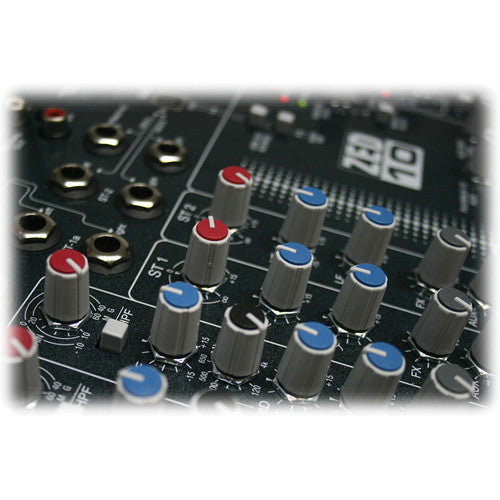

• 3-band EQ with sweepable mid (MusiQ) on mono channels
• 2-band EQ on stereo channels

Recording

• 2-in / 2-out USB 1.1 audio interface
• 16-bit resolution, 32/44.1/48 kHz sample rate

Specifications

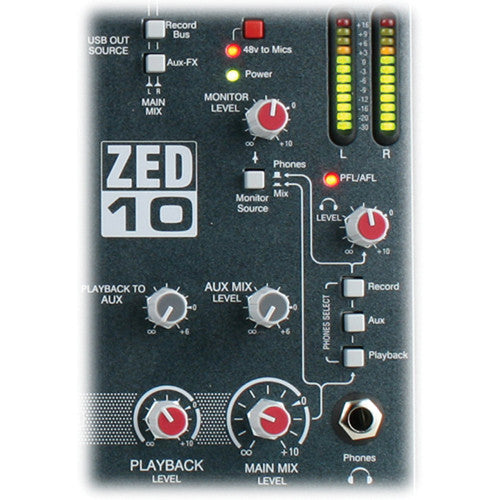

• Metering: 12-segment L/R peak meters

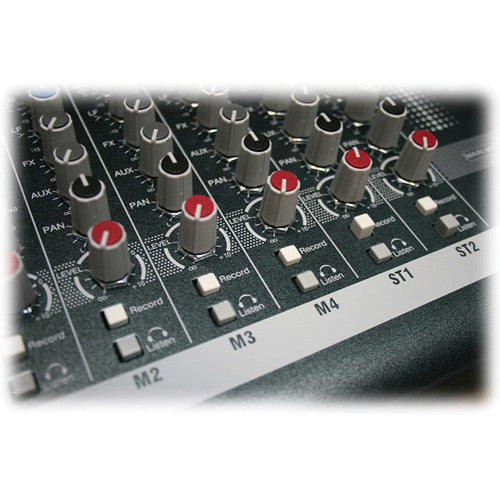

• Controls: Rotary level (no faders)
• Dimensions: 336 x 95 x 275 mm (13.2" x 3.7" x 10.8") W x H x D
• Weight: 3.2 kg / 7.0 lbs
• Rack Mount: Optional (ZED10-RK19)

In the Box

• ZED-10 Mixer
• Power Cable
• USB Cable
• User Guide
