2-Port Wireless Node with 5-Pin XLR & DMX

WIFI NET 2

Configuring WiFi NET 2 is a breeze through Ethernet using any standard web browser, whether you're on a Windows or macOS device.

Whether it's Ethernet LAN or WLAN, enjoy swift and effortless communication across your local network with support for DHCP or static IP addressing. Plus, with the convenience of built-in 2.4G WiFi and Power over Ethernet (PoE) capability, connectivity is seamless, ensuring you're always connected.

WiFi NET 2 serves as your go-to Art-Net and sACN to DMX NODE, effortlessly handling decoding, conversion, and node functionality with compatibility across any data source.

Featuring two DMX universes output and ruggedly built with two DMX OUT ports, all housed in a sleek housing, WiFi NET 2 is not just powerful but also built to withstand the rigors of professional use.

Specifications

• Features:

• Art-Net / sACN / DMX, 2 Port Node

• 2.4G Wifi

• Line Voltage or PoE powered

• DHCP or Static IP Address

• Configurable from web browser


• Protocols:

• DMX512

• RDM

• Art-Net

• sACN


• Physical:

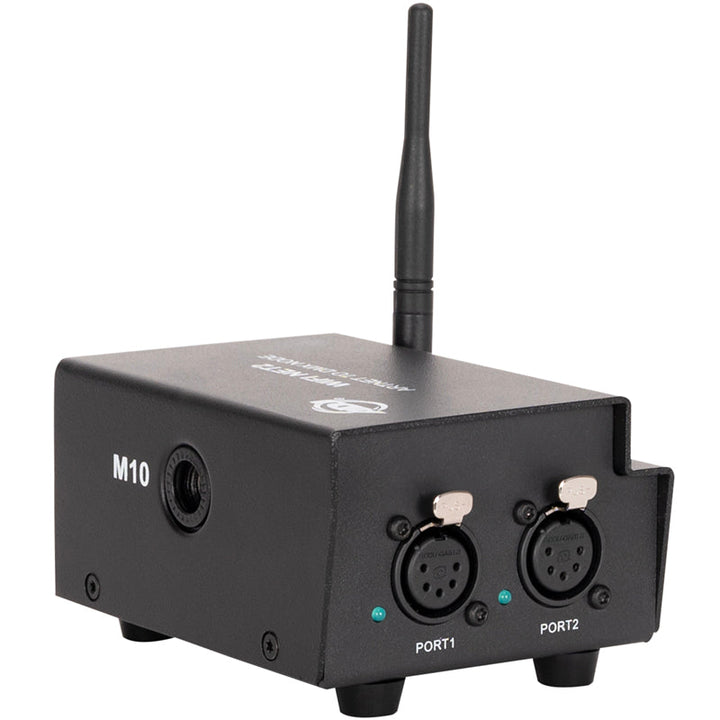

• M10 Thread for clamp / rigging

• Safety eyelet

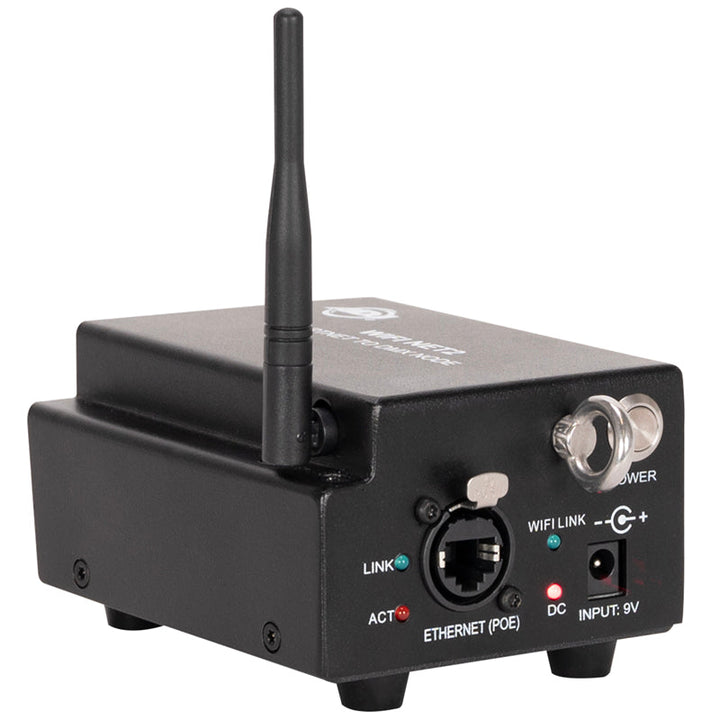

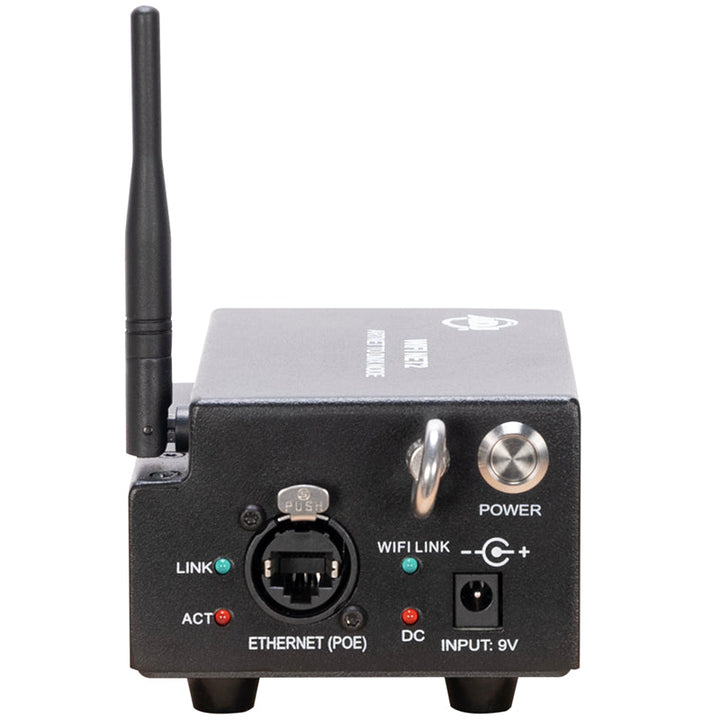

• 1x Indoor RJ45 Input

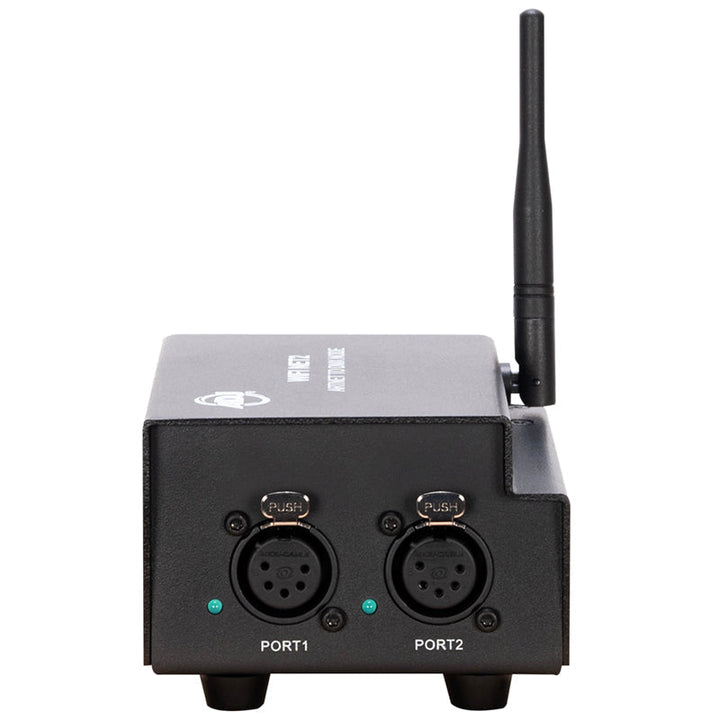

• 2x 5-pin XLR Outputs


• Dimensions Weight:

• Length: 3.48" (88.50mm)

• Width: 5.06" (128.55mm)

• Height: 2.46" (62.5mm)

• Weight: 1.23lbs. (0.56kg)


• Power:

• 9VDC and POE

• POE 802.3af

• Power: DC9V-12V 300mA min.

• POE Power: 15W

• Power Consumption: 2W @ 120V and 2W @ 230V

• Thermal:

• Ambient Operational Temperature: -4°F to 104°F (-20°C to 40°C)

• Humidity: <75%

• Storage Temperature: 77°F (25°C)


• Certifications IP Rating:

• CE
• cETLus (Control # 5014475)
• CB
• FCC

• IP20


• Included Accessories:

• 9V Power Supply


• Specifications subject to change without notice.
