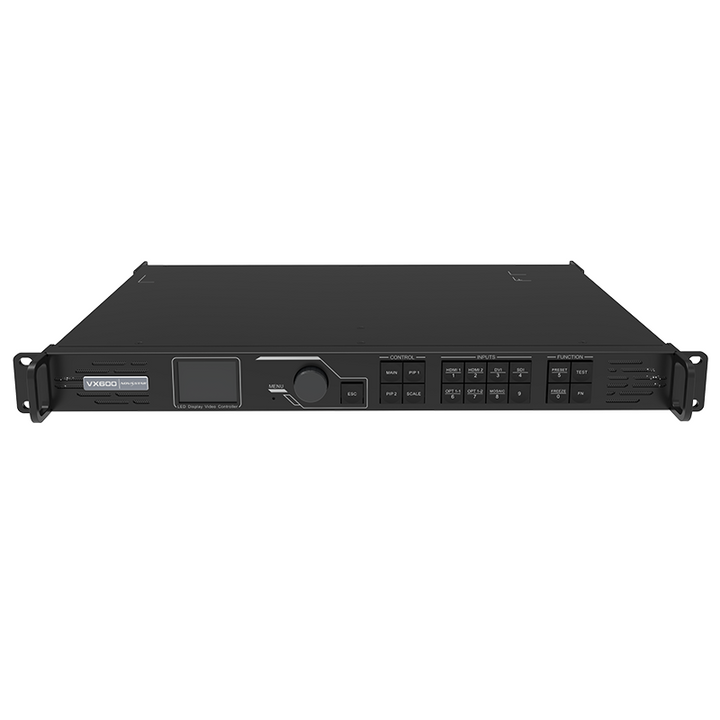

LED Display Video Controller/Processor

VX600

The VX600 is capable of receiving a variety of video signals and processing high-resolution images. In addition, the device features stepless output scaling, low latency, pixel-level brightness and chroma calibration and more, to present you with an excellent image display experience.

What's more, the VX600 can work with NovaStar's supreme software NovaLCT and V-Can to greatly facilitate your infield operations and control, such as screen configuration, Ethernet port backup settings, layer management, preset management and firmware update.

Thanks to its powerful video processing and sending capabilities and other outstanding features, the VX600 can be widely used in applications such as medium and high-end rental, stage control systems and fine-pitch LED screens.

Specifications

• Loading Capacity

• 3.9 million pixels

• Max Width Height

• Width 10,240 pixels x Height 8,192 pixels


• Layers

• 3 Layers

• Inputs

• 1x 3G SDI (IN LOOP)

• 1x HDMI1.3 (IN LOOP)

• 1x HDMI1.3

• 1x DVI (IN LOOP)

• 1x OPT


• Outputs

• 6x RJ45

• 2x 10G OPT

• 1x HDMI1.3 (For Monitor or Preview)


• GENLOCK (IN LOOP): Yes
• Low Latency: Yes
• Input Source Backup: Yes
• Bypass Mode: Yes
• Fiber Converter Mode: Yes
• Electrical Parameters

• Power connector 100–240V~, 1.5A, 50/60Hz

• Rated power consumption 28 W


• Operating Environment

• Temperature –10°C to +60°C

• Humidity 20% RH to 90% RH, non-condensing


• Storage Environment

• Temperature –20°C to +70°C

• Humidity 10% RH to 95% RH, non-condensing


• Physical Specifications

• Dimensions 483.6 mm × 351.2 mm × 50.1 mm

• Net weight 4 kg

• Gross weight 6.3 kg


• Packing Information
• Accessories

• 1x Power cord

• 1x HDMI to DVI cable

• 1x USB cable1x Ethernet cable

• 1x HDMI cable

• 1x Quick Start Guide

• 1x Certificate of Approval

• 1x Customer Letter

• 1x Safety Manual

• Packing box 565 mm × 175 mm × 450 mm


• Certifications

• TBD

• Noise Level (typical at 25°C/77°F)

• 45 dB (A)
