Description
VX16s

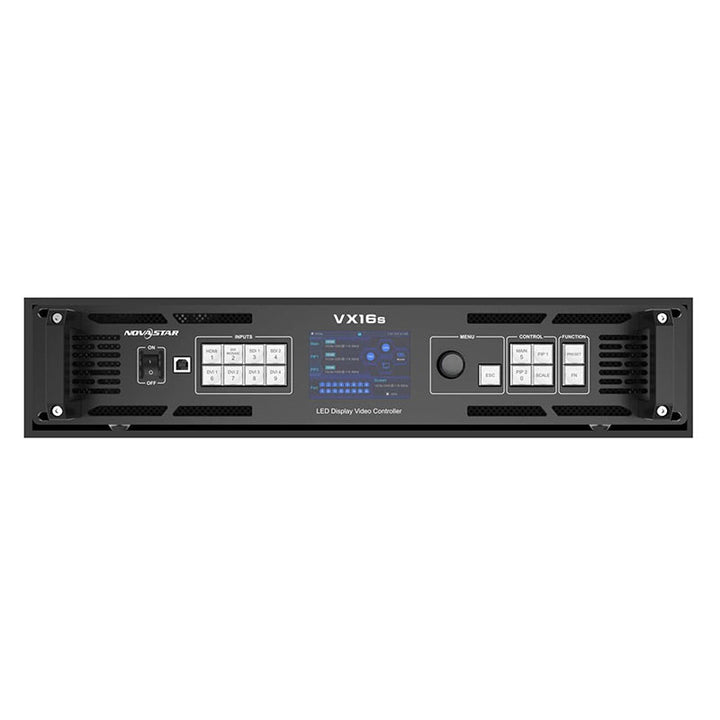

The VX16S video processor is Novastar’s new all-in-one video controller that integrates video processing, video control and led screen configuration into one unit.Together with Novastar’s V-Can video control software, it enables richer image mosaic effects and easier operations.
The VX16s Novastar led controller supports a variety of video signals, Ultra HD 4K×2K@60Hz image processing and sending capabilities, as well as up to 10,400,000 pixels.
Thanks to its powerful image processing and sending capabilities, the Nova VX16S video screen controller can be widely used in applications such as stage control systems, conferences, events, exhibitions, high-end rental and fine-pitch displays.
Specifications

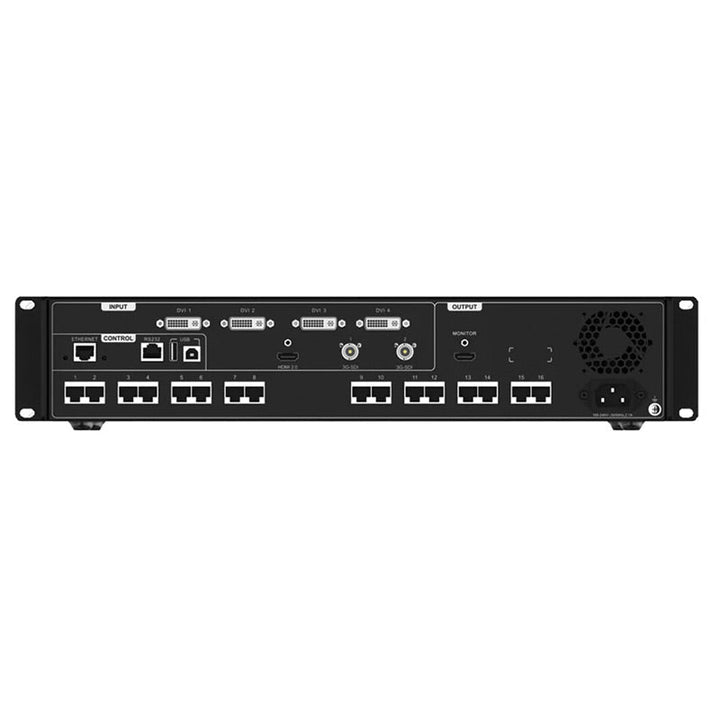

Industry-standard input connectors:- 2x 3G-SDI
- 1x HDMI 2.0
- 4x SL-DVI
- 1x 4K×2K main layer 2x 2K×1K PIPs (PIP 1 and PIP 2)
- Adjustable layer priorities
- Up to 4 DVI inputs can form an independent input source, which is DVI Mosaic.
- Supported frame rates: 23.98 Hz, 29.97 Hz,47.95 Hz, 59.94 Hz, 71.93 Hz and 119.88 Hz.
- Supports 3D display effect on the LED screen.The device output capacity will be halved after the 3D function is enabled.
- Three scaling options are pixel-to-pixel, full screen and custom scaling.
- Up to 4 devices can be linked to load a super large screen when used together with the video distributor.
- Easy device operation and control through VCan
- Up to 10 presets can be saved for future use.
- Custom EDID and standard EDID supported
- In backup mode, when the signal is lost or the Ethernet port fails on the primary device, the backup device will take over the task automatically.
-
Electrical Specifications
- Power connector:100–240V~, 50/60Hz, 2.1A
- Power consumption:70 W
- Power connector:100–240V~, 50/60Hz, 2.1A
- Temperature:0°C to 50°C
- Humidity:20% RH to 85% RH, non-condensing
- Temperature:0°C to 50°C
- Temperature:–20°C to +60°C
- Humidity:10% RH to 85% RH, non-condensing
- Temperature:–20°C to +60°C
- Dimensions:482.6 mm x 372.5 mm x 94.6 mm
- Net weight:6.22 kg
- Gross weight:9.78 kg
- Dimensions:482.6 mm x 372.5 mm x 94.6 mm
- Carrying case:530.0 mm x 420.0 mm x 193.0 mm
- Accessories 1x European power cord / 1x US power cord / 1x UK power cord / 1x Cat5e Ethernet cable / 1x USB cable / 1x DVI cable / 1x HDMI cable / 1x Quick Start Guide / 1x Certificate of Approval
- Packing box:550.0 mm x 440.0 mm x 215.0 mm
- Carrying case:530.0 mm x 420.0 mm x 193.0 mm
