1.95mm LED Corner Panel - 9.8 x 19.68in

VS1C

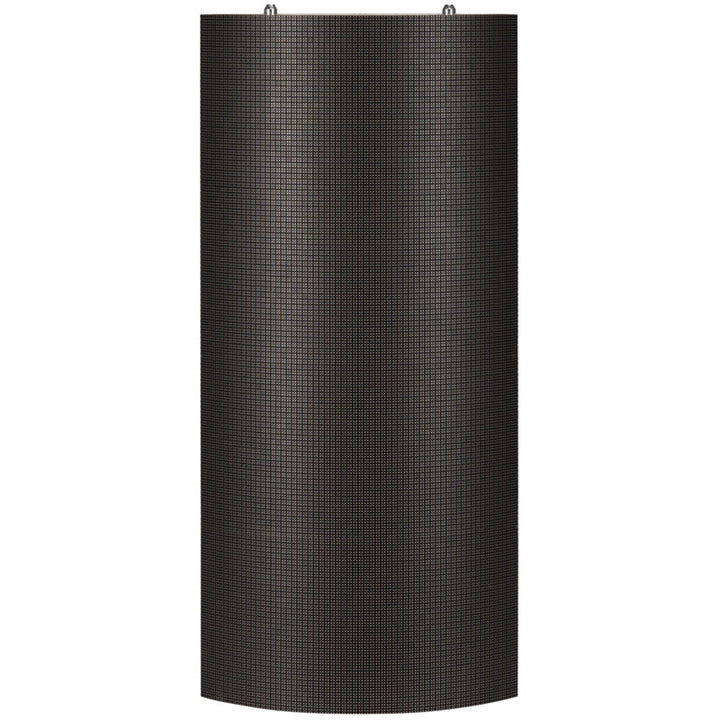

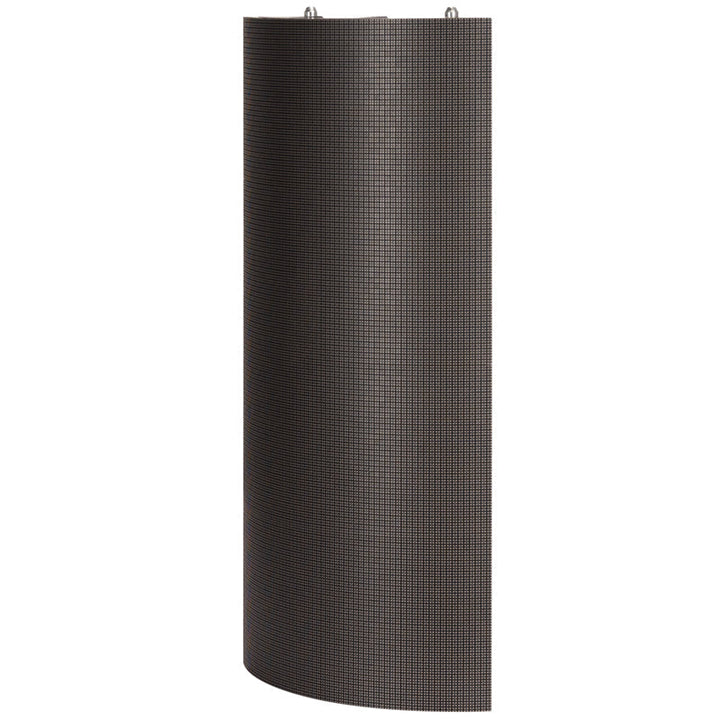

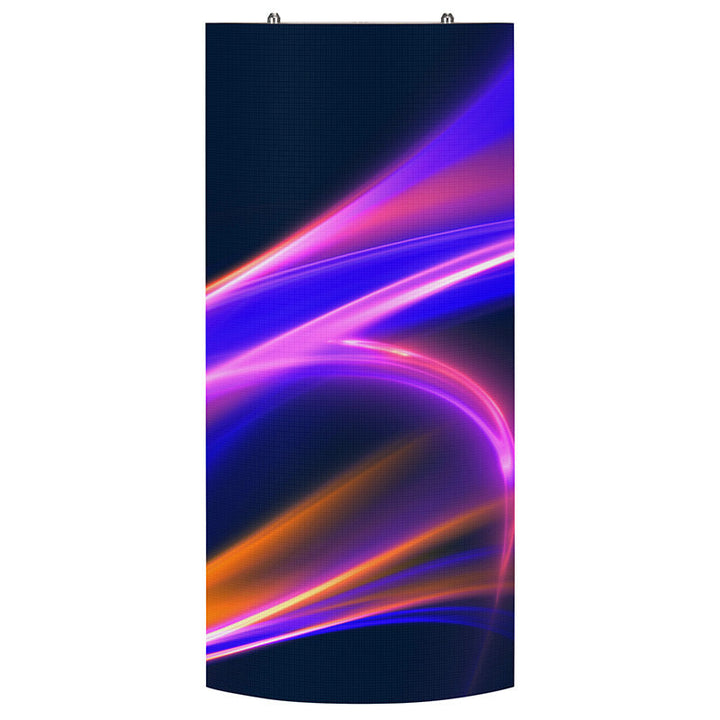

The ADJ VS1C is a 1.95mm curved LED panel section designed as a seamless accessory for the VS1 panel. Perfect for creating 90-degree corners, it adds a new dimension of creative flexibility to LED displays for stages, events, concerts, and permanent architectural designs.

Featuring a 4-in-1 MiniLED configuration and a pixel density of 256x256, the VS1C delivers stunning visuals with 1500 NITS brightness, a high contrast ratio of 5000:1, and a wide 110° viewing angle. The panel is rear serviceable, with four easily replaceable modules and an independent power box for simplified maintenance.

Its quick-lock system allows effortless assembly with VS1 panels, enabling unique corner configurations. With a refresh rate of 3840Hz and compatibility with Nova Star’s control systems, the VS1C ensures smooth performance and vibrant image quality. Compact, lightweight, and easy to handle, the VS1C is an ideal solution for creative LED video panel setups.

Specifications

SPECIFICATIONS:

• • Pixel Pitch: 1.95mm (0.07”)

  • LED Configuration: MiniLED 4-in-1

  • Pixel Density: 128x256; 262144 per square meter

  • Size : 9.8” x 19.68” x 3.86” / 250 x 500 x 98

  • Module Quantity: 4

  • Weight: 9.5 lbs. / 4.3 kg.


FEATURES:

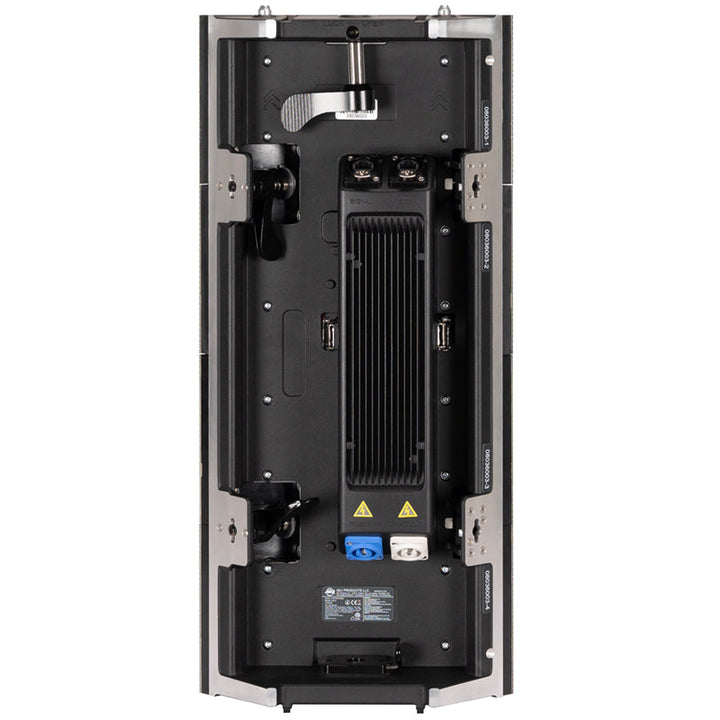

• • Rear serviceable: Video modules on each panel can be easily replaced.

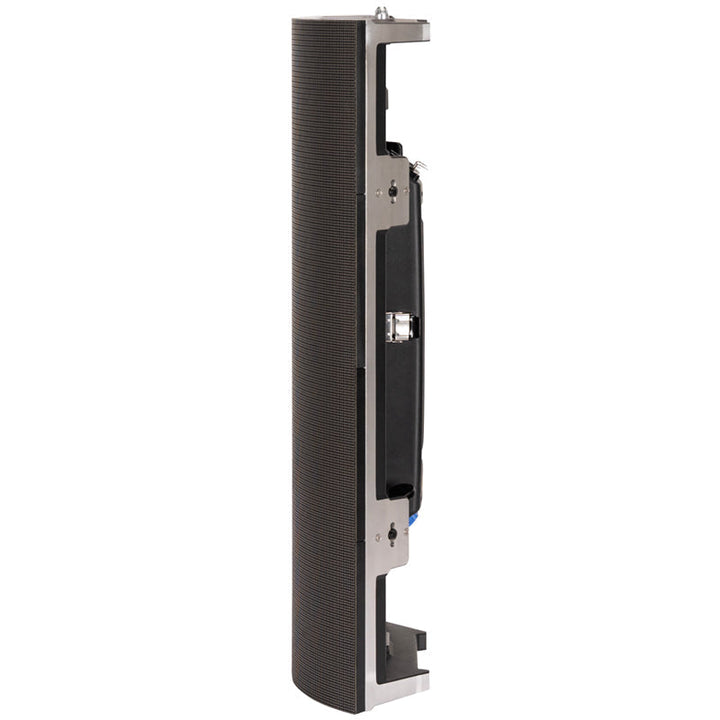

  • The box is equipped with quick locks on the top, bottom, left, and right sides, enabling quick assembly with the VS2 panel.

  • Each panel contains four easily replaceable modules after full box maintenance.

  • The power box can be disassembled and assembled independently, ensuring simple and convenient installation and maintenance.


MECHANICAL RATINGS:

• • Surface Flatness: Gaps<0.2mm


OPTICAL RATINGS:

• • Brightness: 1500 NITS

  • View Angle: Based on the center of the lamp bead, Horizontal 110°/Vertical 110°

  • Gray Scale: ≥14-bit

  • Display Color: 256

  • Brightness Adjustment: 0~100% 100 Levels

  • Contrast ratio: 5000:1

  • Processing: 14-bit


POWER SUPPLY:

• • Operation Power: 100~240V 50-60Hz

  • Max. Power Consumption: 75W/per panel

  • Ave. Power Consumption: 30W/per panel

  • Connections Power/Data: PowerLock In/Out; DataLock In/Out


CONTROL SYSTEM:

• • Control Mode: Nova Star Synchronous System with Control via DVI

  • Frame Update Frequency: 50-75Hz

  • Scan Mode: 1/21

  • Refresh Rate: 3840Hz

  • Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI

  • Control Distance: Ethernet Cable <120m or Fiber Optic>120m

  • Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280

  • Brightness Correction: Pixel, Module, Cabinet


ENVIRONMENTAL:

• • Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No Condensation)

  • Operating Life / MTBF: 50,000 Hours / 5,000 Hours

  • Protection Level: IP20 (Front and Back)

  • Out of Control Rate: <0.02%

  • Listings: cETLus (Pending)


OPTIONAL ACCESSORIES FOR VS1C:

• • Novastar VX4S: Video Processor

  • Novastar MCTRL-300: Video Processor

  • Novastar Nova Pro HD: Video Processor

  • Arkaos Media Master: Video Software

  • Arkaos GrandVJ 2.0: Video Software


CABLES:

• • Cabinet to Cabinet Data Link Cables (Ethernet Locking Connectors)

  • Power Locking Link Cables

  • Power Locking Main Power Cables


Certifications:

• • cETLus (Pending)


*Specifications are subject to change without notice.
