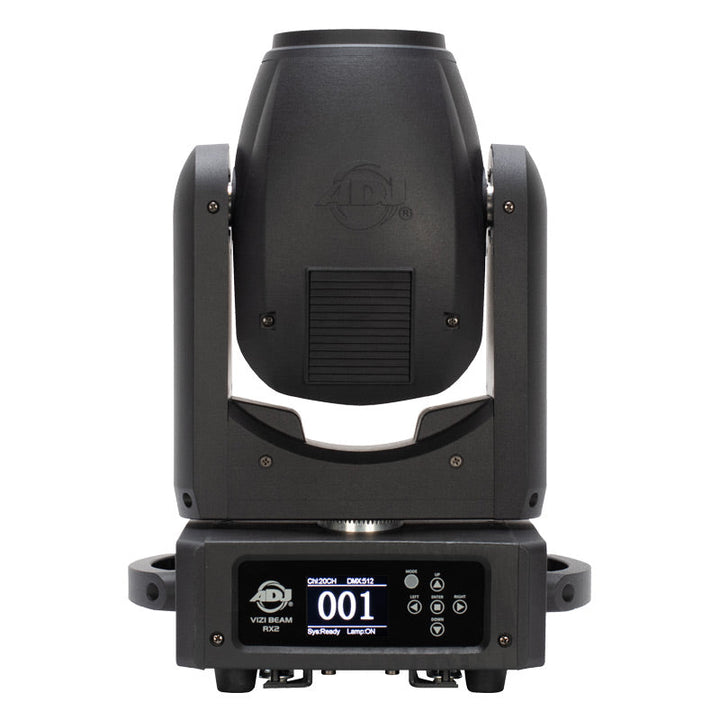

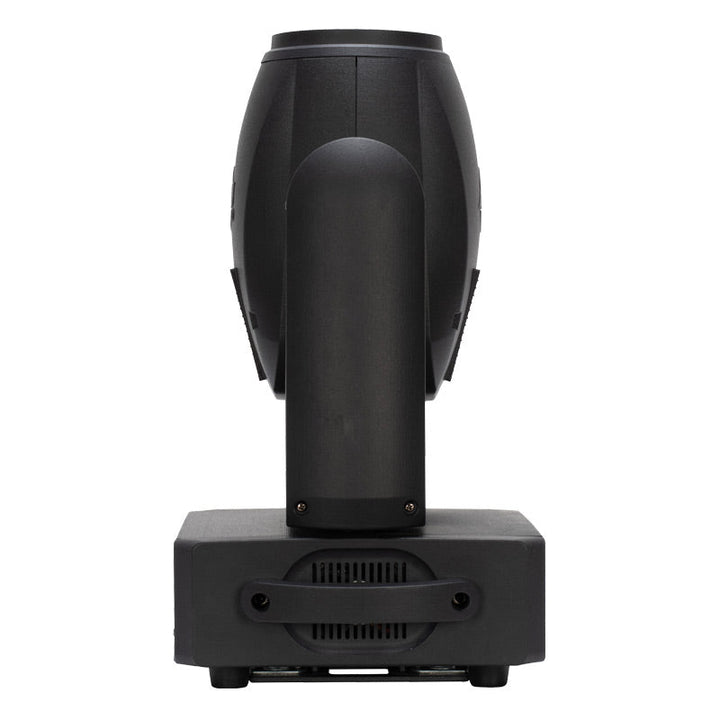

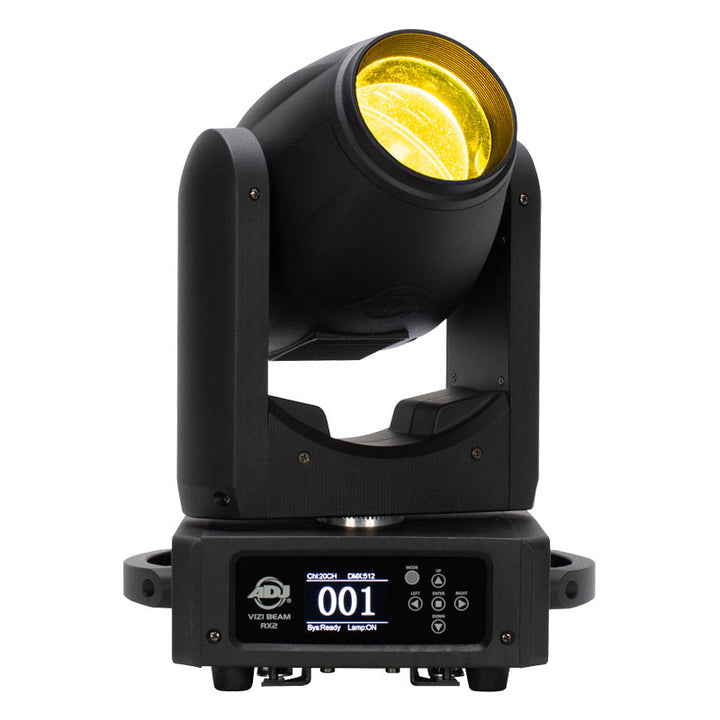

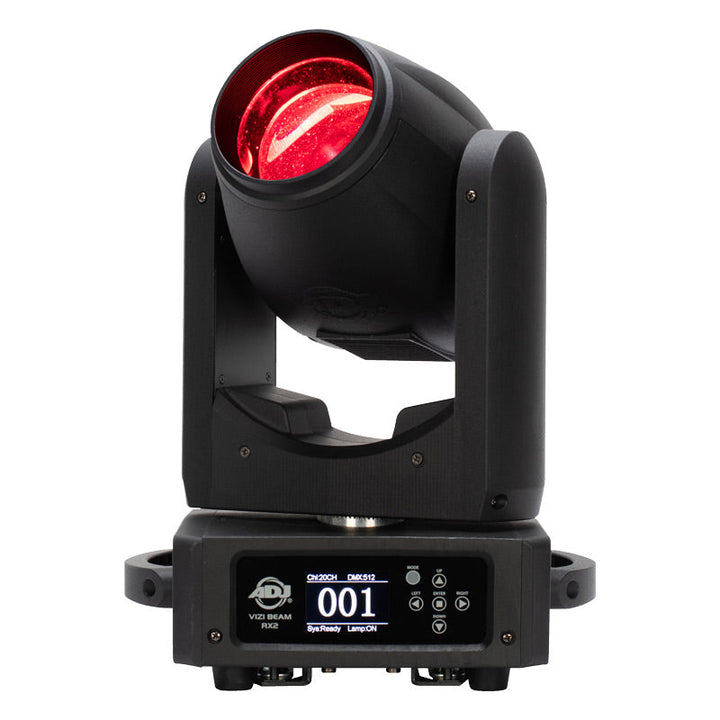

Moving Head (Beam) with 100W Osram Sirius HRI

Vizi Beam RX2

AVAILABLE NOW FROM ADJ USA Elevate your lighting performance with the ADJ Lighting Vizi Beam RX2, a compact and quick moving head beam fixture designed for the modern lighting designer. Featuring a vigorous 100W Osram Sirius HRI discharge lamp with a 6,000-hour lifespan, this potent fixture delivers stunning visuals with a precise 2-degree beam angle, as well as, high speed 3-phase pan/tilt motors for maximum performance. Vizi Beam RX2 is designed for live events and venues looking for a small footprint lighting fixture that creates high impact lightshow.

Unlock a wealth of features including on-board wireless DMX, two prism wheels (16-facet circular & 4-facet linear), a frost effect, motorized focus (with 16-bit fine focus), along with a 14-color dichroic wheel that includes CTO (3200K), CTB (4500K & 9000K) & UV filters) and 15 static GOBOs + open (3 GOBOs are beam reducers).

The fixture boasts advanced features, including 2 rotating prisms (16-facet circular & 6-facet linear + prism overlay), a frost filter for creating wash effects, and pan/tilt locks for added stability during transportation and rigging. With a color LCD display, 0-100% smooth dimming, and various strobe speeds, the Vizi Beam CMY offers intuitive control.

Designed for convenience, it features outdoor-rated In/Out locking connections for power daisy-chaining, 5-pin In/Out DMX sockets and a color LCD display with 4-button function menu. The Vizi Beam RX2 is a versatile and reliable lighting solution for any high-octane event.

Click here to read the Vizi Beam RX2 press release.

Specifications

Light Source:

• • OSRAM Sirius HRI 100W Discharge Lamp (6,000 hr.)

  • Color temperature: 9000K (+/- 300K)


Features:

• • On-Board Wireless DMX

  • Motorized Focus + 16-bit fine focus

  • 2-degree beam angle

  • Frost Filter to create wash effect

  • High quality glass lens

  • 2 Rotating prisms:

  • 0-100% smooth dimming

  • Various strobe speeds

  • OTA, wireless, firmware updates

  • Fan cooled


Color Wheel:

• • 14 dichroic colors + white (Includes CTO (3200K), CTB (4500K 9000K) UV filters)

  • Indexable color wheel for split colors


GOBO Wheel:

• • 15 static GOBOs + open (3 GOBOs are beam reducers)

  • GOBO Shake Effect


Prism Wheels:

• • 2 Rotating prisms

  • 16- facet circular and 4-facet linear prisms


Control:

• • Protocols: DMX512 RDM

  • Control Mode: DMX512 Manual (On-board Controls)

  • 2 DMX Channel Modes: 16/20 Channels

  • Aria X2 Wireless Management / DMX System
  • Color LCD display with 4-button function menu

  • 0-100% smooth dimming

  • Various strobe speeds

  • With Wired Digital Communication Network


Pan/Tilt:

• • Pan: 540 degrees (plus 16-bit fine pan)

  • Tilt: 270 degrees (plus 16-bit fine tilt)

  • 3-phase, High Speed, Pan/Tilt motors

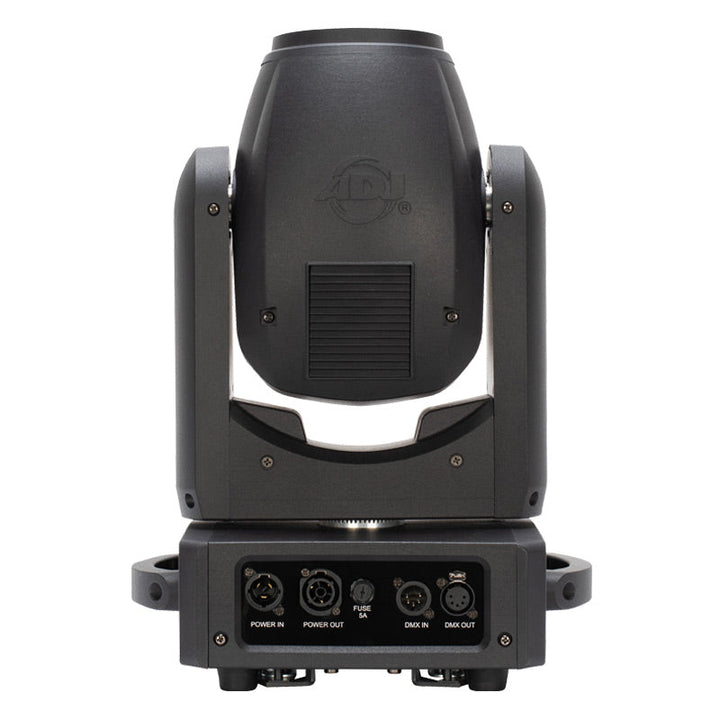

Connections:

• • DMX Connections: 5-pin DMX In/Out (Data link max: 32 fixtures)

  • Power Connections: Outdoor locking In/Out connections to daisy chain power


Electrical:

• • Multi-voltage operation: 100-240V, 50/60Hz

  • Max power consumption: 168W (@120V), 157W (@230V)

  • Fuse Protected: 3.15A

Dimensions Weight:

• • Dimension: 9” (L) x 12” (W) x 16.4” (H) (230 x 304 x 416mm)

  • Weight: 21.8 lbs. / 9.9 kg.


Approvals / Ratings

• • CE

  • cETLus (Control # 5028947)

  • FCC

What’s Included:

• • 2x Omega Brackets (107 Type)

  • 2M, outdoor locking 14AWG power cord


Road Cases:

• • QRC MH: Quad Road Case
• DRC MH: Dual Road Case

Specifications are subject to change without notice.
