Moving Head (Beam) with 310W Osram Sirius HRI

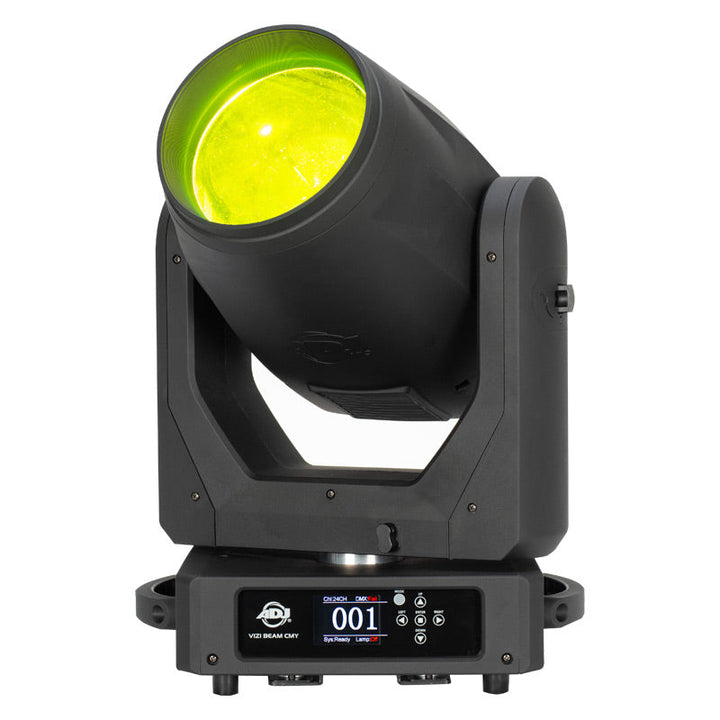

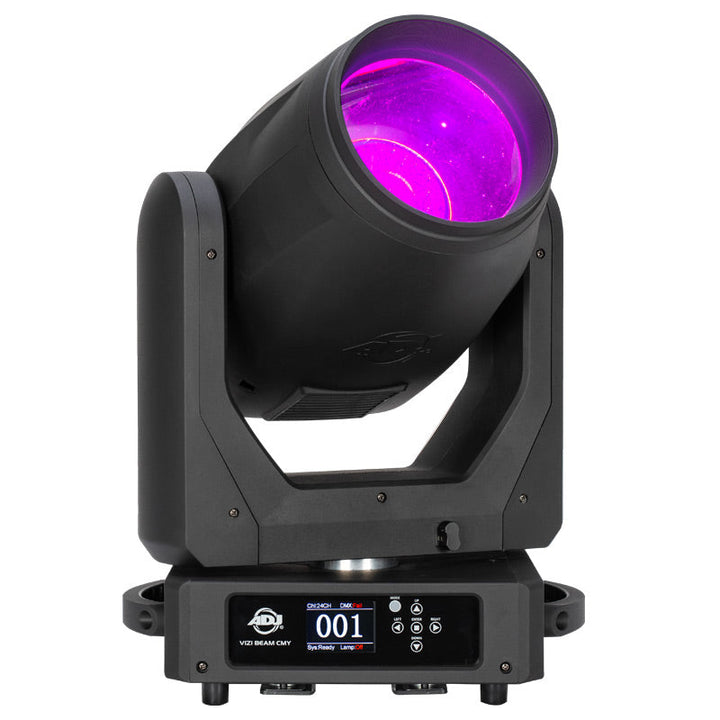

Vizi Beam CMY

Elevate your lighting design with the ADJ Lighting Vizi Beam CMY, a cutting-edge moving head beam fixture designed for the modern lighting designer. Featuring a powerful 310W Osram Sirius HRI discharge lamp with a 6,000-hour lifespan, this potent fixture delivers stunning visuals with a precise 2-degree beam angle, as well as, high speed 3-phase pan/tilt motors for maximum performance.

Unlock a spectrum of possibilities with CMY color mixing, paired with a 14-color dichroic wheel that includes CTO (3200K), CTB (9000k) & UV filters). In addition, the fixture offers a versatile GOBO wheel loaded with 17 static patterns (including 4 are beam reducers) and a dynamic GOBO shake effect. Users can also enjoy the flexibility of on-board wireless DMX, motorized focus, and 16-bit fine focus for meticulous control.

The fixture boasts advanced features, including 2 rotating prisms (16-Facet circular & 6-Facet linear + prism overlay), a frost filter for creating wash effects, and pan/tilt locks for added stability. With a color LCD display, 0-100% smooth dimming, and various strobe speeds, the Vizi Beam CMY offers intuitive control. Two Vizi Beam CMY fixtures fit perfectly into the ADJ DRC MHX road case.

Designed for convenience, it features outdoor-rated locking connections for power daisy-chaining and 5-pin DMX sockets. With multi-voltage operation plus ETL and CE approval, the Vizi Beam CMY is a versatile and reliable lighting solution for any event or venue. Enhance your lighting experience with the Vizi Beam CMY – where innovation meets performance.

Click here to read the Vizi Beam CMY press release.

Specifications

• • OSRAM Sirius HRI 310W PRO Discharge Lamp (6,000 hr.)

  • Color temperature: 7850K (+/- 500K)

  • CRI: 86 (+/- 5)


• • CMY Color Mixing

  • On-Board Wireless DMX

  • Motorized Focus + 16-bit fine focus

  • 2-degree beam angle

  • Frost Filter to create wash effect

  • High quality glass lens

  • 2 Rotating prisms:

  • 0-100% smooth dimming

  • Pan/Tilt locks

  • Various strobe speeds

  • OTA, wireless, firmware updates

  • Fan cooled


• • 14 dichroic colors + white (Includes CTO (3200K), CTB (9000k) UV)

  • Indexable color wheel for split colors

  • Separate Multi-Color Effect


• • 17 static GOBOs + open (4 GOBOs are beam reducers)

  • GOBO Shake Effect


• • 2 Rotating prisms

  • 16 facet circular and 6 facet linear prisms

  • Prisms Overlay


• • Protocols: DMX512 RDM

  • Control Mode: DMX512 Manual (On-board Controls)

  • 2 DMX Channel Modes: 20/24 Channels

  • Aria X2 Wireless Management / DMX System
  • Color LCD display with 4-button function menu

  • 0-100% smooth dimming

  • Various strobe speeds

  • With Wired Digital Communication Network


• • Pan: 540 degrees (plus 16-bit fine pan)

  • Tilt: 270 degrees (plus 16-bit fine tilt)

  • 3-phase, High Speed, Pan/Tilt motors


• • DMX Connections: 5-pin DMX In/Out (Data link max: 32 fixtures)

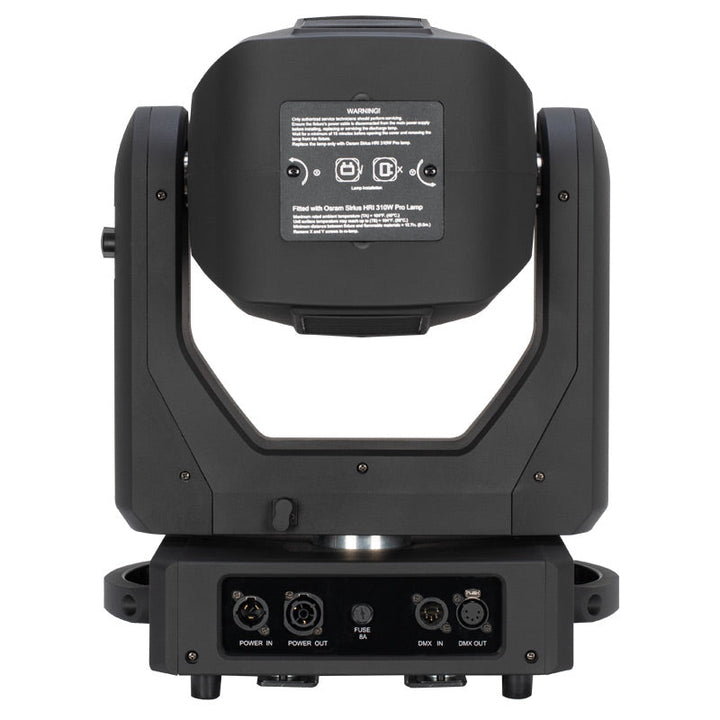

  • Power Connections: Outdoor locking In/Out connections to daisy chain power


• • Multi-voltage operation: 100-240V, 50/60Hz

  • Max power consumption: 410W (@120V), 390W (@230V)

  • Fuze Protected: 6.5A

• • Dimension: 9.8” (L) x 14.3” (W) x 21.1” (H) / 248 x 364 x 536mm

  • Weight: 41.2 lbs. / 18.7 kg.


• • CE

  • cETLus (Control # 5028947)

  • FCC

• • 2x Omega Brackets (107 Type)

  • 2M, outdoor locking 14AWG power cord


• • DRC MHX - Dual Moving Head Road Case
  • Quick Rig Clamp

  • Quick Rig Clamp BLK
  • Pro-Clamp
  • Accu-Cable Tour Link 5P15 - 15ft. 5-pin male/female professional grade DMX Cable
  • SIP152 - 16ft., IP65-Rated male to female locking power cord
